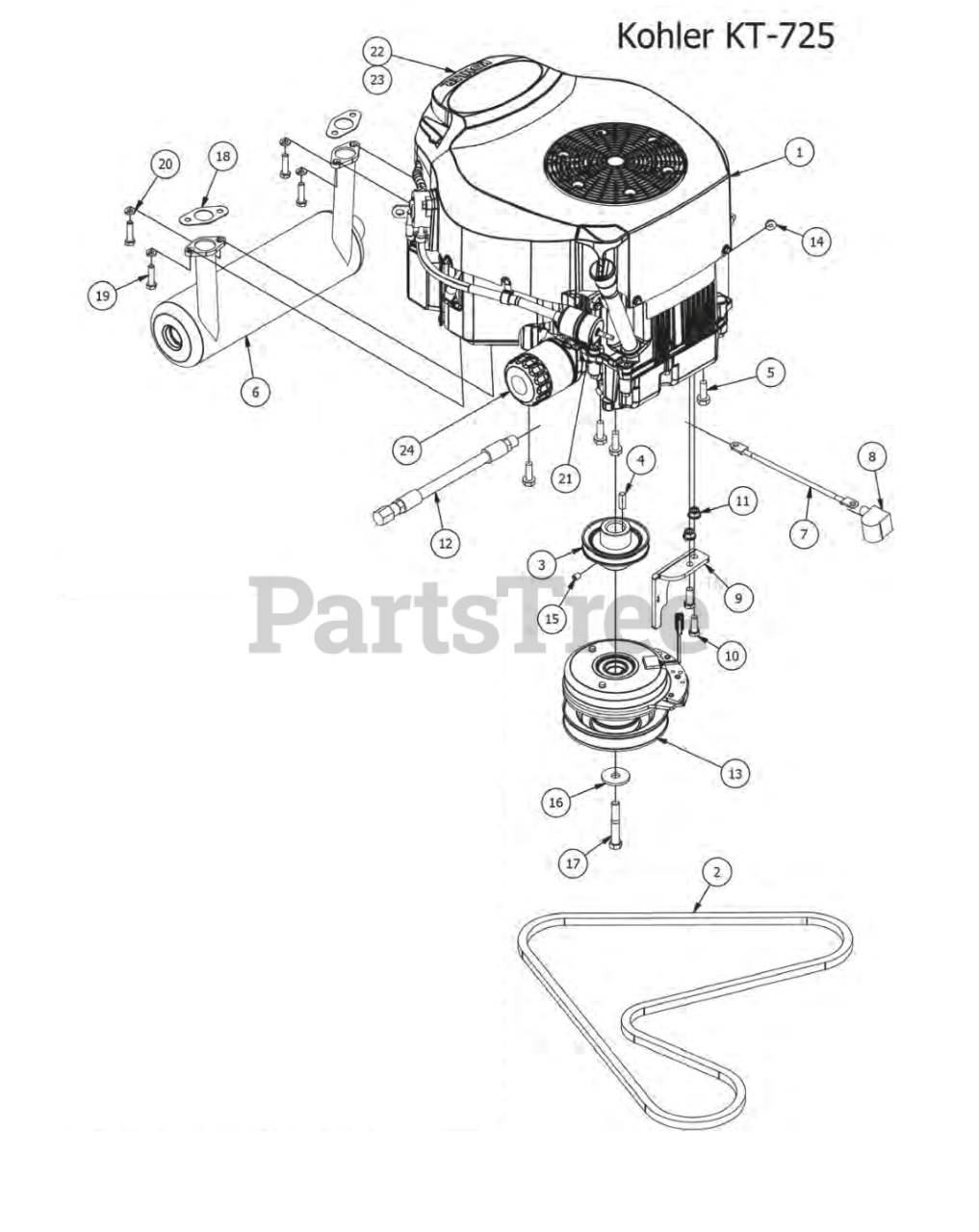

MZ - Bad Boy Zero-Turn Mower (2015) Kohler KT - 725 Parts Diagram

Zero-Turn Mower

Kohler KT - 725 Parts Diagram

  • Title

1

Bad Boy 015-2015-00

Kohler KT-725

$2050.99

$

Usually ships in 4-7 days

0

2

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

3

Bad Boy 033-2010-00

3-3/4" Motor Pulley

$33.99

$

In Stock, only 2 left!

0

4

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 8

0

5

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, only 2 left!

0

6

Bad Boy 015-0060-00

2014 MZ Muffler-725cc Kohler

$379.99

$

Usually ships in 4-7 days

0

7

Bad Boy 064-0030-00

Ground Cable

$19.99

$

Usually ships in 4-7 days

0

8

Bad Boy 103-5400-00

Black Boot For ground cable

$4.99

$

Usually ships in 4-7 days

0

9

Bad Boy 039-1220-00

Warner Clutch A-R Bracket

$13.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

11

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

12

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, only 4 left!

0

13

Bad Boy 070-0050-00

Clutch 2015 Magnum/MZ

$287.99

$

Usually ships in 4-7 days

0

14

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

15

Bad Boy 030-6029-00

3/8" Set Screw

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

17

Bad Boy 018-5401-00

7/16" x 2 3/4" Fine Thread Bolt

$2.49

$

Usually ships in 4-7 days

0

18

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, only 2 left!

0

19

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

$0.99

$

In Stock, Qty 5

0

20

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 063-5001-00

KT-725 & KT-740 Fuel Filter

$20.99

$

In Stock, Qty 8

0

22

Bad Boy 063-5002-00

KT-725 & KT-740 Precleaner

$10.99

$

In Stock, Qty 11

0

23

Bad Boy 063-5003-00

KT-725 & KT-740 Air Elemet

$38.99

$

In Stock, Qty 11

0

24

Bad Boy 063-5004-00

KT-725 & KT-740 Oil Filter

$33.99

$

In Stock, Qty 20+

0
