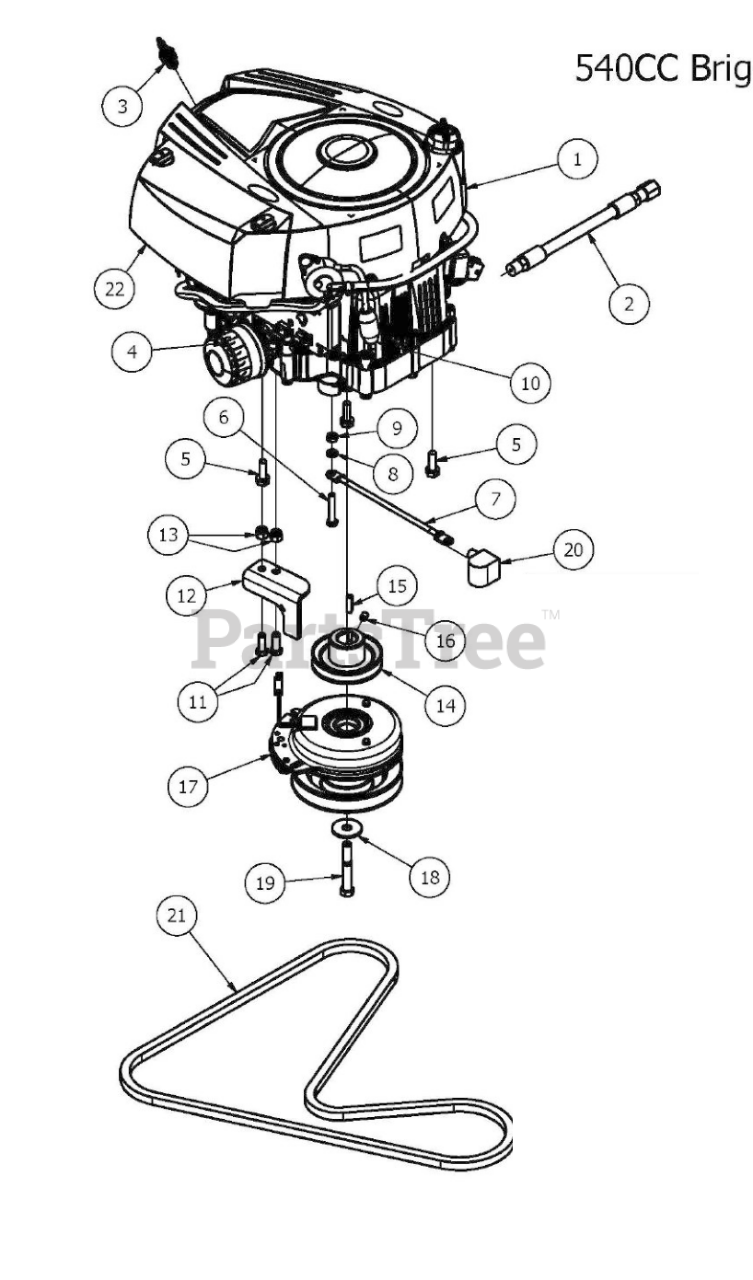

MZ - Bad Boy Zero-Turn Mower (2017) 540cc Briggs Engine Parts Diagram

Zero-Turn Mower

540cc Briggs Engine Parts Diagram

  • Title

1

Bad Boy 015-0021-00

540cc Briggs Intek Engine-MZ

$1595.99

$

Usually ships in 0 days

0

2

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, only 4 left!

0

3

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 12

0

4

Bad Boy 063-8018-00

Briggs Oil Filter

$28.99

$

In Stock, Qty 17

0

5

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, only 2 left!

0

6

Bad Boy 018-8059-00

5/16" x 1 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 064-0030-00

Ground Cable

$19.99

$

Usually ships in 4-7 days

0

8

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 17

0

11

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

12

Bad Boy 057-5900-00

2017 MZ Clutch Stop

$33.99

$

Usually ships in 4-7 days

0

13

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

14

Bad Boy 033-2010-00

3-3/4" Motor Pulley

$33.99

$

In Stock, only 2 left!

0

15

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 8

0

16

Bad Boy 030-6029-00

3/8" Set Screw

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 070-0055-00

Clutch 2017 Magnum/MZ

$319.99

$

In Stock, only 2 left!

0

18

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

19

Bad Boy 018-0007-00

7/16"-20 x 3" Hex Bolt Gr. 8

$3.49

$

Usually ships in 4-7 days

0

20

Bad Boy 103-5400-00

Black Boot For Ground Cable

$4.99

$

Usually ships in 4-7 days

0

21

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

22

Bad Boy 063-4026-00

Air Filter

$41.99

$

In Stock, only 2 left!

0
