MZ - Bad Boy Zero-Turn Mower (2017) MZ Arm Assembly Parts Diagram

Zero-Turn Mower

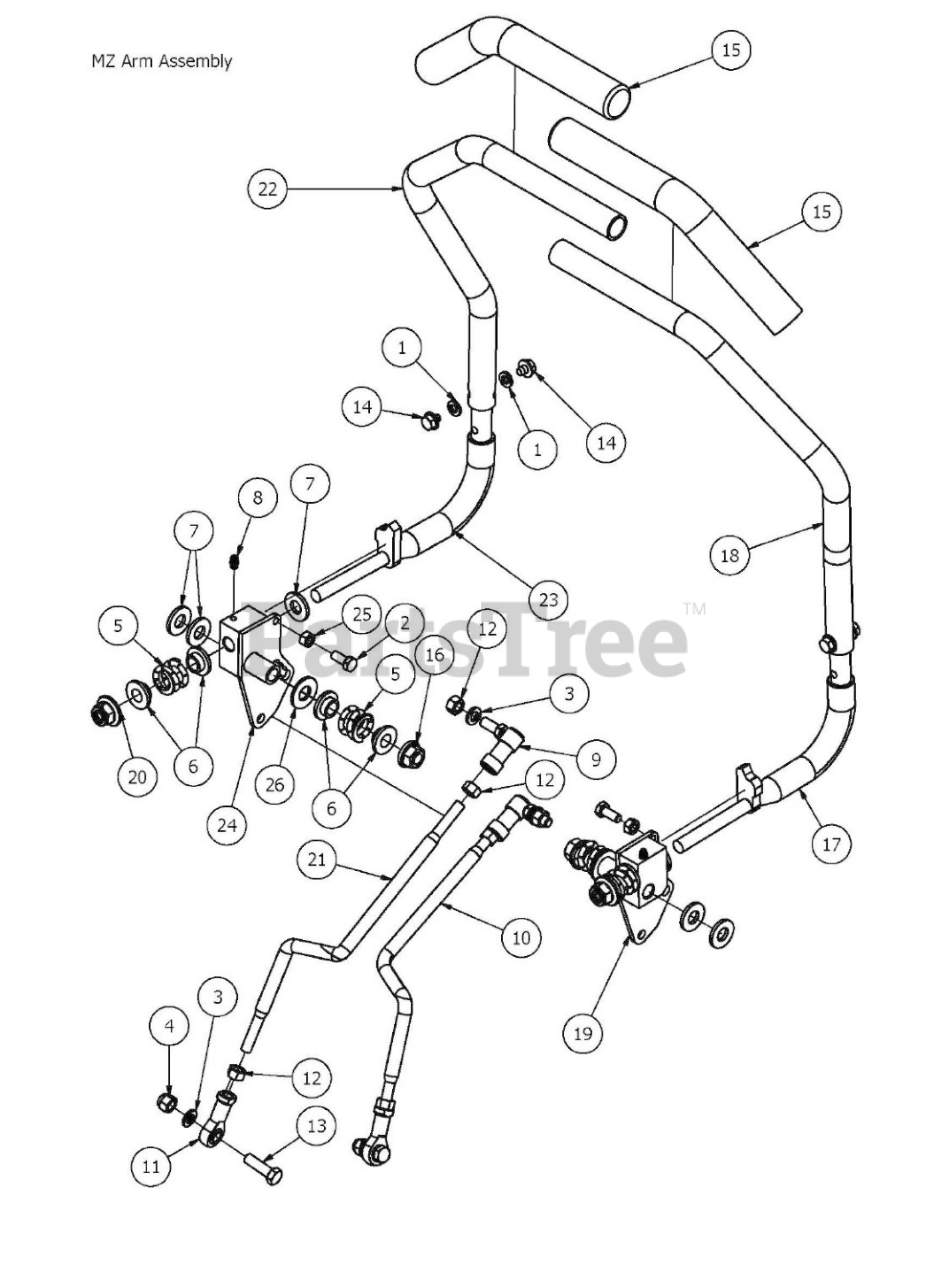

MZ Arm Assembly Parts Diagram

  • Title

1

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

2

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

3

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

6

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

In Stock, only 4 left!

0

7

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

8

Bad Boy 024-6034-00

1/4 Drive-In Grease Fitting

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 099-2009-00

3/8-24 Quick Release Ball Joint

$10.99

$

In Stock, only 2 left!

0

10

Bad Boy 035-5450-00

Push Rod - Right

$36.99

$

Usually ships in 4-7 days

0

11

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

12

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

14

Bad Boy 018-2020-00

5/16-18 1/2 HWH Bolt-Steering

$1.99

$

In Stock, only 3 left!

0

15

Bad Boy 069-4007-00

Rubber Grip

$

$

Currently unavailable

16

Bad Boy 013-0085-00

1/2-13 Hex Flange (GR.G) ZC

$1.49

$

Usually ships in 4-7 days

0

17

Bad Boy 031-9025-70

Steering Arm Elbow - Right

$90.99

$

Usually ships in 4-7 days

0

18

Bad Boy 031-8851-00

ZT Direction Steering Arm (Right)

$

$

Not available

19

Bad Boy 031-0018-98

2017 Drive Lever Housing - Right

$24.99

$

Usually ships in 4-7 days

0

20

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 035-5451-00

Push Rod Left

$45.99

$

Usually ships in 4-7 days

0

22

Bad Boy 031-8850-00

ZT Direction Steering Arm (Left)

$

$

Not available

23

Bad Boy 031-9020-70

Steering Arm Elbow - Left

$90.99

$

In Stock, only 2 left!

0

24

Bad Boy 031-0017-98

2017 Drive Lever Housing - Left

$33.99

$

Usually ships in 4-7 days

0

25

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

26

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0
