MZ - Bad Boy Zero-Turn Mower (2017) MZ Frame Bottom Parts Diagram

Zero-Turn Mower

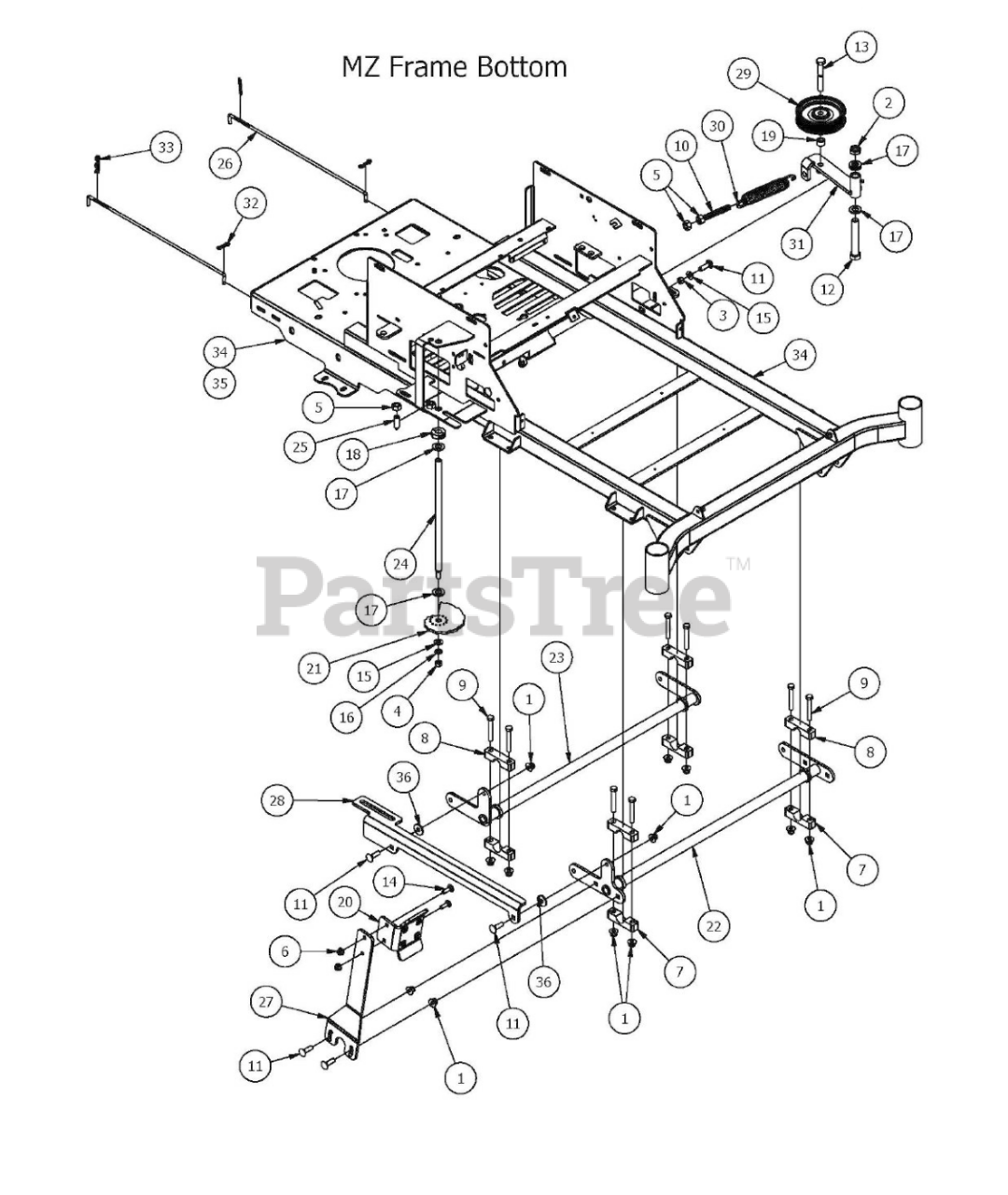

MZ Frame Bottom Parts Diagram

  • Title

1

Bad Boy 013-5202-00

3/8 Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

2

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 013-6014-00

3/8-16 Hex Nut Zinc

$0.99

$

In Stock, only 4 left!

0

4

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

6

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 017-9077-00

Pillow Block MZ male

$22.99

$

Usually ships in 4-7 days

0

8

Bad Boy 017-9078-00

Pillow Block MZ female

$22.99

$

Usually ships in 0 days

0

9

Bad Boy 018-0028-00

3/8 x 2 1/2" Hex Bolt

$4.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-2004-50

All Thread-Pump Idler Tensioner

$13.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

12

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

13

Bad Boy 018-6036-00

1/2 x 2-3/4 Hex Bolt

$1.99

$

In Stock, only 2 left!

0

14

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

15

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

18

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

19

Bad Boy 025-7036-00

1/2 Set Collar W/Set Screw

$4.99

$

In Stock, only 2 left!

0

20

Bad Boy 026-0019-00

2017 MZ/ZT Shallow Foot Pedal

$33.99

$

Usually ships in 4-7 days

0

21

Bad Boy 026-1100-00

2017 MZ/ZT Cam Plate

$16.99

$

Usually ships in 4-7 days

0

22

Bad Boy 028-0002-00

Actuator Bar Front- 2017 MZ/ZT

$83.99

$

Usually ships in 4-7 days

0

23

Bad Boy 028-0003-00

Actuator Bar Rear- 2017 MZ/ZT

$83.99

$

Usually ships in 4-7 days

0

24

Bad Boy 028-0007-00

2017 Deck Height Dial Rod MZ

$33.99

$

Usually ships in 4-7 days

0

25

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

26

Bad Boy 028-0070-00

Neutral Rod

$13.99

$

Usually ships in 4-7 days

0

27

Bad Boy 031-0500-00

2017 MZ/ZT Deck Pedal Lever

$33.99

$

Usually ships in 4-7 days

0

28

Bad Boy 031-0510-00

2017 MZ/ZT Actuator Linkage

$49.99

$

Usually ships in 4-7 days

0

29

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

30

Bad Boy 034-2020-00

2015 Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

31

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, Qty 5

0

32

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

33

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

34

Bad Boy 070-5810-00

2017 MZ 42"-48" Frame

$

$

Not available

35

Bad Boy 070-5420-00

2017 54" Magnum Frame

$

$

Not available

36

Bad Boy 019-2073-00

.390 ID Plastic Washer

$1.99

$

In Stock, only 3 left!

0
