MZ - Bad Boy Zero-Turn Mower (2017) MZ Frame Top Assembly Parts Diagram

Zero-Turn Mower

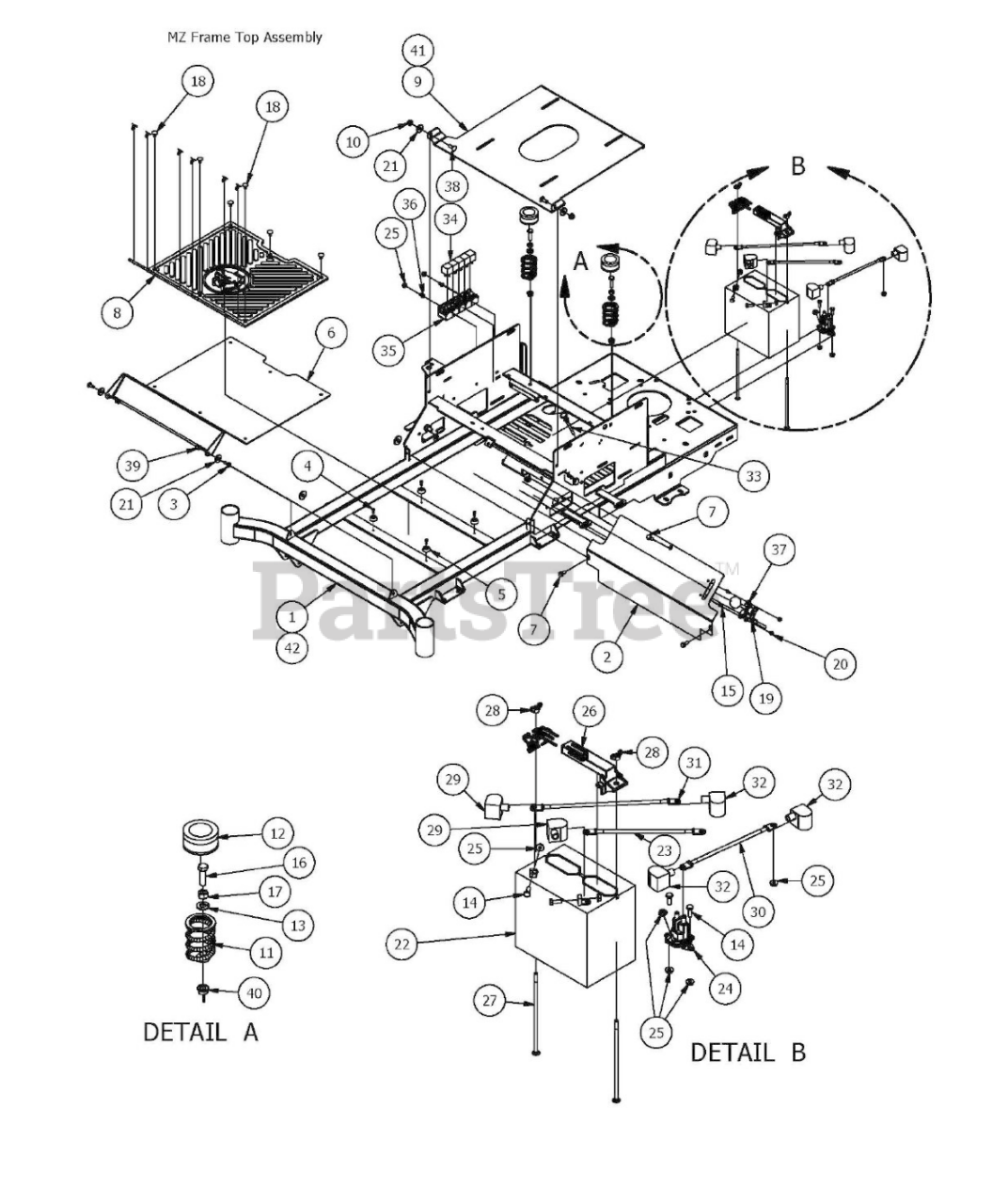

MZ Frame Top Assembly Parts Diagram

  • Title

1

Bad Boy 070-5810-00

2017 MZ/ZT 42"-48" Frame

$

$

Not available

2

Bad Boy 014-3317-00

2017 MZ Cooler Cover

$81.99

$

Usually ships in 0 days

0

3

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

4

Bad Boy 030-3050-00

#10 x 1/2" Self Tapping Screw

$0.99

$

In Stock, Qty 9

0

5

Bad Boy 029-4010-00

Button Bumper

$1.49

$

Usually ships in 4-7 days

0

6

Bad Boy 079-3417-00

MZ/ZT 2017 Floorboard

$166.99

$

Usually ships in 4-7 days

0

7

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

8

Bad Boy 081-4000-00

2017 MZ/ZT Floor Mat

$66.99

$

Usually ships in 4-7 days

0

9

Bad Boy 026-2017-00

2017 MZ Seat Plate

$136.99

$

Usually ships in 4-7 days

0

10

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 034-8045-00

Seat Spring

$21.99

$

Usually ships in 4-7 days

0

12

Bad Boy 014-8047-00

Seat Spring Cap Cover

$2.49

$

In Stock, only 2 left!

0

13

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

15

Bad Boy 018-5200-00

10-24 x 5/8 Button Head Bolt

$0.99

$

In Stock, Qty 5

0

16

Bad Boy 018-3000-00

3/8" x2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

17

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

18

Bad Boy 040-6090-00

5/8" Christmas Tree Fastener

$

$

Not available

19

Bad Boy 064-8057-17

MZ Brake Cable

$27.99

$

In Stock, only 2 left!

0

20

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

Usually ships in 4-7 days

0

21

Bad Boy 019-6042-00

.360ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

22

Bad Boy 068-8049-00

Battery

$

$

Not available

23

Bad Boy 064-0030-00

Ground Cable

$19.99

$

Usually ships in 4-7 days

0

24

Bad Boy 108-5349-00

Solenoid

$31.99

$

Usually ships in 4-7 days

0

25

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

26

Bad Boy 043-8929-00

Battery Hold Down

$18.99

$

In Stock, only 1 left!

0

27

Bad Boy 018-8050-00

1/4-20 X 8 Carriage Bolt

$1.99

$

In Stock, Qty 8

0

28

Bad Boy 013-8051-00

1/4" Wing Nut

$0.99

$

Usually ships in 4-7 days

0

29

Bad Boy 103-5400-00

Black Boot For Ground Cable

$4.99

$

Usually ships in 4-7 days

0

30

Bad Boy 064-5301-00

12 in red battery cable

$18.99

$

In Stock, only 2 left!

0

31

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, only 3 left!

0

32

Bad Boy 103-5300-00

Red Boot

$6.49

$

Usually ships in 4-7 days

0

33

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

34

Bad Boy 086-1201-00

Relay

$26.99

$

In Stock, Qty 7

0

35

Bad Boy 086-3050-17

Harness

$341.99

$

Usually ships in 4-7 days

0

36

Bad Boy 018-2012-00

1/4" x 1/2" BS C/S 18-8 SS

$0.99

$

In Stock, only 2 left!

0

37

Bad Boy 055-2012-00

Universal Throttle

$27.99

$

In Stock, only 2 left!

0

38

Bad Boy 018-8066-00

5/16" x 7/8" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

39

Bad Boy 013-2050-00

1/4-20 Nylon Insert flange Nut

$1.49

$

In Stock, only 2 left!

0

40

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

41

Bad Boy 026-1016-00

Magnum Seat Pan (Kawasaki Only)

$116.99

$

In Stock, only 2 left!

0

42

Bad Boy 070-5420-00

Magnum Frame

$

$

Not available
