MZ Magnum - Bad Boy Zero-Turn Mower (2013) 27 Hp Briggs Intek Parts Diagram

Zero-Turn Mower

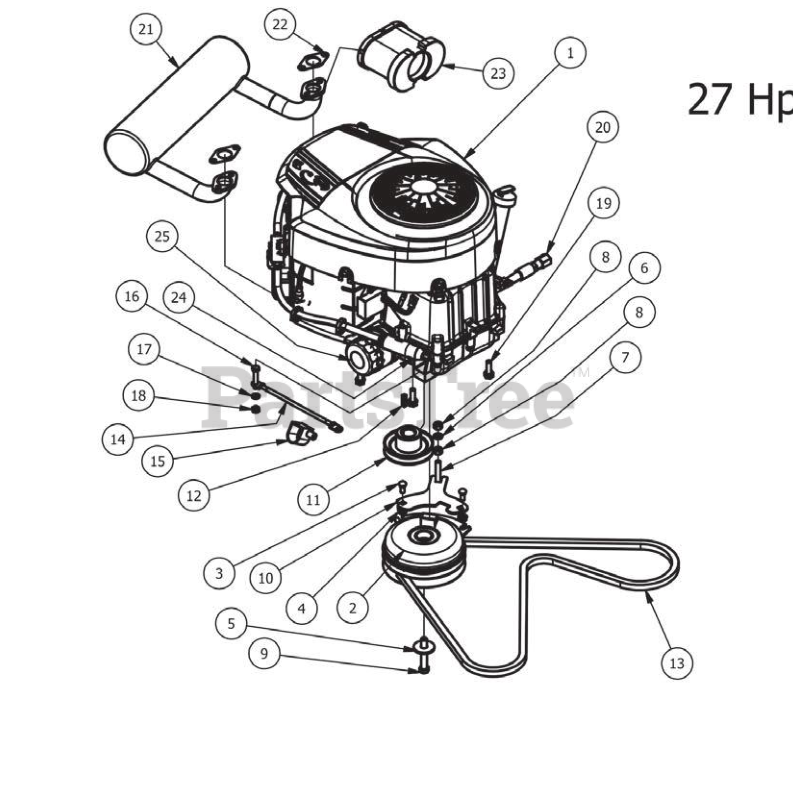

27 Hp Briggs Intek Parts Diagram

  • Title

1

Bad Boy 015-3050-00

Briggs Pro Series W/1in Shaft

$

$

Currently unavailable

2

Bad Boy 070-3000-00

MZ Clutch Assembly

$319.99

$

Usually ships in 4-7 days

0

3

Bad Boy 018-8062-00

5/16-18x3/4 carriage bolt

$0.99

$

Usually ships in 4-7 days

0

4

Bad Boy 013-9002-00

5/16" Flange Nut Zinc W/Serrations

$0.99

$

In Stock, only 1 left!

0

5

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

6

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-1010-00

3/8-16x3-1/2 grade 5 hex bolt

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

9

Bad Boy 018-5401-00

7/16x2 3/4 Fine Thread Bolt

$2.49

$

Usually ships in 4-7 days

0

10

Bad Boy 057-5920-00

MZ Clutch Holder

$22.99

$

Usually ships in 4-7 days

0

11

Bad Boy 033-2010-00

3-3/4" Motor Pulley

$33.99

$

In Stock, only 2 left!

0

12

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 8

0

13

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

14

Bad Boy 064-0030-00

Ground Cable

$19.99

$

Usually ships in 4-7 days

0

15

Bad Boy 103-5400-00

Black Boot for ground Cable

$4.99

$

Usually ships in 4-7 days

0

16

Bad Boy 018-8059-00

5/16" x 1 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

19

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, only 2 left!

0

20

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, only 4 left!

0

21

Bad Boy 015-0002-00

Exhaust

$232.99

$

Usually ships in 4-7 days

0

22

Bad Boy 015-2709-00

Exhaust gasket

$11.99

$

In Stock, Qty 5

0

23

Bad Boy 063-4000-00

Air Filter W/Predeaner 26 Int

$34.99

$

Usually ships in 4-7 days

0

24

Bad Boy 063-6000-00

Universal inline Fuel Filter

$15.99

$

In Stock, Qty 17

0

25

Bad Boy 063-8018-00

Oil Filter

$28.99

$

In Stock, Qty 17

0
