MZ Magnum - Bad Boy Zero-Turn Mower (2013) 54" Deck Assembly Parts Diagram

Zero-Turn Mower

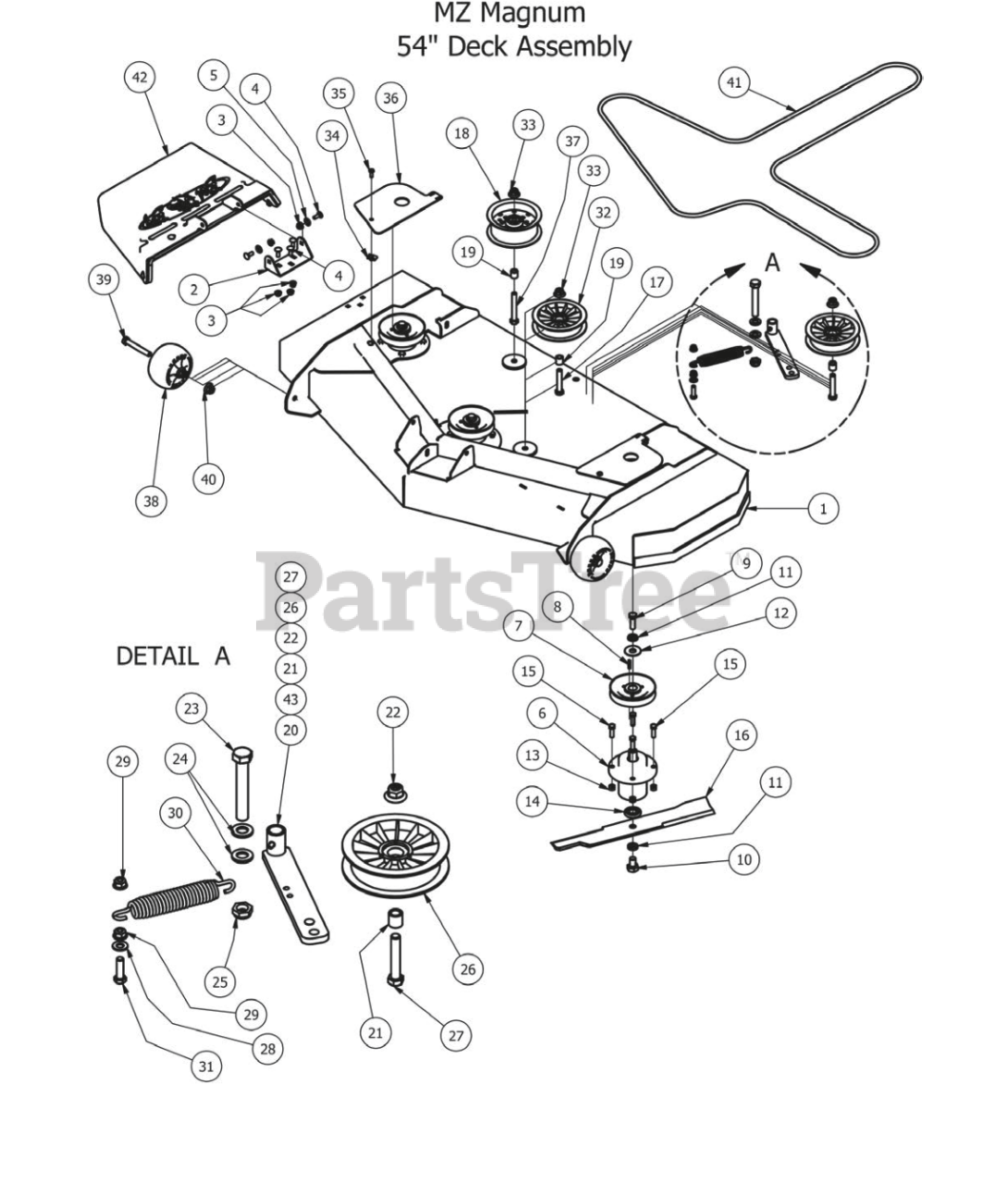

54" Deck Assembly Parts Diagram

  • Title

1

Bad Boy 060-2400-00

54 MZ Deck

$906.99

$

Usually ships in 4-7 days

0

2

Bad Boy 206-6020-00

Chute Hanger 48 MZ

$30.99

$

Usually ships in 4-7 days

0

3

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-8066-00

5/16" x 7/8" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

5

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

6

Bad Boy 037-2000-00

Spindle

$232.99

$

In Stock, Qty 17

0

7

Bad Boy 033-4820-00

MZ Deck Pulley

$33.99

$

In Stock, Qty 13

0

8

Bad Boy 042-0010-00

3/16 x 1 Square Key

$4.99

$

In Stock, only 4 left!

0

9

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 7

0

10

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Bolt

$2.99

$

In Stock, Qty 20+

0

11

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 019-6020-00

Type B Plain Washer

$5.49

$

In Stock, Qty 20+

0

13

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

14

Bad Boy 037-6024-00

Spindle Bearing

$36.99

$

In Stock, Qty 20+

0

15

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

16

Bad Boy 038-0005-00

54" MZ Fusion Blade

$24.99

$

In Stock, Qty 20+

0

17

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

18

Bad Boy 033-5001-00

5 3/4 flat idler-32fI-92-008

$67.99

$

Usually ships in 4-7 days

0

19

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

20

Bad Boy 039-6945-00

Deck Idler 2009 AOS

$43.99

$

In Stock, only 2 left!

0

21

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

22

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

23

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

24

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

25

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

26

Bad Boy 033-2000-00

Plastic Idler Pulley

$

$

Not available

27

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

28

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

29

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

30

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 15

0

31

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

32

Bad Boy 033-2000-00

Plastic Idler Pulley

$

$

Not available

33

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

34

Bad Boy 013-0054-00

1/4-20 Cage Nut

$1.49

$

Usually ships in 4-7 days

0

35

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

36

Bad Boy 014-4850-00

MZ Pulley Cover 48"

$30.99

$

Usually ships in 0 days

0

37

Bad Boy 018-6054-00

1/2-13 x 3 1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 2 left!

0

38

Bad Boy 022-5234-00

Deck Wheel

$

$

Not available

39

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

40

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

41

Bad Boy 041-4022-00

B 138 Belt 54" MZ Magnum

$83.99

$

In Stock, Qty 17

0

42

Bad Boy 210-6015-98

MZ Discharge Assembly

$166.99

$

In Stock, only 2 left!

0

43

Bad Boy 039-7001-98

MZ Deck Idler Assembly (Components 20,21,22,26,27)

$60.99

$

Usually ships in 4-7 days

0
