MZ Magnum - Bad Boy Zero-Turn Mower (2013) Deck Lift Assembly Parts Diagram

Zero-Turn Mower

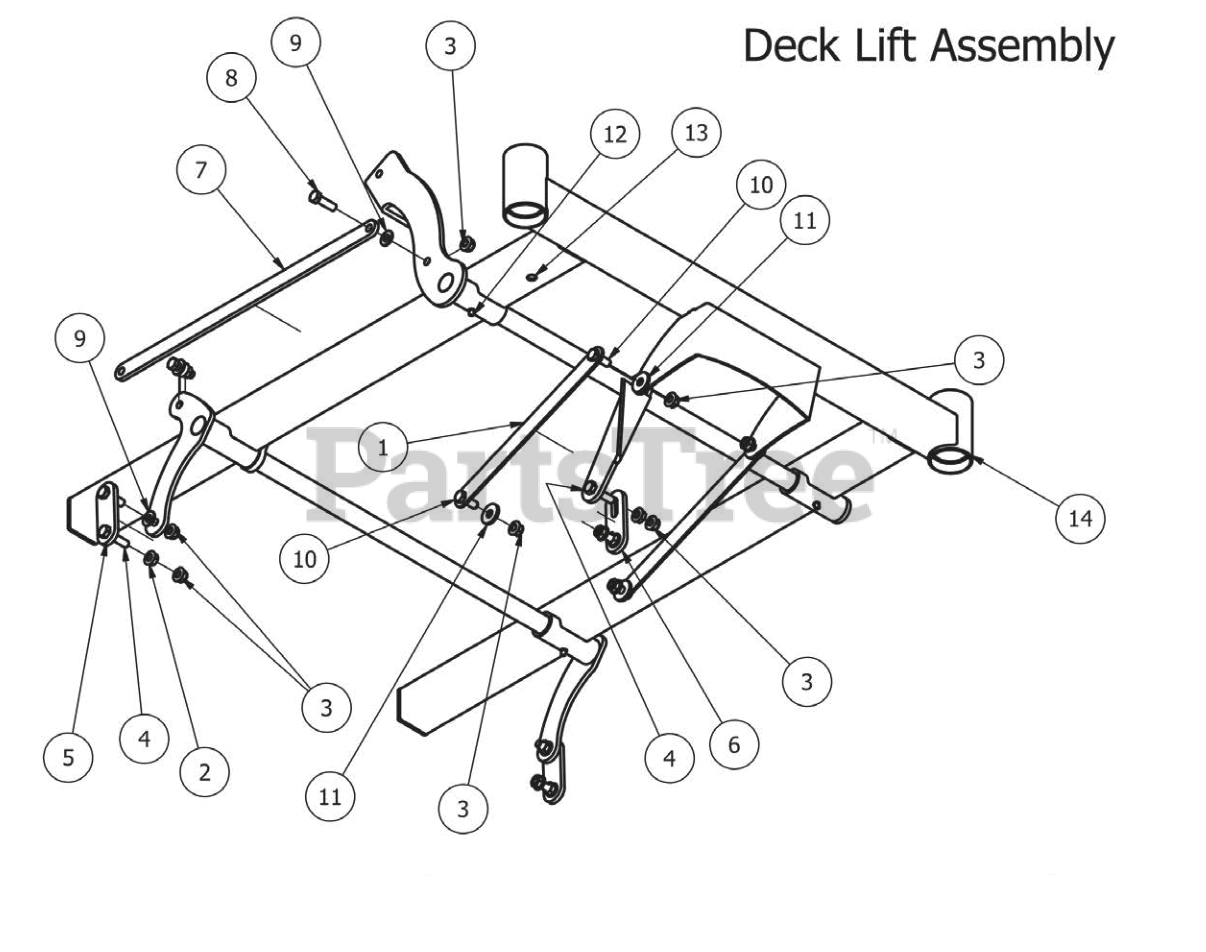

Deck Lift Assembly Parts Diagram

  • Title

1

Bad Boy 031-1010-00

MZ Front Arms

$27.99

$

Usually ships in 0 days

0

2

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

4

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

5

Bad Boy 025-0010-00

Deck Spacer (Rear)

$20.99

$

Usually ships in 4-7 days

0

6

Bad Boy 025-0020-00

Deck Spacer (Front)

$20.99

$

Usually ships in 4-7 days

0

7

Bad Boy 028-0050-00

Deck Linkage Rod

$7.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

9

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

10

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

11

Bad Boy 019-2073-00

.390 ID Plastic Washer

$1.99

$

In Stock, only 3 left!

0

12

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 014-3010-00

5/8 Round insert

$1.99

$

Usually ships in 4-7 days

0

14

Bad Boy 034-6039-00

Wheel bearing Container

$22.99

$

Usually ships in 4-7 days

0
