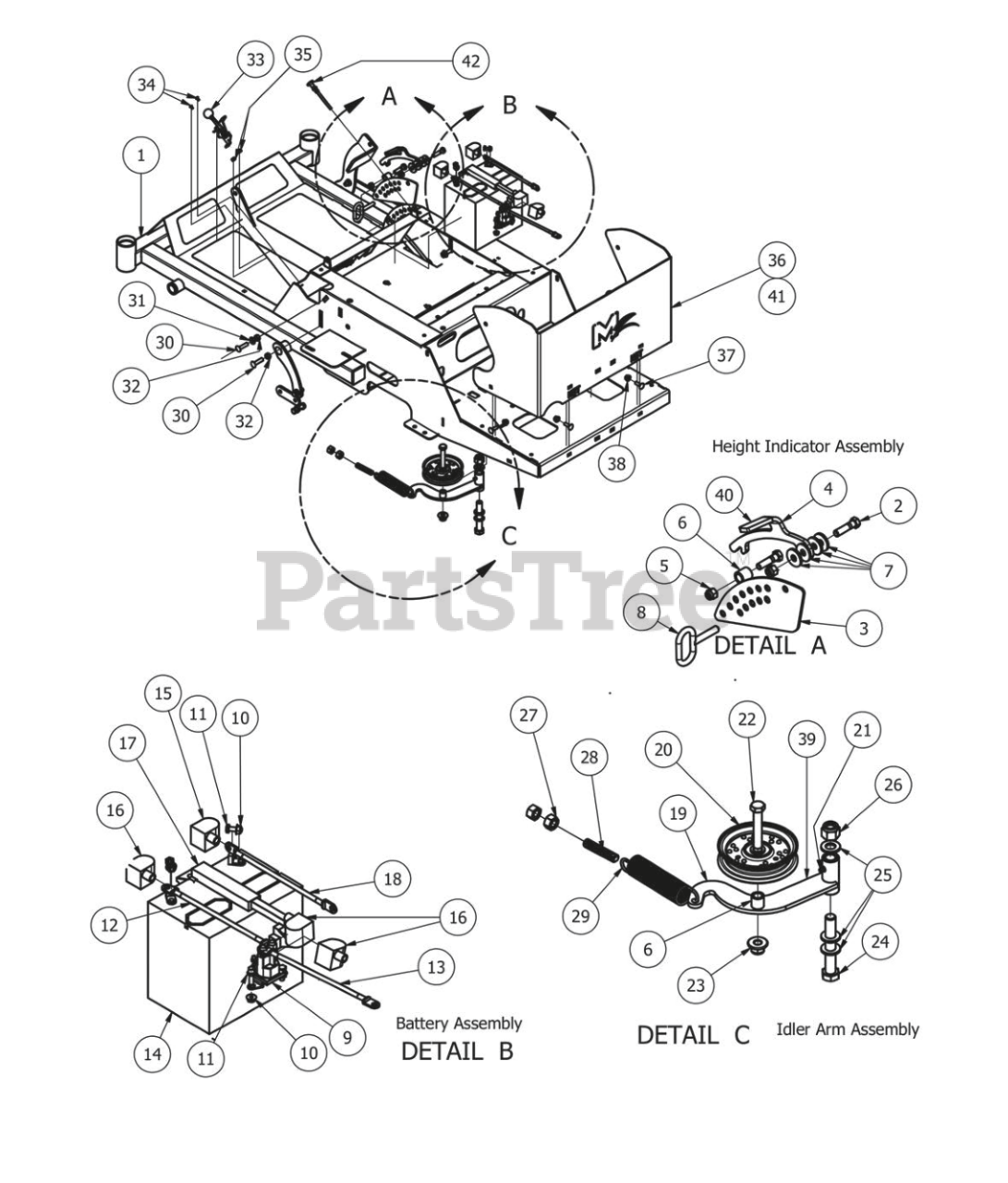

MZ Magnum - Bad Boy Zero-Turn Mower (2013) Frame Assembly Parts Diagram

Zero-Turn Mower

Frame Assembly Parts Diagram

  • Title

1

Bad Boy 070-5800-00

MZ Frame

$

$

Not available

2

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

3

Bad Boy 026-2020-00

MZ Height Indicator Plate

$15.99

$

Usually ships in 4-7 days

0

4

Bad Boy 031-1050-00

MZ Deck Level Lock Lever

$33.99

$

Usually ships in 4-7 days

0

5

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

7

Bad Boy 019-2073-00

.390 ID Plastic Washer

$1.99

$

In Stock, only 3 left!

0

8

Bad Boy 040-4000-00

Deck height lever pin

$18.99

$

In Stock, only 3 left!

0

9

Bad Boy 108-5349-00

Solenoid

$31.99

$

Usually ships in 4-7 days

0

10

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 018-8052-00

1/4-20 x 3/4 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 064-0025-00

10" red battery cable

$14.99

$

Usually ships in 4-7 days

0

13

Bad Boy 064-0050-00

62" red cable

$22.99

$

Usually ships in 4-7 days

0

14

Bad Boy 068-2000-00

MZ Battery

$

$

Currently unavailable

15

Bad Boy 103-5400-00

Black Boot For ground cable

$4.99

$

Usually ships in 4-7 days

0

16

Bad Boy 103-5300-00

Red Boot

$6.49

$

Usually ships in 4-7 days

0

17

Bad Boy 043-8929-98

Battery Hold Down

$

$

Currently unavailable

18

Bad Boy 064-0030-00

24" Ground Cable

$19.99

$

Usually ships in 4-7 days

0

19

Bad Boy 039-7000-00

MZ Idler arm Bracket

$40.99

$

Usually ships in 4-7 days

0

20

Bad Boy 033-6001-00

4-3/4 Idler Pulley

$33.99

$

In Stock, Qty 20+

0

21

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

22

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

23

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

24

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

25

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

26

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

27

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

28

Bad Boy 018-2004-00

All Thread-pump Idler Tensioner

$13.99

$

In Stock, only 4 left!

0

29

Bad Boy 034-9050-00

Deck spring big diameter

$18.99

$

In Stock, only 2 left!

0

30

Bad Boy 018-0001-00

3/8 -16 x 1-1/2 short neck bolt

$0.99

$

Usually ships in 4-7 days

0

31

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

32

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

33

Bad Boy 064-8057-00

Brake cable for MZ

$53.99

$

Usually ships in 4-7 days

0

34

Bad Boy 018-5200-00

10-24 X 5/8 BS C/S 18-8 SS

$0.99

$

In Stock, Qty 5

0

35

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

Usually ships in 4-7 days

0

36

Bad Boy 026-0110-00

MZ Back Plate

$60.99

$

Usually ships in 4-7 days

0

37

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

38

Bad Boy 013-9002-00

5/16" Flange Nut Zinc W/Serrations

$0.99

$

In Stock, only 1 left!

0

39

Bad Boy 039-7001-98

Parts 6,19,20,21,22,23 make up the Mz Idler arm assembly

$60.99

$

Usually ships in 4-7 days

0

40

Bad Boy 014-2051-00

Deck Height Handle Grip MZ

$1.49

$

Usually ships in 4-7 days

0

41

Bad Boy 026-0100-00

MZ Engine Rear plate (21hp)

$

$

Currently unavailable

42

Bad Boy 054-8016-00

Choke

$30.99

$

In Stock, only 4 left!

0
