MZ Magnum - Bad Boy Zero-Turn Mower (2015) Seat Assembly Parts Diagram

Zero-Turn Mower

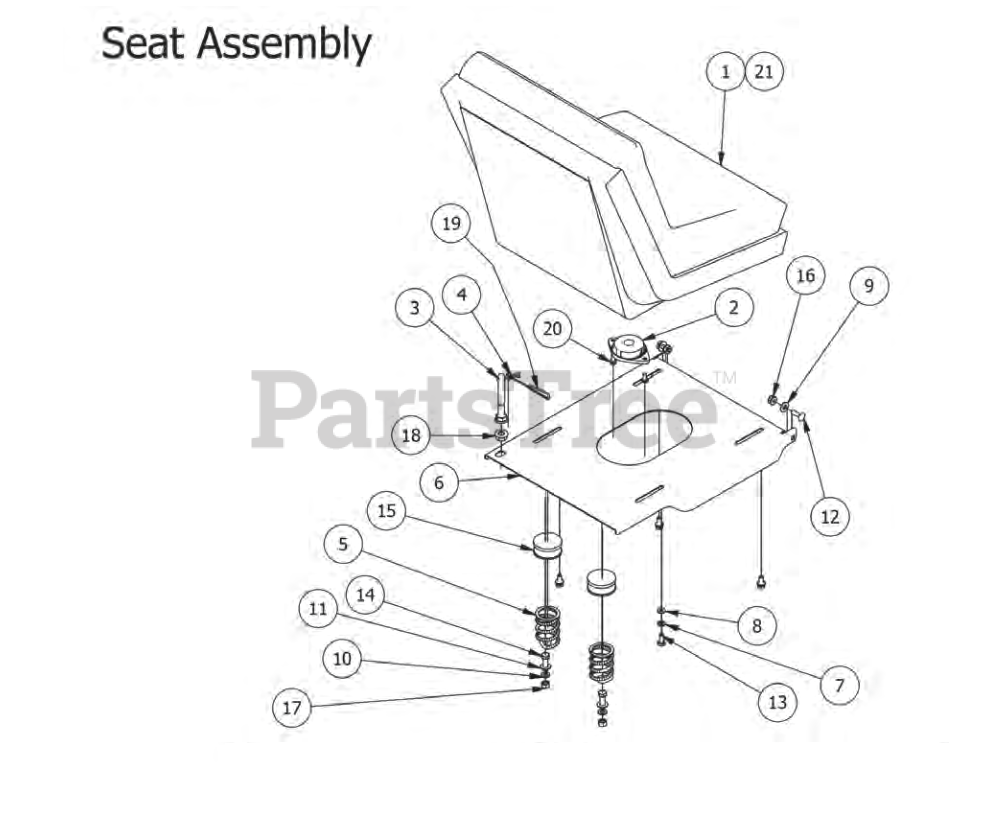

Seat Assembly Parts Diagram

  • Title

1

Bad Boy 071-9001-00

2014 Magnum Seat

$

$

Not available

2

Bad Boy 071-8062-00

2014 Seat Safety Switch

$22.99

$

Usually ships in 4-7 days

0

3

Bad Boy 044-4000-00

Seat Bracket Pin

$7.99

$

Usually ships in 4-7 days

0

4

Bad Boy 040-6060-00

Seat latch pin

$3.49

$

Usually ships in 4-7 days

0

5

Bad Boy 034-8045-00

Seat Spring

$21.99

$

Usually ships in 4-7 days

0

6

Bad Boy 026-2010-00

MZ Seat Plate

$105.99

$

Usually ships in 4-7 days

0

7

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

9

Bad Boy 019-6042-00

360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

10

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 018-8065-00

5/16-18 x 1 Carriage Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

14

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

15

Bad Boy 014-8047-00

Spring Cap Cover

$2.49

$

In Stock, only 2 left!

0

16

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

18

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

19

Bad Boy 064-1000-00

seat pin lanyard

$5.99

$

Usually ships in 4-7 days

0

20

Bad Boy 030-7041-00

1/4-20x1/2 HWH Bolt Slot

$0.99

$

Usually ships in 4-7 days

0

21

Bad Boy 071-8095-00

Gray Bucket Seat with No Arms/Sides (Only on 42"MZ)

$

$

Not available
