MZ Magnum - Bad Boy Zero-Turn Mower (2016) 48" Deck Assembly Parts Diagram

Zero-Turn Mower

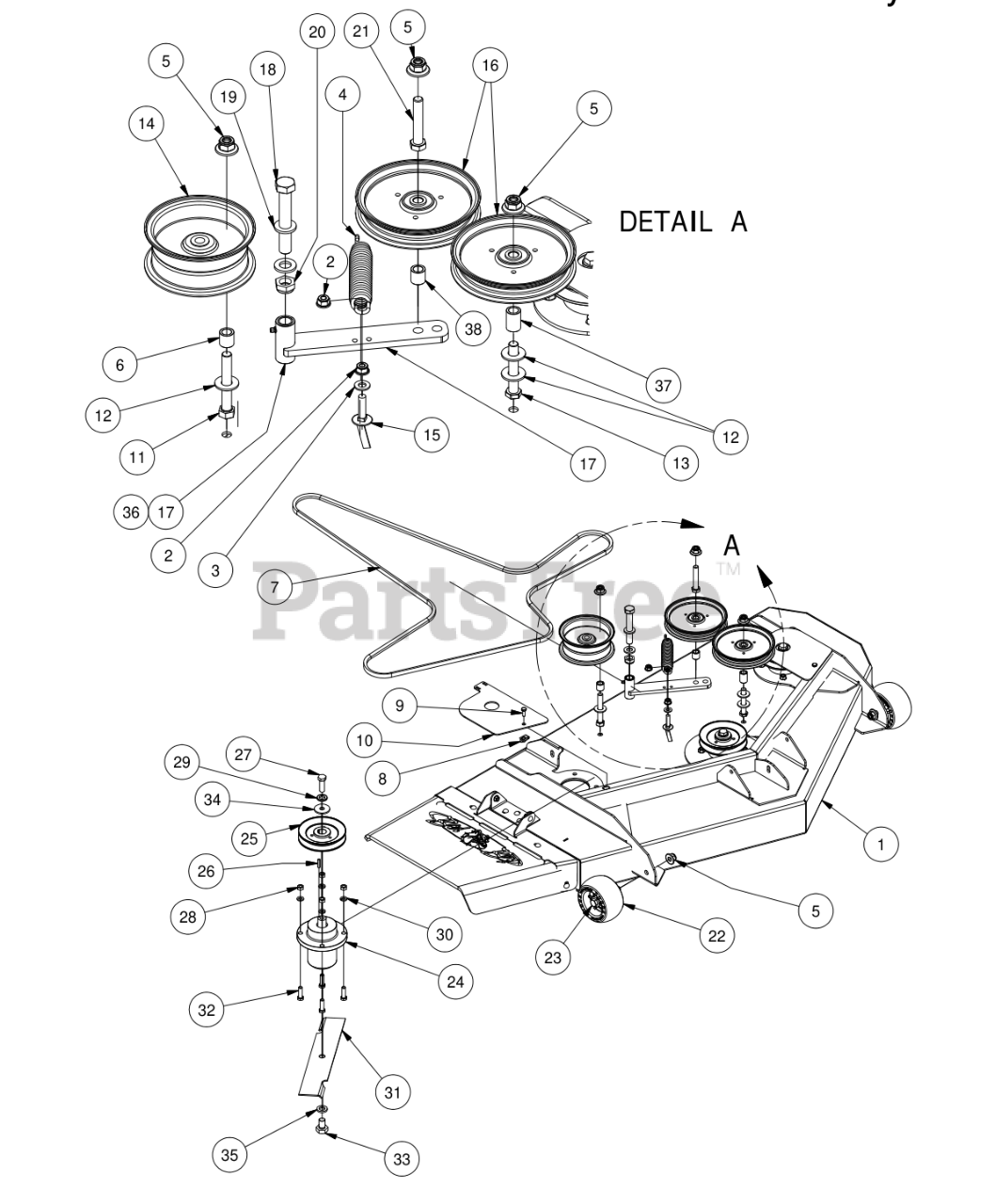

48" Deck Assembly Parts Diagram

  • Title

1

Bad Boy 060-2100-00

48 MZ Deck (Component)

$603.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

3

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 15

0

5

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

7

Bad Boy 041-6027-00

B128 Deck Belt

$85.99

$

In Stock, Qty 8

0

8

Bad Boy 013-0054-00

1/4-20 Cage Nut

$1.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 014-4850-00

MZ Pulley Cover 48"

$30.99

$

Usually ships in 0 days

0

11

Bad Boy 018-6054-00

1/2-13 x 3 1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 2 left!

0

12

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 018-7016-00

1/2-13 x GR 5 Hex Bolt Zinc

$1.99

$

In Stock, Qty 5

0

14

Bad Boy 033-5000-00

5 3/4" Deck Idler Pulley

$60.99

$

In Stock, only 2 left!

0

15

Bad Boy 018-4706-00

3/8 x 1-1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

16

Bad Boy 033-7201-25

5-3/4 Idler Pulley

$37.99

$

In Stock, Qty 20+

0

17

Bad Boy 039-6945-00

Deck Idler Bracket

$43.99

$

In Stock, only 2 left!

0

18

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

19

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

20

Bad Boy 013-5301-00

5/8-11 Nylon Insert Jam Half Nut

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

22

Bad Boy 022-1000-00

Deck Wheel

$18.99

$

In Stock, Qty 20+

0

23

Bad Boy 018-0010-00

Deck Wheel Bolt

$6.99

$

In Stock, Qty 20+

0

24

Bad Boy 037-2000-00

Spindle Assembly

$232.99

$

In Stock, Qty 17

0

25

Bad Boy 033-4820-00

MZ Deck Pulley

$33.99

$

In Stock, Qty 13

0

26

Bad Boy 042-0010-00

3/16 x 1 Square Key

$4.99

$

In Stock, only 4 left!

0

27

Bad Boy 018-6019-00

1/2-20 x 1-1/2 Grade 5 Hex Bolt Zinc

$1.49

$

In Stock, Qty 7

0

28

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

29

Bad Boy 019-5007-00

1/2" Lock Washer Zinc

$0.99

$

In Stock, only 1 left!

0

30

Bad Boy 019-5037-00

3/8 Lockwasher Zinc

$0.99

$

In Stock, only 2 left!

0

31

Bad Boy 038-4826-00

MZ 48 Blade

$24.99

$

In Stock, Qty 20+

0

32

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

33

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Hex Bolt (Fine)

$2.99

$

In Stock, Qty 20+

0

34

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

35

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

36

Bad Boy 039-7001-98

Deck Idler Assembly (5,16,17,21,and 39)

$60.99

$

Usually ships in 4-7 days

0

37

Bad Boy 025-5337-00

.502 x .750 x 1.25 Length Spacer

$4.99

$

In Stock, only 2 left!

0

38

Bad Boy 025-5204-00

42/48 MZ Idler Pully Spacer

$4.99

$

Usually ships in 4-7 days

0
