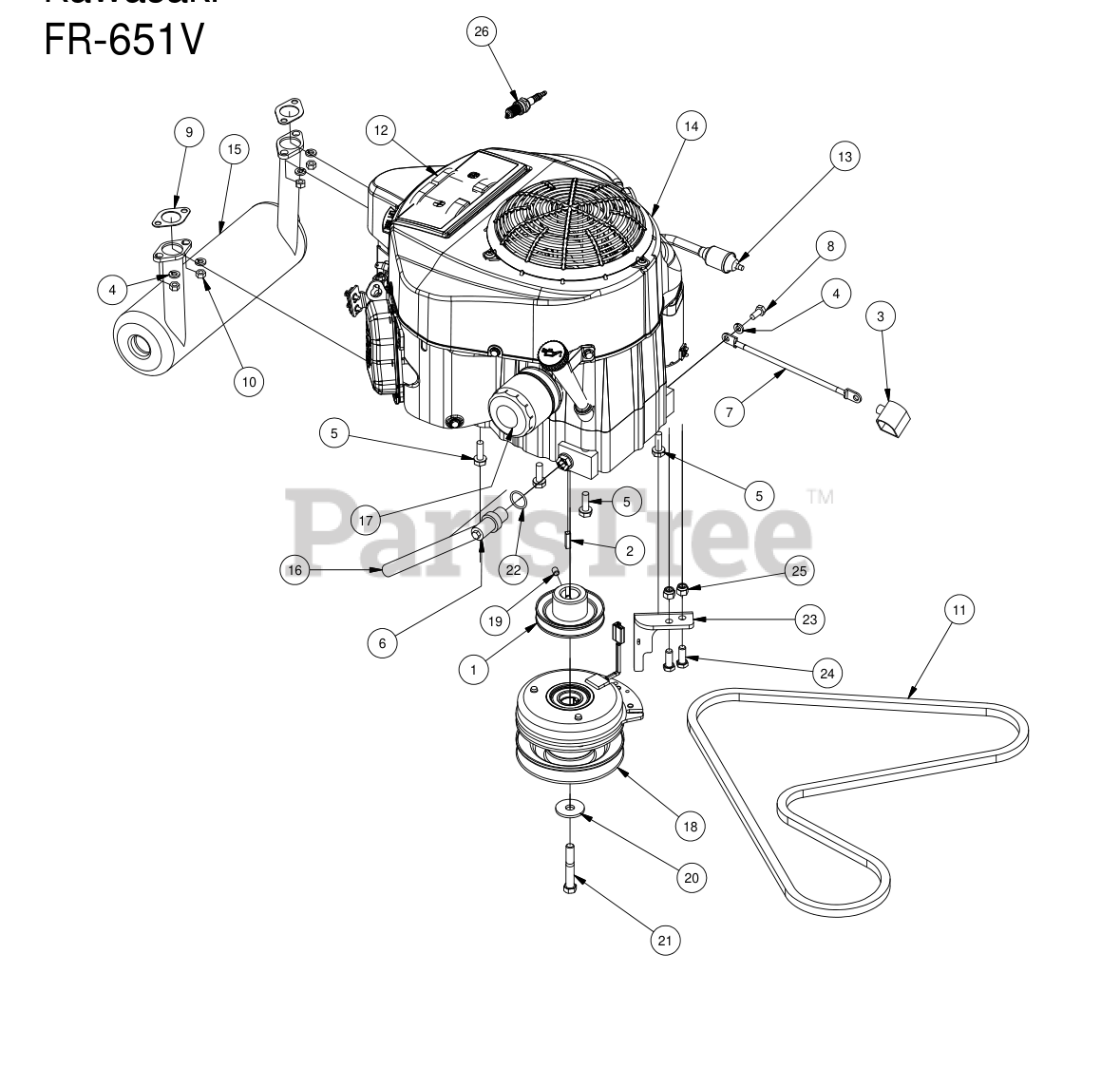

MZ Magnum - Bad Boy Zero-Turn Mower (2016) Kawasaki FR - 651V Parts Diagram

Zero-Turn Mower

Kawasaki FR - 651V Parts Diagram

  • Title

1

Bad Boy 033-2010-00

3-3/4" Motor Pulley

$33.99

$

In Stock, only 2 left!

0

2

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 8

0

3

Bad Boy 103-5400-00

Black Boot For Ground Cable

$4.99

$

Usually ships in 4-7 days

0

4

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, only 2 left!

0

6

Bad Boy 015-5404-00

oil drain

$15.99

$

Usually ships in 4-7 days

0

7

Bad Boy 064-8061-00

Ground Cable

$24.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-5321-00

M8x1.20x20MM Hex head bolt

$1.99

$

Usually ships in 4-7 days

0

9

Bad Boy 015-2709-00

Exhaust Gasket

$11.99

$

In Stock, Qty 5

0

10

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

Usually ships in 4-7 days

0

11

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

12

Bad Boy 063-2097-00

Kawasaki Air Filter

$27.99

$

In Stock, Qty 9

0

13

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 17

0

14

Bad Boy 015-0022-00

726cc Kawasaki Engine-FR651V

$2267.99

$

Usually ships in 4-7 days

0

15

Bad Boy 015-0038-00

Exhaust for FR Kawasaki-MZ

$227.99

$

Usually ships in 4-7 days

0

16

Bad Boy 051-8064-00

1/2 Clear Braded Hose Priced/Foot

$3.49

$

In Stock, only 3 left!

0

17

Bad Boy 063-8017-00

Kawasaki Oil Filter

$34.99

$

In Stock, Qty 17

0

18

Bad Boy 070-0050-00

Clutch 2015 Magnum/MZ

$287.99

$

Usually ships in 4-7 days

0

19

Bad Boy 030-6029-00

3/8" Set Screw

$0.99

$

In Stock, only 2 left!

0

20

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

21

Bad Boy 018-0029-00

7/16"-20 x 4" Hex Bolt Gr. 8

$4.99

$

Usually ships in 4-7 days

0

22

Bad Boy 015-5403-00

O-Ring

$7.99

$

Usually ships in 4-7 days

0

23

Bad Boy 039-1220-00

Warner Clutch A-R Bracket

$13.99

$

Usually ships in 4-7 days

0

24

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

25

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 7

0
