MZ Magnum - Bad Boy Zero-Turn Mower (2016) Shroud Assembly Parts Diagram

Zero-Turn Mower

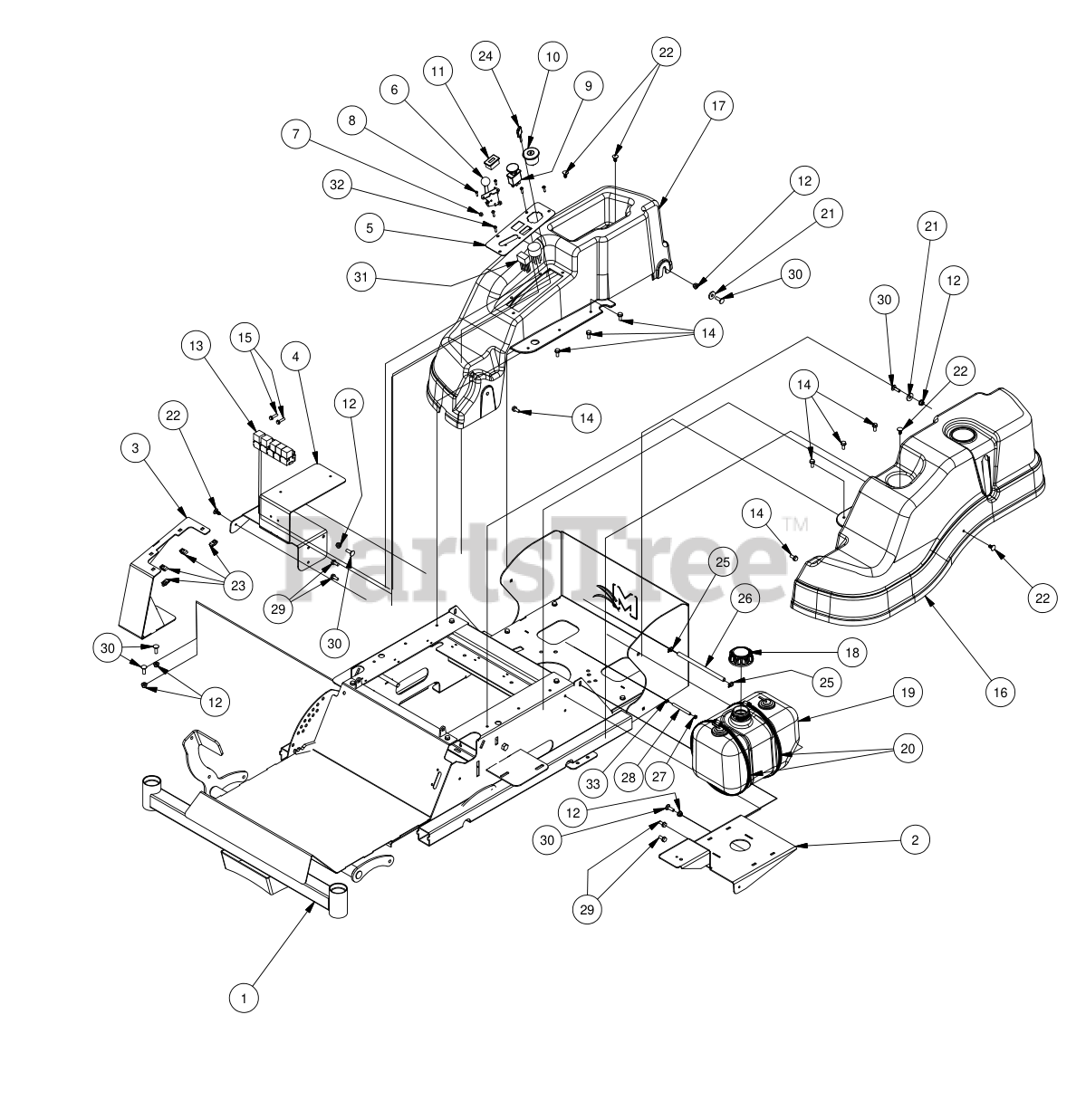

Shroud Assembly Parts Diagram

  • Title

1

Bad Boy 070-5900-00

2014 54" MZ Magnum Frame

$

$

Not available

2

Bad Boy 039-1200-00

MZ Magnum Gas Tank Bracket Assy

$

$

Not available

3

Bad Boy 201-2040-00

MZ Magnum Shroud Control Support Assy

$

$

Not available

4

Bad Boy 201-2030-00

MZ Magnum Shroud Storage Support Assy

$

$

Not available

5

Bad Boy 079-0075-00

Control Panel New MZ

$

$

Not available

6

Bad Boy 055-3000-00

Throttle Lever

$28.99

$

Usually ships in 4-7 days

0

7

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

9

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

10

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

11

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

12

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

13

Bad Boy 086-1201-00

Relay Terminal

$26.99

$

In Stock, Qty 7

0

14

Bad Boy 030-7045-00

5/16 x 3/4 washer head type F screw

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 030-7040-00

1/4 x 1 Hex Head Tek screw

$1.49

$

Usually ships in 4-7 days

0

16

Bad Boy 074-4000-00

2013 Magnum Left Fender Shroud

$151.99

$

Usually ships in 4-7 days

0

17

Bad Boy 074-4001-00

2013 Magnum Right Fender Shroud

$151.99

$

Usually ships in 4-7 days

0

18

Bad Boy 066-0050-00

Fuel Cap 2013 Magnum-080165AE

$30.99

$

Usually ships in 4-7 days

0

19

Bad Boy 067-0050-00

2.5 Gal EPA Tank Assy-071145AE

$220.99

$

Usually ships in 4-7 days

0

20

Bad Boy 072-0075-00

MZ Magnum Tank Clamp-63164

$15.99

$

Usually ships in 4-7 days

0

21

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

22

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

23

Bad Boy 013-0056-00

10-24 "U" Nut

$

$

Not available

24

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

25

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

26

Bad Boy 051-8067-00

1/4" Fuel Line Hose

$6.99

$

In Stock, only 3 left!

0

27

Bad Boy 072-8072-00

1/4" Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

28

Bad Boy 051-2027-00

3/16" Clear Vinyl Tubing

$1.49

$

Usually ships in 4-7 days

0

29

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

30

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

31

Bad Boy 086-0075-00

wiring harness

$443.99

$

Usually ships in 4-7 days

0

32

Bad Boy 018-8058-00

10-24 x 1 BS C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

33

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0
