MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2022) FUEL TANK & REAR COVER Parts Diagram

Zero-Turn Mower

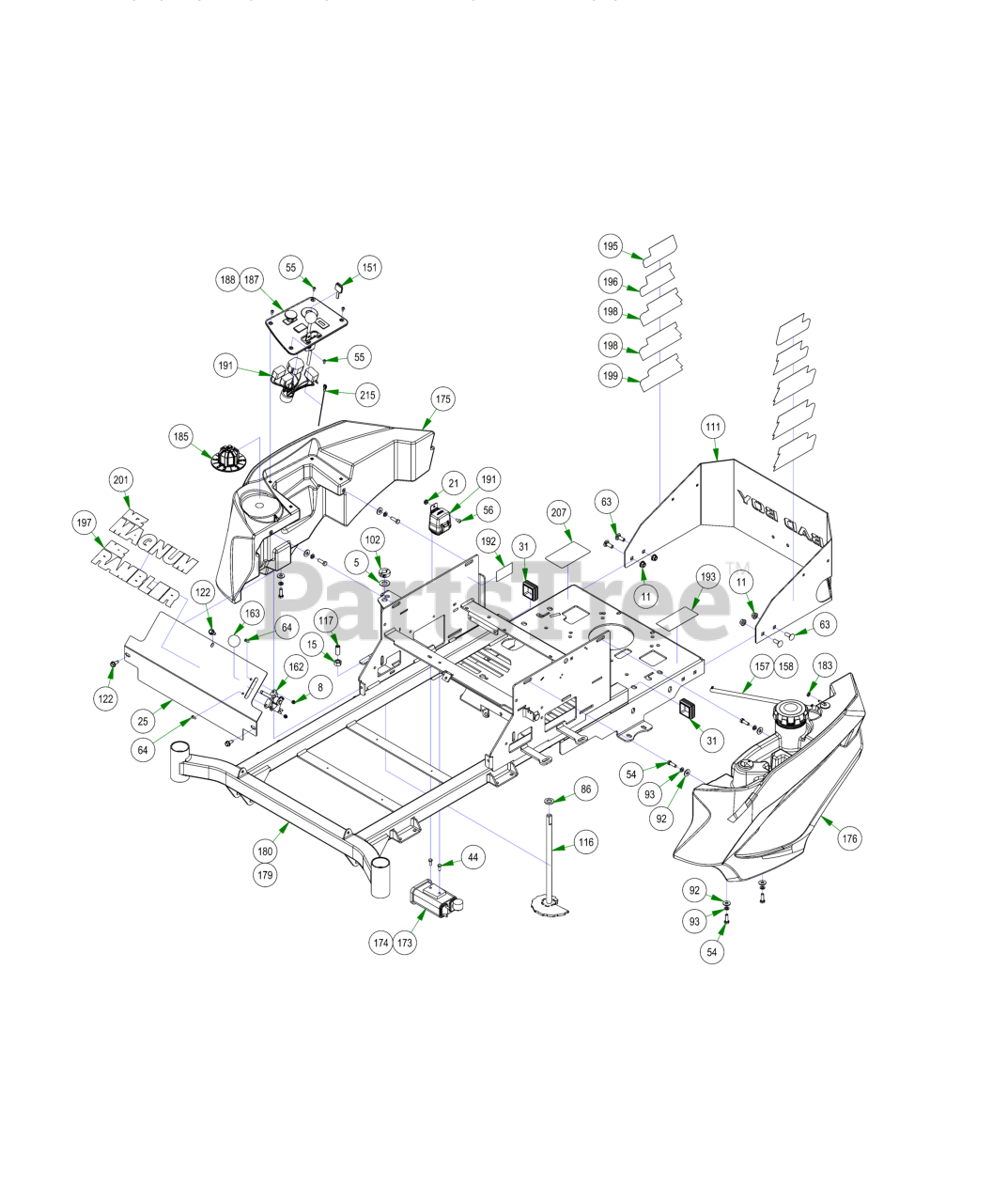

FUEL TANK & REAR COVER Parts Diagram

  • Title

5

Bad Boy 013-0080-00

.625 ID x 1.250 OD x .062 THK F/W Nylon

$1.99

$

Usually ships in 4-7 days

0

8

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 11

0

15

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

21

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 014-3317-22

2022 MZ Cooler Cover

$81.99

$

Usually ships in 4-7 days

0

31

Bad Boy 014-9000-00

2X2 Frame Plug

$2.99

$

Usually ships in 4-7 days

0

44

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 7

0

54

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

55

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

Usually ships in 4-7 days

0

56

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, only 4 left!

0

63

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

64

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, Qty 5

0

86

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

92

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

93

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

Usually ships in 4-7 days

0

102

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

111

Bad Boy 026-0223-00

2022 MZ Rear Plate

$62.99

$

Usually ships in 4-7 days

0

116

Bad Boy 028-0007-17

Deck Height Dial Rod Assembly

$30.99

$

Usually ships in 4-7 days

0

117

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

122

Bad Boy 030-7042-00

5/16-18 X 3/4HEX WASHER SLOT (F) TCS ZINC

$1.49

$

Usually ships in 4-7 days

0

151

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

157

Bad Boy 051-0001-00

15" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

158

Bad Boy 051-2014-00

37" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

162

Bad Boy 055-2012-00

Universal Throttle Head - 2012

$27.99

$

In Stock, only 3 left!

0

163

Bad Boy 055-2013-00

Throttle Knob

$13.99

$

In Stock, only 3 left!

0

173

Bad Boy 067-0015-01

MZ Kohler 42" EPA Canister Assembly

$45.99

$

Usually ships in 0 days

0

174

Bad Boy 067-0015-02

MZ Kohler EPA Canister Assembly

$60.99

$

Usually ships in 4-7 days

0

175

Bad Boy 067-2080-50

2017 MZ Right Gas Tank

$249.99

$

Usually ships in 4-7 days

0

176

Bad Boy 067-2090-50

2017 MZ Left Gas Tank

$272.99

$

Usually ships in 4-7 days

0

179

Bad Boy 070-5422-00

2022 MZ/ZT 54"-60" Frame

$

$

Currently unavailable

180

Bad Boy 070-5811-00

2022 MZ/ZT 42"-48" Frame

$

$

Not available

183

Bad Boy 072-8070-00

3/16 Vinyl Clamp

$1.99

$

Usually ships in 4-7 days

0

185

Bad Boy 077-9000-00

MZ/ZT Deck Height Dial

$22.99

$

In Stock, only 2 left!

0

187

Bad Boy 079-3460-02

2017 MZ Control Panel Assembly

$112.99

$

Usually ships in 4-7 days

0

188

Bad Boy 079-3460-19

2019 ZT/Maverick Control Panel Assembly

$164.99

$

Usually ships in 4-7 days

0

191

Bad Boy 086-3050-19

Wiring Harness

$341.99

$

Usually ships in 4-7 days

0

192

Bad Boy 091-0009-00

ANSI Decal BMZ54KT740

$2.99

$

Usually ships in 4-7 days

0

193

Bad Boy 091-0015-22

2022 EPA Build Date Punch Label

$

$

Not available

195

Bad Boy 091-0301-18

2018 MZ 541cc Back Plate Cluster

$15.99

$

Usually ships in 4-7 days

0

196

Bad Boy 091-0302-18

2018 MZ 725cc Back Plate Cluster

$15.99

$

Usually ships in 4-7 days

0

197

Bad Boy 091-0313-22

2022 Rambler Front Decal

$13.99

$

Usually ships in 4-7 days

0

198

Bad Boy 091-0318-18

2018 Magnum 725cc Back Plate Cluster

$15.99

$

Usually ships in 4-7 days

0

199

Bad Boy 091-0319-18

2018 Magnum 726cc Back Plate Cluster

$15.99

$

Usually ships in 4-7 days

0

201

Bad Boy 091-1046-22

2017 Magnum Cooler Cover Decal

$

$

Currently unavailable

207

Bad Boy 091-3017-00

Pump Belt Route Decal-Pump Plate

$5.49

$

Usually ships in 4-7 days

0

215

Bad Boy 216-1000-17

2017 MZ/ZT/MAV Tach Wire Assy

$7.99

$

Usually ships in 4-7 days

0
