MZ Magnum / MZ Rambler - Bad Boy Zero-Turn Mower (2022) TRANSAXLES SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

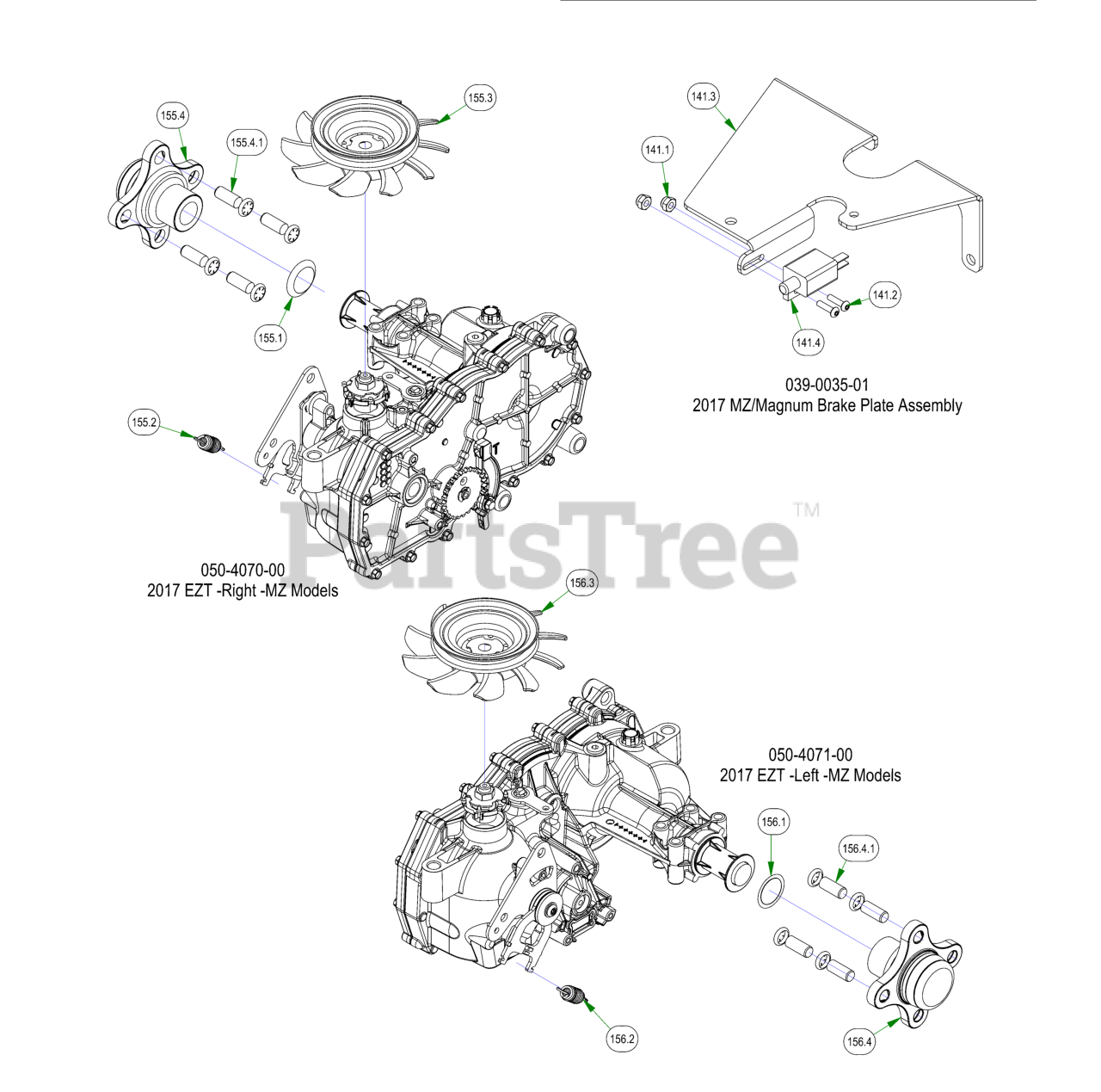

TRANSAXLES SUB ASSEMBLIES Parts Diagram

  • Title

141

Bad Boy 039-0035-01

2017 MZ/Magnum Brake Plate Assembly

$19.99

$

Usually ships in 4-7 days

0

155

Bad Boy 050-4070-00

2017 EZT -Right -MZ Models

$683.99

$

Usually ships in 4-7 days

0

156

Bad Boy 050-4071-00

2017 EZT -Left -MZ Models

$683.99

$

Usually ships in 4-7 days

0

141.1

Bad Boy 013-5019-00

#10 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

141.2

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

141.3

Bad Boy 039-0035-00

2017 MZ Brake Lock Bracket

$9.99

$

Usually ships in 4-7 days

0

141.4

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

155.1

Bad Boy 015-8003-00

MZ Seal & Retainer Kit

$110.99

$

Usually ships in 4-7 days

0

155.2

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 6

0

155.3

Bad Boy 050-2075-00

Fan/Pulley Kit for ZT / 2017 MZ

$131.99

$

In Stock, only 2 left!

0

155.4

Bad Boy 050-2078-00

MZ 4 Bolt Hub Kit

$101.99

$

Usually ships in 4-7 days

0

156.1

Bad Boy 015-8003-00

MZ Seal & Retainer Kit

$110.99

$

Usually ships in 4-7 days

0

156.2

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 6

0

156.3

Bad Boy 050-2075-00

Fan/Pulley Kit for ZT / 2017 MZ

$131.99

$

In Stock, only 2 left!

0

156.4

Bad Boy 050-2078-00

MZ 4 Bolt Hub Kit

$101.99

$

Usually ships in 4-7 days

0

155.4.1

Bad Boy 050-2012-00

Transaxle Wheel Studs/ Drum Brake Studs

$5.99

$

In Stock, Qty 5

0

156.4.1

Bad Boy 050-2012-00

Transaxle Wheel Studs/ Drum Brake Studs

$5.99

$

In Stock, Qty 5

0
