MZ Magnum / MZ Rambler - Bad Boy Zero-Turn Mower (2024) FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

Zero-Turn Mower

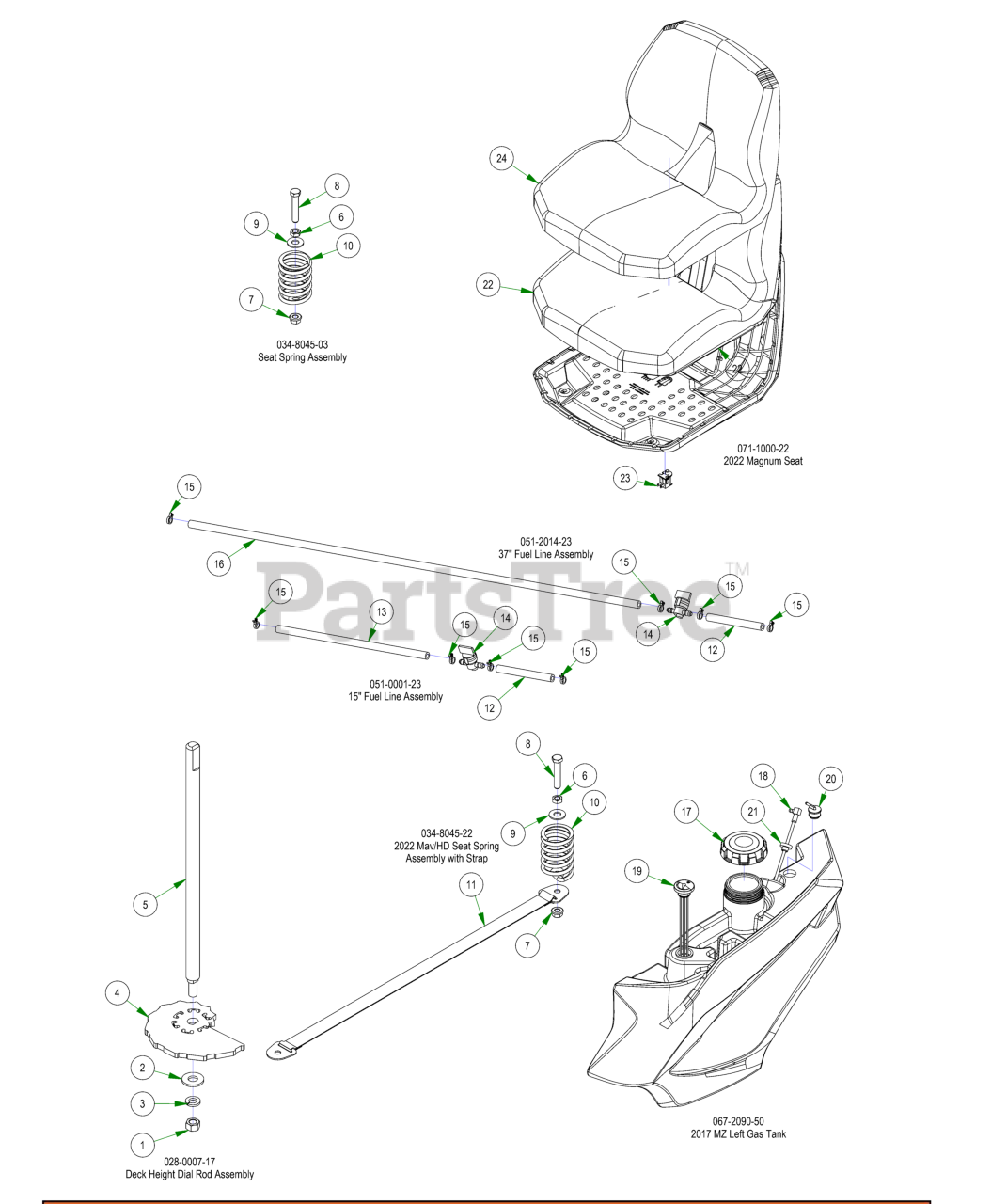

FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

  • Title

1

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

2

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 20+

0

3

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 20+

0

4

Bad Boy 026-1100-00

2017 MZ/ZT Cam Plate

$16.99

$

Usually ships in 4-7 days

0

5

Bad Boy 028-0007-00

2017 Deck Height Dial Rod MZ

$33.99

$

Usually ships in 4-7 days

0

6

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

7

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 20+

0

9

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 20+

0

10

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, Qty 5

0

11

Bad Boy 064-8083-00

Seat Strap with Buckles

$26.99

$

Usually ships in 4-7 days

0

12

Bad Boy 051-8067-00

4" 1/4 Fuel Line

$6.99

$

Usually ships in 4-7 days

0

13

Bad Boy 051-8067-00

11" 1/4 Fuel Line

$6.99

$

Usually ships in 4-7 days

0

14

Bad Boy 067-6057-00

2 Way Fuel Shut-Off Valve

$17.99

$

Usually ships in 4-7 days

0

15

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

Usually ships in 4-7 days

0

16

Bad Boy 051-2014-01

37" 1/4 Fuel Line

$20.99

$

Usually ships in 4-7 days

0

17

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 2 left!

0

18

Bad Boy 067-0011-00

Pick-Up

$24.99

$

Usually ships in 4-7 days

0

19

Bad Boy 067-4090-00

Fuel Gauge w/Grommet

$49.99

$

In Stock, Qty 9

0

20

Bad Boy 067-6070-00

Rollover Valve W/Grommet

$26.99

$

In Stock, Qty 18

0

21

Bad Boy 067-6080-00

Pick-Up Grommet

$8.49

$

In Stock, only 2 left!

0

22

Bad Boy 071-1003-00

SK120 Seat Foam for 071-1000-22

$

$

Currently unavailable

23

Bad Boy 071-1004-00

SeatSwitch for 071-1000-00/071-1000-22/071-2100-22
(Superseded to 071-5065-07)

$45.99

$

In Stock, only 1 left!

0

24

Bad Boy 071-1005-00

Bad Boy SK120 Cover with Logo for 071-1000-22

$125.99

$

Usually ships in 4-7 days

0
