MZ Magnum / MZ Rambler - Bad Boy Zero-Turn Mower (2024) TRANSAXLES SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

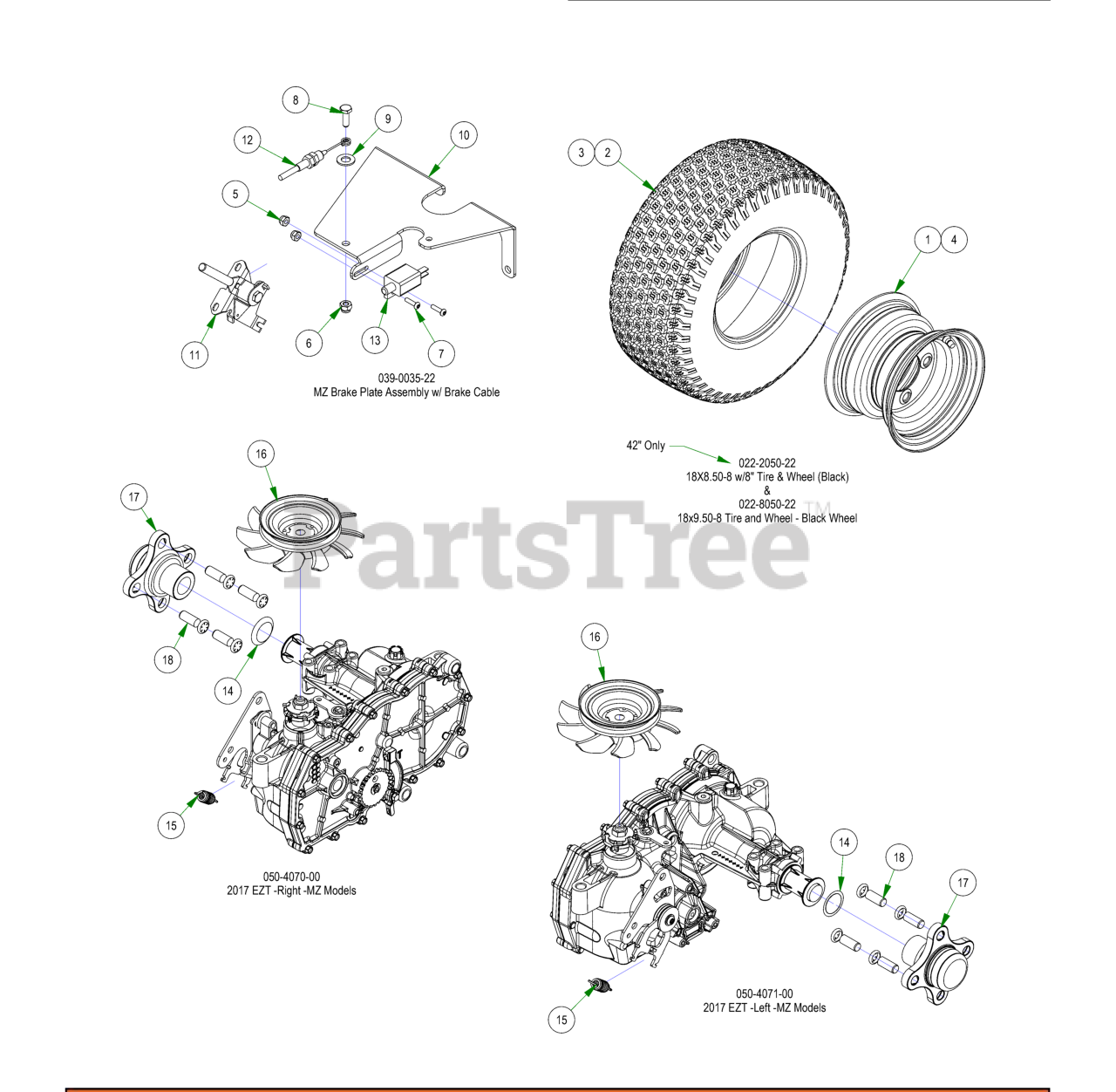

TRANSAXLES SUB ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 022-2051-22

Rim for 022-2050-22

$102.99

$

Usually ships in 4-7 days

0

2

Bad Boy 022-2052-22

Tire for 022-2050-22

$182.99

$

Usually ships in 4-7 days

0

3

Bad Boy 022-8025-00

18x9.50-8 Rear Tire Only 48 MZ

$191.99

$

Usually ships in 4-7 days

0

4

Bad Boy 022-8026-22

Black Rear Wheel 48in MZ

$62.99

$

Usually ships in 4-7 days

0

5

Bad Boy 013-5019-00

#10 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 013-8073-00

1/4-20 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

8

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 019-2003-00

.390 ID X .750 OD X .062 THK FLAT WASHER NYLON

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 039-0035-00

2017 MZ Brake Lock Bracket

$9.99

$

Usually ships in 4-7 days

0

11

Bad Boy 055-2012-00

Universal Throttle Head - 2012

$27.99

$

In Stock, only 1 left!

0

12

Bad Boy 064-8057-17

MZ Brake Cable

$27.99

$

In Stock, only 1 left!

0

13

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

14

Bad Boy 015-8003-00

MZ Seal & Retainer Kit

$110.99

$

Usually ships in 4-7 days

0

15

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 6

0

16

Bad Boy 050-2075-00

Fan/Pulley Kit for ZT / 2017 MZ

$131.99

$

In Stock, only 2 left!

0

17

Bad Boy 050-2078-00

MZ 4 Bolt Hub Kit

$101.99

$

Usually ships in 4-7 days

0

18

Bad Boy 050-2012-00

Transaxle Wheel Studs/ Drum Brake Studs

$5.99

$

In Stock, Qty 5

0
