MZ Magnum / MZ Rambler - Bad Boy Zero-Turn Mower (2025) TRANSAXLES Parts Diagram

Zero-Turn Mower

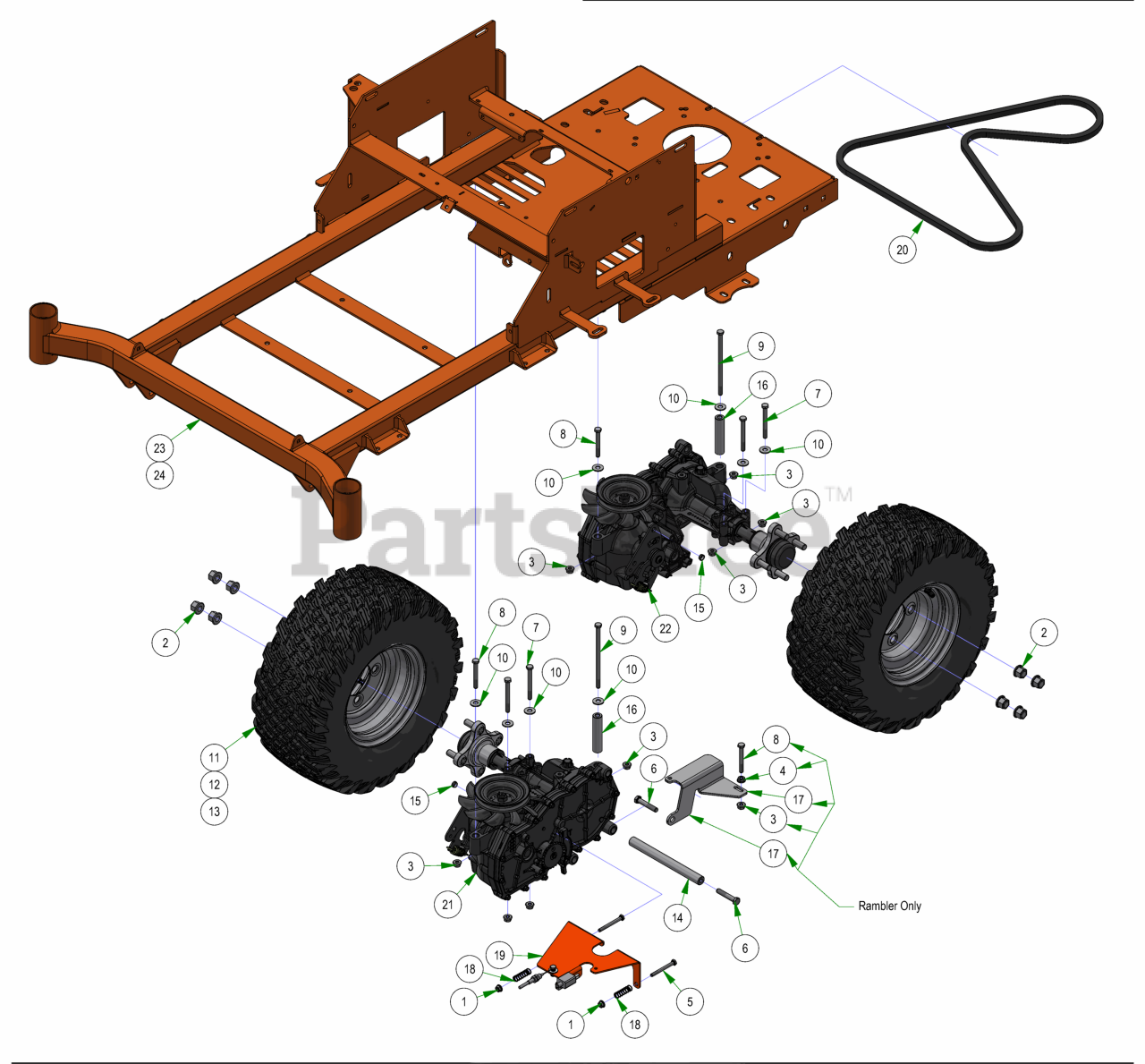

TRANSAXLES Parts Diagram

  • Title

1

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

2

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

Usually ships in 4-7 days

0

4

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-1076-00

1/4-20 X 2-1/2 HEX CAP SCREW (GR.2) ZINC

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

7

Bad Boy 018-4701-00

5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 018-5355-00

5/16-18 X 6 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, only 2 left!

0

10

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

11

Bad Boy 022-2050-25

Rear Wheel Assy Reaper (18x8.5-8)

$227.99

$

Usually ships in 0 days

0

12

Bad Boy 022-8050-22

18x9.50-8 Tire and Wheel - Black Wheel

$175.99

$

Usually ships in 4-7 days

0

13

Bad Boy 022-8050-25

Rear Wheel Assy Reaper (18x9.5-8)

$227.99

$

Usually ships in 4-7 days

0

14

Bad Boy 025-0016-00

2017 Transaxle Spacer-MZ

$14.99

$

Usually ships in 4-7 days

0

15

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

16

Bad Boy 025-0070-00

2017 Transaxle Spacer

$6.99

$

Usually ships in 4-7 days

0

17

Bad Boy 026-0368-00

Ogura Clutch Belt Retainer

$34.99

$

Usually ships in 4-7 days

0

18

Bad Boy 034-3050-00

Brake Spring

$1.49

$

In Stock, only 2 left!

0

19

Bad Boy 039-0035-22

MZ Brake Plate Assembly w/ Brake Cable

$56.99

$

Usually ships in 4-7 days

0

20

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

21

Bad Boy 050-4070-00

2017 EZT -Right -MZ Models

$683.99

$

Usually ships in 4-7 days

0

22

Bad Boy 050-4071-00

2017 EZT -Left -MZ Models

$683.99

$

Usually ships in 4-7 days

0

23

Bad Boy 070-2500-00

2025 MZ 42-48 Frame

$1025.99

$

Usually ships in 0 days

0

24

Bad Boy 070-2501-00

2025 MZ-Avenger 54-60 Frame

$1025.99

$

Usually ships in 0 days

0
