MZM 2300 KH (7084606) - Snapper Zero-Turn Mower, 23hp Kohler Engine Sub-Assembly Parts Diagram

Zero-Turn Mower, 23hp Kohler

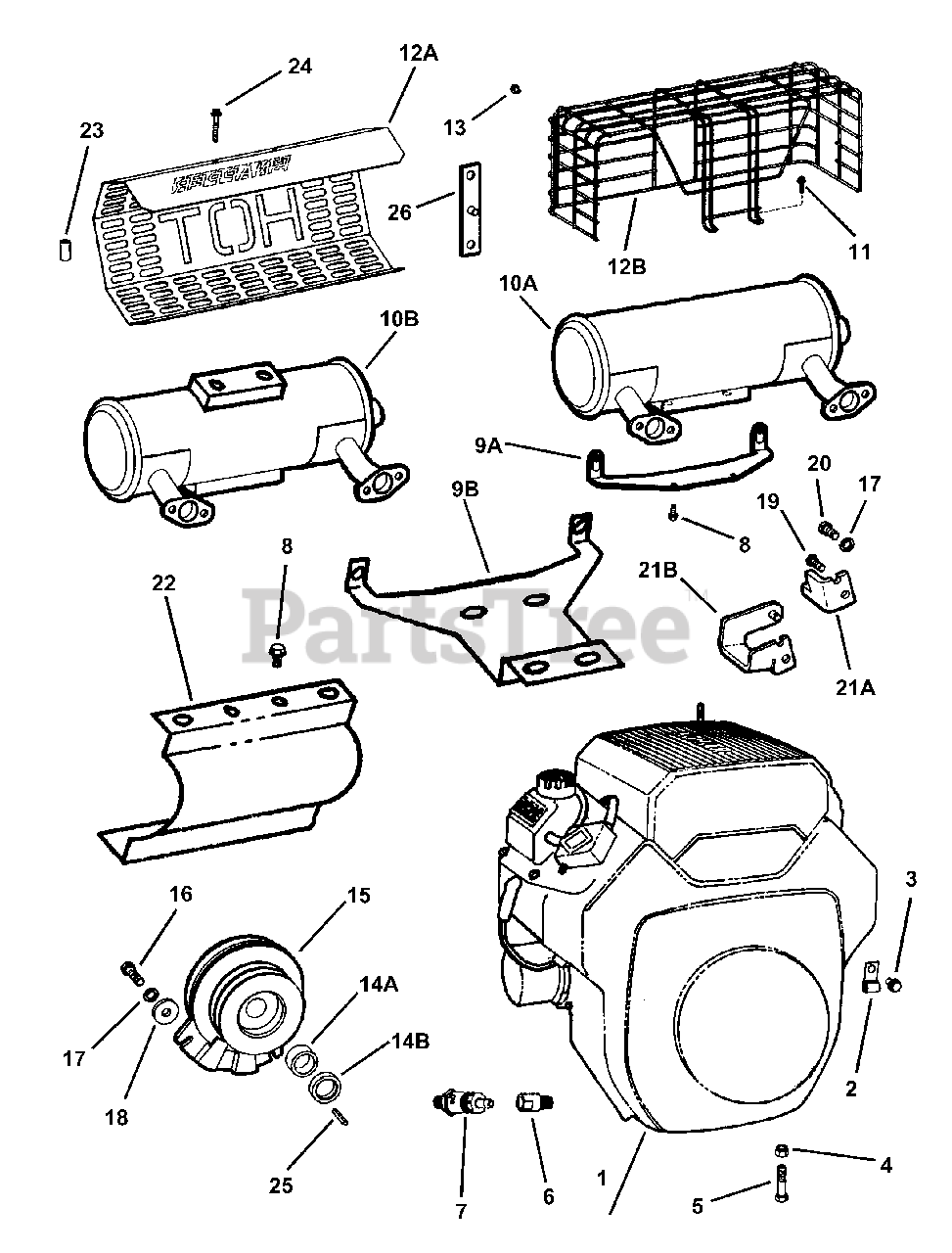

Engine Sub-Assembly Parts Diagram

  • Title

1

ENGINE, 22 HP (Kohler No. CH22S PS-66536)

$

$

Not available

ENGINE, 23 HP (Kohler No. CH23S PS-76536)

$

$

Not available

ENGINE, 25 HP (Kohler No. CH25S PS-68577)

$

$

Not available

2

Snapper Pro 7035638

J-CLIP, 3/8" Cushioned
(Superseded to 7035638YP)

Note: Included with engine.

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 7091523

SCREW, 5/16-18 x 5/8" Hex Washer Self Tap
(Superseded to 703949)

Note: Included with engine.

$3.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 7

0

5

Snapper Pro 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, Grade 5

$

$

Not available

6

Snapper Pro 7022486

OIL DRAIN, Short

$

$

Currently unavailable

7

Snapper Pro 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$26.99

$

In Stock, only 4 left!

0

8

SCREW, M6 x 1 x 6mm Hex Flange Cap

Note: (Qty. 2 for 22 HP; Qty. 4 for 25 HP) (Kohler part no. M-0650012); Included with engine. (Was 91838)

$

$

Not available

9A

Snapper Pro 7042708

BRACKET, Muffler, 22HP Kohler (Kohler P/N 24 126 10)
(Superseded to 7042708YP)

Note: Included with engine.

$

$

Not available

9B

Snapper Pro 7046486

BRACKET, Muffler, 25HP Kohler (Series 0)(Kohler P/N 24 126 48)

Note: Included with engine.

$

$

Currently unavailable

10A

MUFFLER, 22HP Kohler (Kohler P/N A-24 068 00)

Note: Included with engine.

$

$

Not available

10B

Snapper Pro 7046488

MUFFLER, 25HP Kohler (Kohler P/N A-24 068 17)

Note: Included with engine.

$

$

Currently unavailable

11

SCREW, M5 x 8 x 16mm Hex Head Self Tapping (Kohler # M-0545016)

Note: Included with engine. (Was 91839)

$

$

Not available

12A

Snapper Pro 7042707

GUARD, Muffler (Kohler P/N 24 13 02-1)

Note: Included with engine.

$

$

Currently unavailable

12B

Snapper Pro 7072155

GUARD, Muffler
(Superseded to 7072155YP)

Note: (Used on ZMT2500KH & ZM2501KH models); Included with engine.

$121.99

$

In Stock, only 1 left!

0

13

SCREW, M5 x 8 x 10mm Hex Head Flange (Kohler #M0550010)

Note: Included with engine. (Was 91840)

$

$

Not available

14A

Snapper Pro 7035675

SPACER, Clutch
(Superseded to 7035675YP)

$55.99

$

Usually ships in 2-12 days

0

14B

Snapper Pro 7046410

SPACER, Clutch (Model MZM2200KH Only)
(Superseded to 7046410YP)

$57.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7058925

CLUTCH, Electric
(Superseded to 7058925YP)

Note: Was 35520

$897.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5404075

CLUTCH, Electric (Model MZM2200KH Only)

Note: Was 7046409

$

$

Not available

16

Snapper Pro 7091763

SCREW, 7/16-20 x 1-1/2" Hex Head Cap. Grade 5
(Superseded to 7091763YP)

Note: Was 91806

$3.99

$

In Stock, only 1 left!

0

17

Snapper Pro 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

18

Snapper Pro 7091807

WASHER, 7/16 I.D. x 1-3/8 O.D. x 1/4 Flat
(Superseded to 7091807SM)

$

$

Not available

Snapper Pro 7091962

WASHER, 7/16" I.D.x 1-5/8" O.D. x 1/4 Flat
(Superseded to 7091962SM)

$8.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 20+

0

20

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

21A

Snapper Pro 7035852

BRACKET, Anti-Rotation (5/16")

$

$

Not available

21B

Snapper Pro 7058207

BRACKET, Anti-Rotation (Model MZM2200KH Only)
(Superseded to 7058207YP)

$54.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 7046487

SHIELD, Heat, 25HP Kohler

$

$

Currently unavailable

23

Snapper Pro 7072256

SPACER, Muffler Guard
(Superseded to 7072256YP)

$9.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 7092016

SCREW, 1/4-20 x 1-1/2" Hex Washer Self-Tap
(Superseded to 7092016YP)

$3.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7013250

KEY, 1/4 Square x 1"
(Superseded to 5050407X8SM)

$4.49

$

In Stock, Qty 19

0

26

Snapper Pro 7058207

BRACKET, Torque
(Superseded to 7058207YP)

Note: Was 46411

$54.99

$

Usually ships in 2-12 days

0
