MZT 52 (967177001-00) - Husqvarna 52" Zero-Turn Mower (2013-01) IGNITION SYSTEM Parts Diagram

52" Zero-Turn Mower

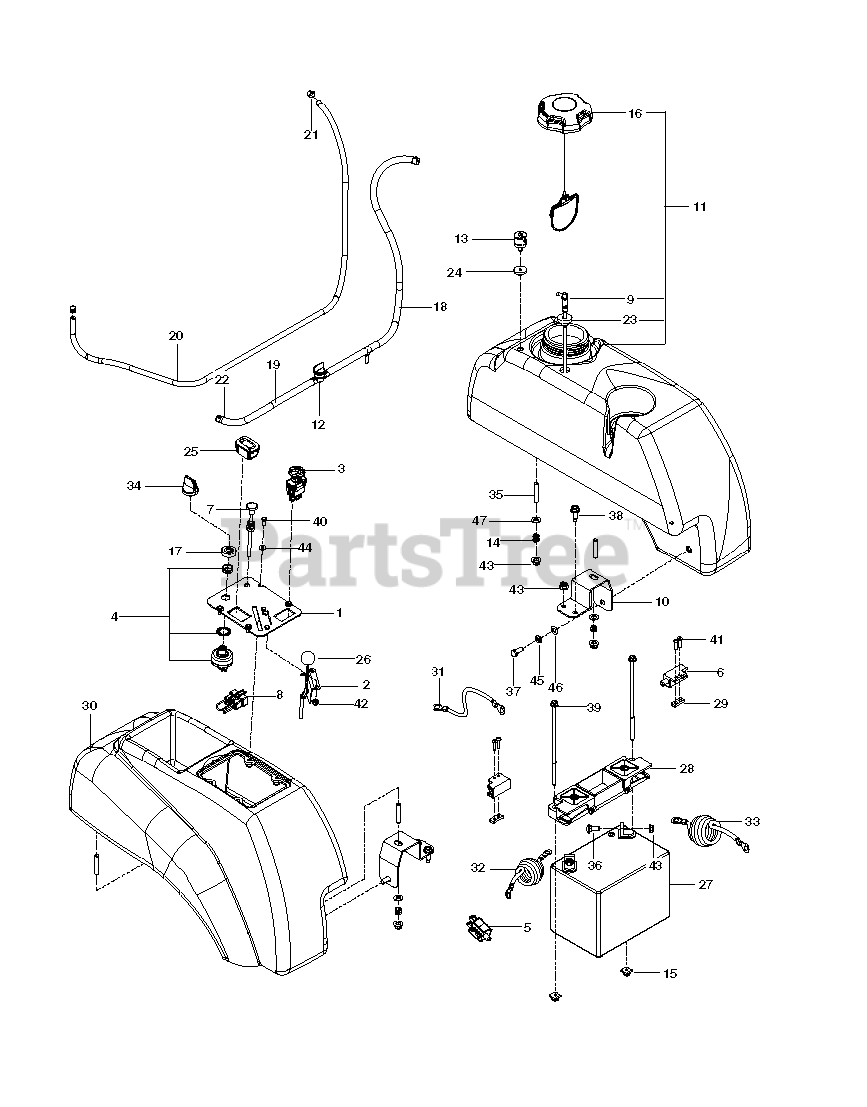

IGNITION SYSTEM Parts Diagram

  • Title

21

Husqvarna 575436501

CLAMP, HOSE

$3.99

$

In Stock, Qty 5

0

37

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539102678

TAPPED PLATE

$21.99

$

In Stock, Qty 8

0

31

Husqvarna 539104974

POST.CABLE LONG

$

$

Not available

35

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 2 left!

0

17

Husqvarna 539103178

CAP IGNITION NUT

$5.99

$

In Stock, only 1 left!

0

42

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$9.49

$

In Stock, Qty 12

0

11

Husqvarna 576368102

Note: LT

$

$

Currently unavailable

41

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$3.99

$

In Stock, Qty 5

0

34

Husqvarna 574455501

KEY, IGNITION

$6.99

$

In Stock, Qty 20+

0

10

Husqvarna 539131671

SUPPORT, TANK, BLK

$79.99

$

In Stock, only 2 left!

0

20

Husqvarna 576660602

HOSE, VAPOR 3/16 X 48"

$41.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574841204

PLATE.CONSOLE.BLACK
(Superseded to 592877402)

$7.49

$

In Stock, Qty 9

0

15

Husqvarna 539107629

PUSH NUT-NYLON

$3.99

$

In Stock, only 1 left!

0

44

Husqvarna 539105408

WASHER #10

$4.99

$

In Stock, Qty 8

0

9

Husqvarna 576469201

FITTING, FUEL

$29.99

$

In Stock, Qty 12

0

28

Husqvarna 539107628

BATTERY HOLD DOWN

$7.49

$

In Stock, Qty 9

0

32

Husqvarna 539102757

CABLE POSITIVE

$7.49

$

In Stock, only 2 left!

0

12

Husqvarna 539916325

FUEL VALVE

$13.99

$

In Stock, only 2 left!

0

4

Husqvarna 574455401

SWITCH, IGNITION, INDAK

$41.99

$

In Stock, Qty 20+

0

22

Husqvarna 539912222

HOSE CLAMP

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539107765

HOSE, FUEL .25 ID X 26"

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 575321001

PLUG, TIMER

$20.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, Qty 12

0

38

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539107645

NEG. CABLE, 28"

$

$

Not available

39

Husqvarna 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

24

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

3

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

25

Husqvarna 532401763

RP.GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$

$

Not available

16

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$39.99

$

In Stock, only 2 left!

0

45

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$23.99

$

In Stock, Qty 20+

0

14

Husqvarna 539102845

SPRING

$3.99

$

In Stock, only 4 left!

0

13

Husqvarna 576618101

VALVE.FUEL.CHECK

$30.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

7

Husqvarna 574206903

CABLE, CHOKE, 38
(Superseded to 531077201)

$15.99

$

In Stock, only 2 left!

0

Husqvarna 575320901

HARNESS, MAIN

Note: NOT SHOWN

$227.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 539112438

THROTTLE CABLE
(Superseded to 597873201)

$53.99

$

In Stock, only 2 left!

0

40

Husqvarna 539990411

HCS #10-24 X 1/2
(Superseded to 596582801)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539113792

SWITCH, BRAKE 3P

$23.99

$

In Stock, Qty 20+

0

30

Husqvarna 539107593

FENDER CONSOLE

$159.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539932956

GAS LINE 10"

$

$

Not available
