MZT 52 - Husqvarna 52" Zero-Turn Mower FRAME Parts Diagram

52" Zero-Turn Mower

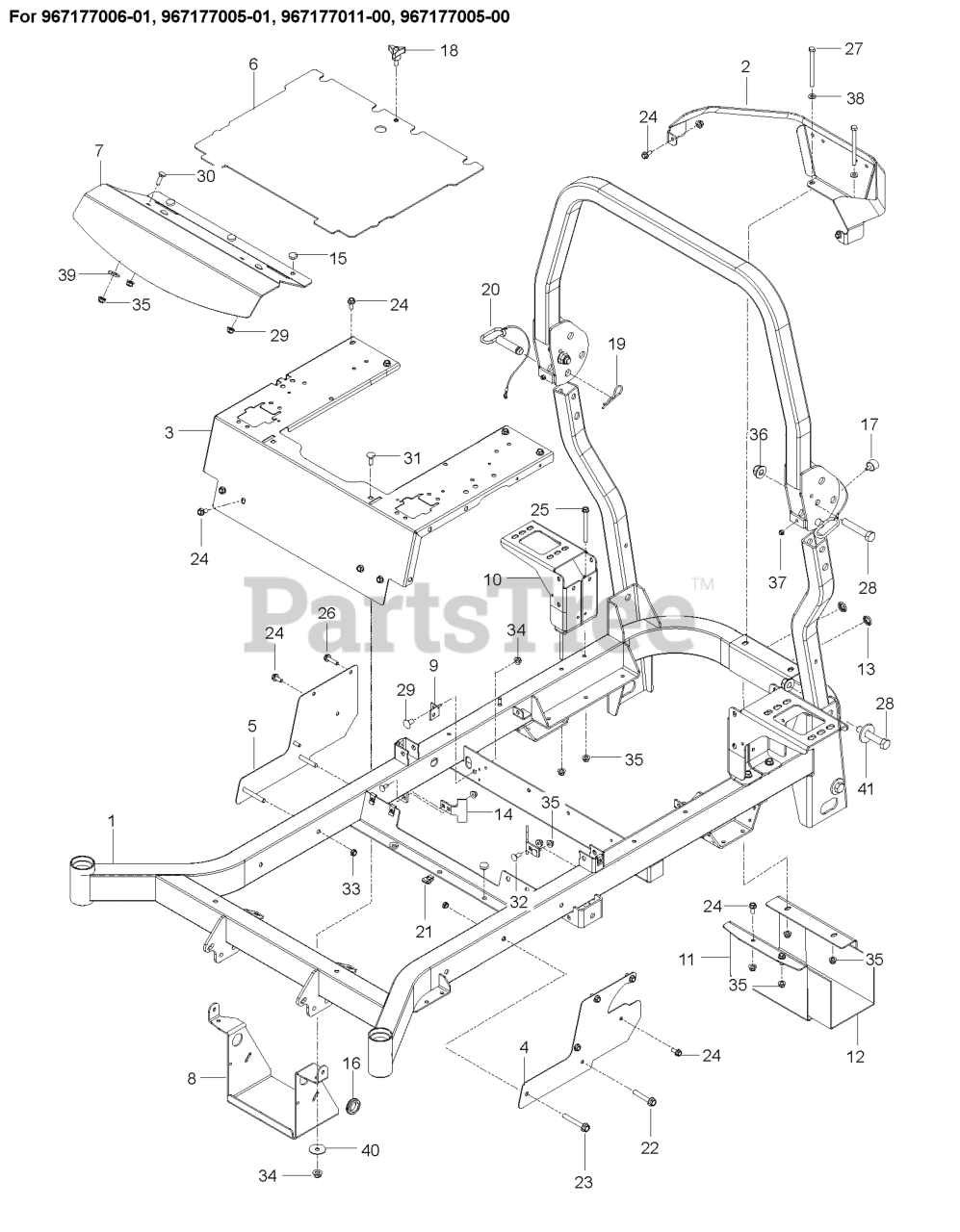

FRAME Parts Diagram

  • Title

25

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$5.99

$

In Stock, only 4 left!

0

33

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.49

$

In Stock, only 2 left!

0

17

Husqvarna 522801401

BUMPER, MALE STUD, 1/4-20

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD
(Superseded to 596581901)

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 505256401

STOP, DECK, EZ+

$22.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

40

Husqvarna 819132416

WASHER.13/32X1-1/2X16GA
(Superseded to 596133301)

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 12

0

8

Husqvarna 594037402

BRACKET BATTERY BLACK MS-431

Note: For 967177006-01, 967177005-01, 967177011-00, 967177005-00

$62.99

$

Usually ships in 3-10 days

0

Husqvarna 575274801

ROPS KIT MZ/MZT

Note: NOT SHOWN PROTECTION FRAME

$593.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539132744

PLATE, FLOOR W/DECALS

$159.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 9

0

27

Husqvarna 539102335

HCS 5/16C X 4

$

$

Not available

36

Husqvarna 525829101

NUT 5/8-11 FLG NYLOC ZD

$

$

Not available

37

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 587048702

BRACKET.PNT.BATTERY.BLK

Note: For 967844001-00

$56.99

$

Usually ships in 3-10 days

0

28

Husqvarna 580754601

5/8-11 X 3-1/2 HHB GRADE 5

$

$

Not available

41

Husqvarna 539102653

WASHER, 5/8 FLAT
(Superseded to 594946401)

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 587990501

CAP.PLUG.BP-1.BLACK

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 575230402

SHIELD.MUFFLER.BLACK

$102.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

3

Husqvarna 586867702

SUPPORT.PNT.SEAT.CONTROL.ORNG
(Superseded to 598704902)

$96.99

$

Usually ships in 3-10 days

0

4

Husqvarna 586560101

BRACKET SIDE, LT ORANGE

$

$

Not available

19

Husqvarna 539200715

PIN HAIR .148 X 2-15/16 #210

$

$

Not available

34

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

9

Husqvarna 575245202

BRACKET.DAMPENER.BLACK

Note: For 967844001-00

$22.99

$

In Stock, only 4 left!

0

38

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 14

0

10

Husqvarna 575533602

MOUNT, TANK, ZT BLK

$68.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539132859

HEAT SHIELD

$20.99

$

Usually ships in 3-10 days

0

5

Husqvarna 586560201

BRACKET SIDE, RT ORANGE

$28.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

In Stock, only 1 left!

0

39

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 6

0

35

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

1

Husqvarna 501656001

KIT.FRAME.W/DECALS.X668

$2849.99

$

Usually ships in 3-10 days

0

23

Husqvarna 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD
(Superseded to 596436901)

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575245202

BRACKET.DAMPENER.BLACK

Note: For 967177006-01, 967177005-01, 967177011-00, 967177005-00

$22.99

$

In Stock, only 4 left!

0

7

Husqvarna 539132380

PLATE, FOOTREST

$136.99

$

Usually ships in 3-10 days

0

29

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 586893002

GUARD.PNT.REAR.MZ.GRAY
(Superseded to 582693702)

$102.99

$

Usually ships in 3-10 days

0

20

Husqvarna 574388001

PIN, ROPS

$

$

Not available

30

Husqvarna 539990208

RHSNB 5/16C X 1

$

$

Not available
