MZT 52 - Husqvarna 52" Zero-Turn Mower SEAT Parts Diagram

52" Zero-Turn Mower

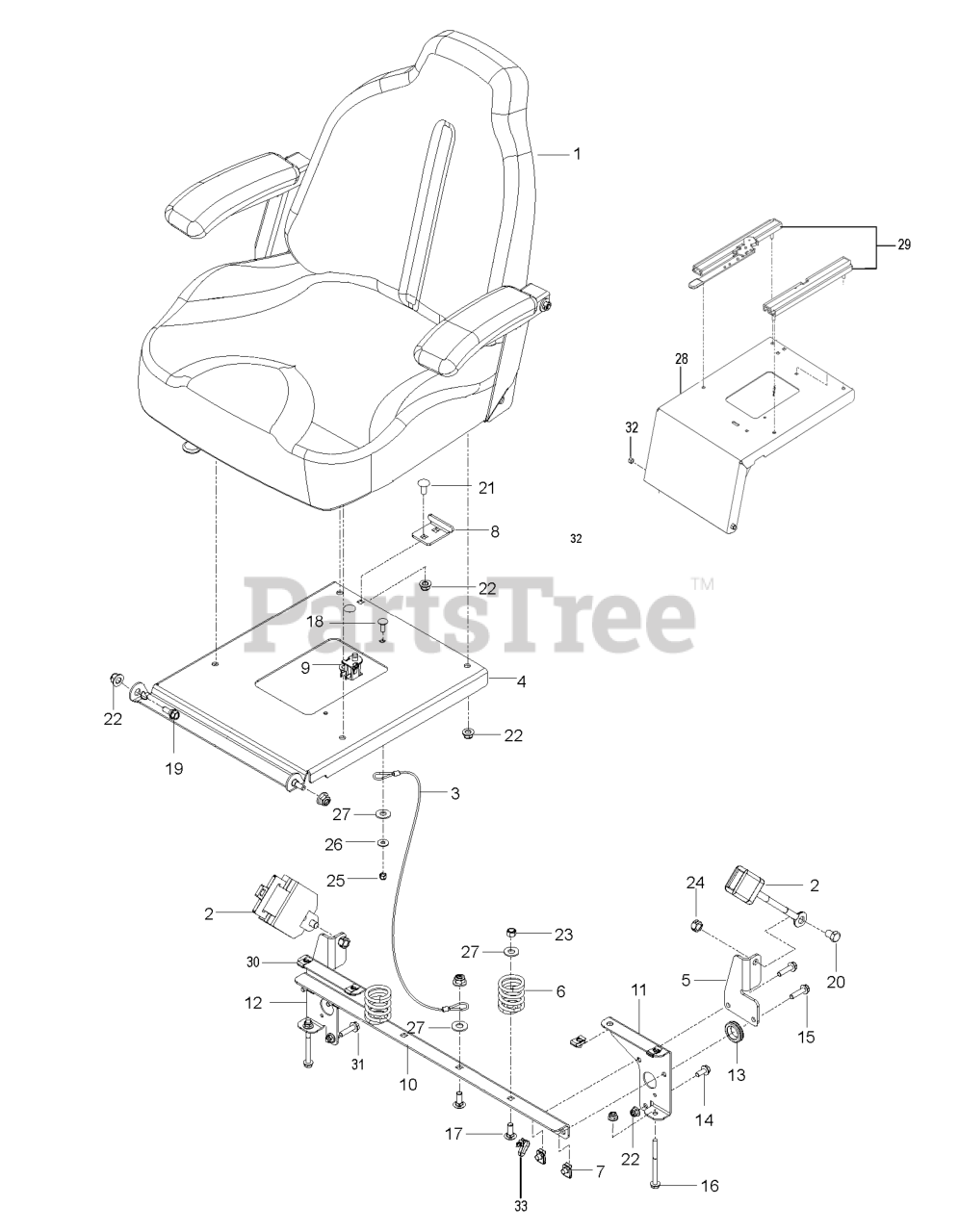

SEAT Parts Diagram

  • Title

15

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 575224002

SUPPORT, RT, BLK

Note: For 967177005-00, 967177006-00, 967177001-00

$22.99

$

Usually ships in 3-10 days

0

11

Husqvarna 584990102

SUPPORT.RT.BLK

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 6

0

23

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$136.99

$

Usually ships in 3-10 days

0

22

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

Note: For 967177006-01, 967177005-01, 967177011-00

$

$

Not available

3

Husqvarna 539103247

SEAT LANYARD

$20.99

$

In Stock, only 1 left!

0

31

Husqvarna 525464701

HHFS 5/16-18 X 3/4

Note: For 967177005-00, 967177006-00, 967177001-00

$3.49

$

In Stock, only 1 left!

0

30

Husqvarna 575224102

SUPPORT, LT, BLK

Note: For 967177005-00, 967177006-00, 967177001-00

$62.99

$

Usually ships in 3-10 days

0

10

Husqvarna 584809102

SUPPORT.SEAT. BLK

Note: For 967177006-01, 967177005-01, 967177011-00

$43.99

$

Usually ships in 3-10 days

0

27

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

21

Husqvarna 872050506

RHSNB 5/16-18 X 3/4 GR5 BLK ZN
(Superseded to 539109100)

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For 967844001-00

$6.99

$

In Stock, Qty 20+

0

13

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

14

Husqvarna 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

Note: For 967177005-00, 967177006-00, 967177001-00

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$17.99

$

In Stock, Qty 12

0

5

Husqvarna 575017402

MOUNT, SEAT BELT, BLACK

Note: For 967177005-00, 967177006-00, 967177001-00

$

$

Not available

19

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$11.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00

$3.49

$

In Stock, only 3 left!

0

29

Husqvarna 576702004

4"SINGLE LOCK TRACK SET W/HDWR

Note: For 967177005-00, 967177006-00, 967177001-00

$227.99

$

In Stock, only 1 left!

0

5

Husqvarna 584916802

MOUNT.SEAT.BELT.BLACK

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

Note: For 967177005-00, 967177006-00, 967177001-00

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

Note: For 967177005-00, 967177006-00, 967177001-00

$3.49

$

In Stock, only 3 left!

0

8

Husqvarna 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 584990202

SUPPORT.LT.BLK

$6.99

$

In Stock, only 4 left!

0

1

Husqvarna 501580402

SEAT.ASM.907.TRACK.W/O.BELT

$968.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539131656

SUPPORT, SEAT

Note: For 967177005-00, 967177006-00, 967177001-00

$170.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539124775

SCREW 7/16-20 X 1 HHB GR5

Note: For 967177006-01, 967177005-01, 967177011-00, 967177005-00, 967177006-00, 967177001-00

$13.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587613301

SPRING.COMPRESSION.SEAT.BLACK

$6.99

$

In Stock, Qty 12

0

26

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00

$3.49

$

In Stock, only 3 left!

0

16

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00

$5.99

$

In Stock, only 4 left!

0

16

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4
(Superseded to 596241601)

Note: For 967177005-00, 967177006-00, 967177001-00

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 501762102

SUPPORT.SEAT.ORANGE
(Superseded to 596300901)

$74.99

$

In Stock, Qty 10

0

17

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 575608601

KIT.SEAT.MOUNT.W/DECAL

Note: For 967177005-00, 967177006-00, 967177001-00

$205.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539112034

HCS 7/16-20 X .75 GD 5

Note: For 967844001-00

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 539990394

NUT HEX 7/16F LOCK RP

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

Note: For 967177005-00, 967177006-00, 967177001-00

$17.99

$

In Stock, Qty 20+

0
