MZT 61 BF (967177010-01) - Husqvarna 61" Zero-Turn Mower (2015-06) WHEELS & TIRES Parts Diagram

61" Zero-Turn Mower

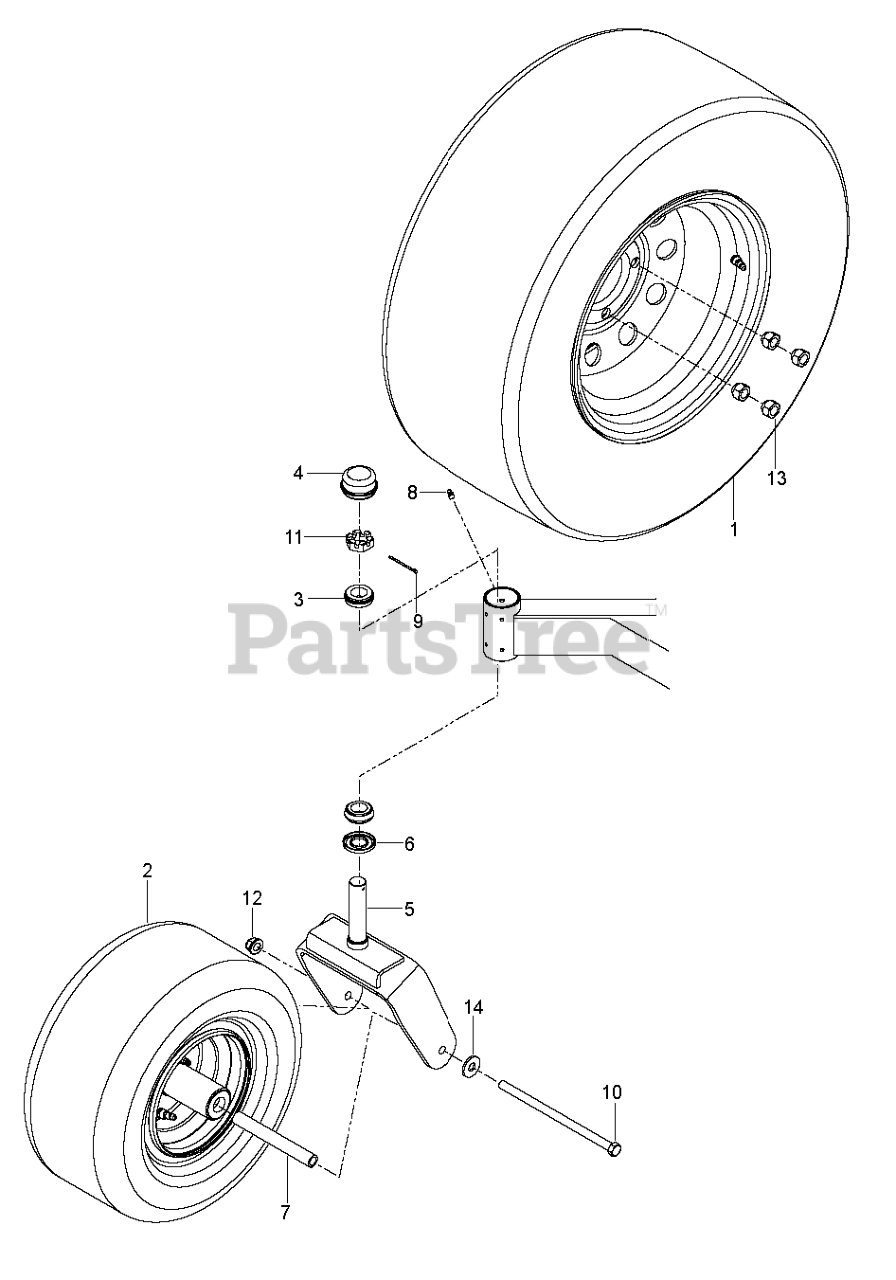

WHEELS & TIRES Parts Diagram

  • Title

11

Husqvarna 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

14

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

12

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 12

0

7

Husqvarna 575334901

SPACER, PIVOT

$20.99

$

In Stock, only 1 left!

0

10

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5
(Superseded to 594946501)

$6.99

$

In Stock, Qty 5

0

13

Husqvarna 587653902

NUT.1/2-20.UNF-2B.GR.8.YL

$

$

Not available

5

Husqvarna 586921902

FORK.CASTER.ASM.PNT.668

$56.99

$

In Stock, only 2 left!

0

4

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

In Stock, Qty 7

0

9

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

2

Husqvarna 581199501

TIRE.ASSEM.CASTER.13X6.5-6.SIL

$227.99

$

In Stock, only 2 left!

0

1

Husqvarna 586955401

WHEEL.ASM.23X10.50-12 1.375SLV

$376.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102543

TAPERED ROLLER BRG

$22.99

$

Usually ships in 3-10 days

0

Husqvarna 582746401

TIRE.23X10.5-12.K500.SERVICE

$319.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102851

SEAL

$7.99

$

In Stock, only 2 left!

0

8

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.49

$

In Stock, Qty 10

0
