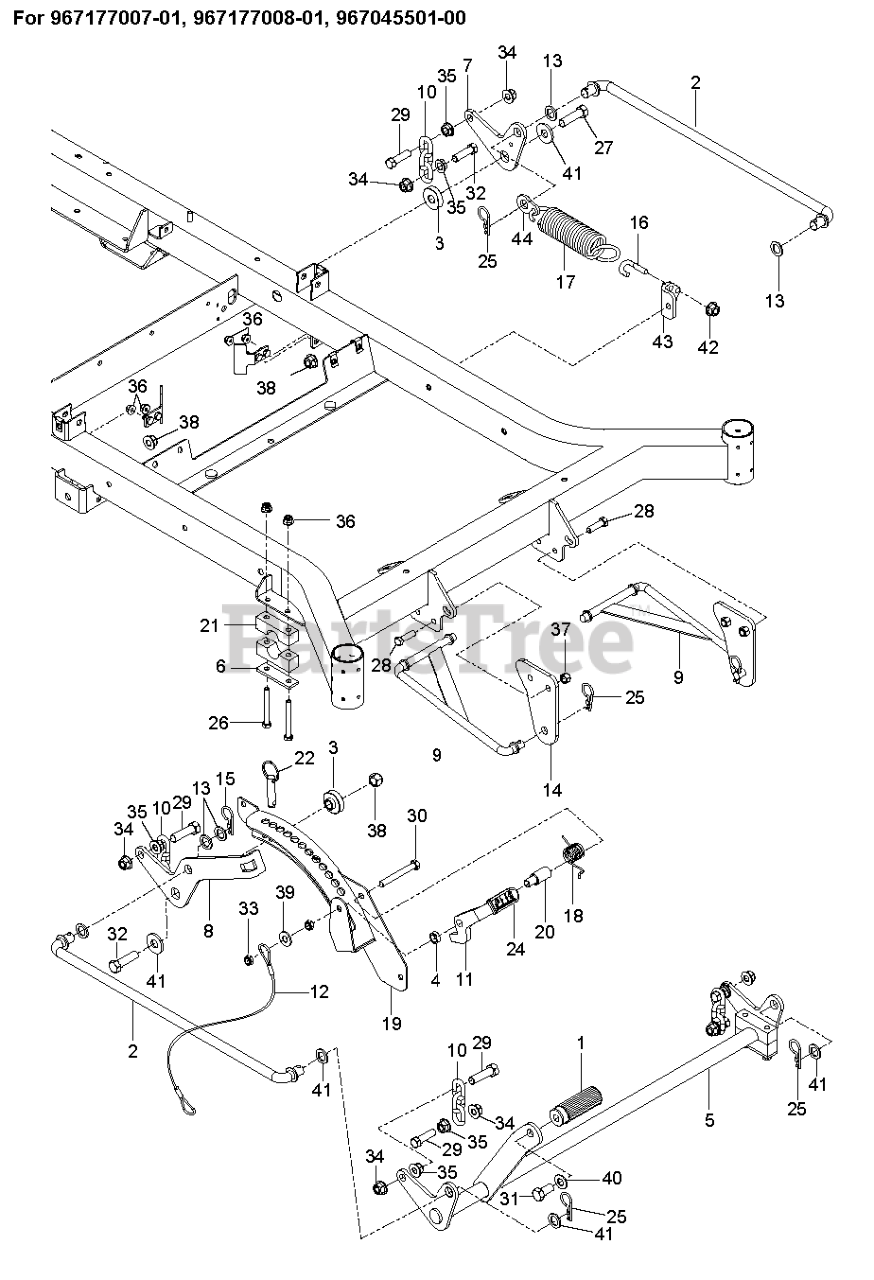

MZT 61 - Husqvarna 61" Zero-Turn Mower MOWER LIFT / DECK LIFT 2 Parts Diagram

61" Zero-Turn Mower

MOWER LIFT / DECK LIFT 2 Parts Diagram

  • Title

7

Husqvarna 539131897

BELLCRANK, RR, LIFT

$8.49

$

Usually ships in 3-10 days

0

6

Husqvarna 584392702

REINFORCEMENT.PLATEX431

$13.99

$

In Stock, only 2 left!

0

4

Husqvarna 539131861

SPACER, .3
(Superseded to 596515201)

$9.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539109693

LIFT CHAIN - 3 LINK

$

$

Not available

35

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

31

Husqvarna 539990646

HHCS 1/2-13 X 1
(Superseded to 596583601)

$3.49

$

In Stock, only 1 left!

0

11

Husqvarna 539131566

LATCH, TRANSPORT
(Superseded to 596783301)

$22.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4
(Superseded to 596438501)

$3.49

$

In Stock, only 4 left!

0

40

Husqvarna 539115528

CONTACT BELLSPR 1/2

$

$

Not available

8

Husqvarna 539131853

BELLCRANK, RR, RT

$31.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539108181

HCS 1/2-13 X 1 3/4 GR 8
(Superseded to 596435801)

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539110808

CROSS LINK

$

$

Not available

5

Husqvarna 586928702

LIFT.PNT.MZ.DECK.WELD.E-DIP

$62.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539132017

MOUNT, STRUT

$26.99

$

Usually ships in 3-10 days

0

39

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539112896

J-BOLT
(Superseded to 596917401)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539112223

STRUT LINKAGE

$34.99

$

In Stock, Qty 20+

0

37

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 6

0

22

Husqvarna 539132182

PIN, 1/2 X 1 1/2, DETENT RING
(Superseded to 596917901)

$9.49

$

In Stock, only 1 left!

0

25

Husqvarna 539115501

PIN, COTTER 1 3/4

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 510408301

PEDAL, DECK HEIGHT
(Superseded to 510408302)

$34.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539131792

TAB, SPRING

Note: For 967177007-01

$79.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539132019

NUT 7/16-14 HEX WHIZ LK
(Superseded to 873900700)

$4.99

$

In Stock, Qty 17

0

42

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For 967177007-01

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 874780544

BOLT HEX
(Superseded to 596218601)

Note: For 967177008-01, 967045501-00

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539132734

SPRING, TORSION

$

$

Not available

41

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

Note: For 967177008-01, 967045501-00

$

$

Not available

17

Husqvarna 539102642

SPRING

Note: For 967177007-01

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539132851

GRIP, TRANSPORT-RELEASE

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

Note: For 967177007-01

$3.49

$

In Stock, only 2 left!

0

17

Husqvarna 539131790

NEEDS DESCRIPTION

Note: For 967177008-01, 967045501-00

$

$

Currently unavailable

13

Husqvarna 819211616

WASHER LT
(Superseded to 596933401)

Note: For 967177008-01, 967045501-00

$3.49

$

In Stock, only 1 left!

0

28

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 539101175

HCS 7/16C X 1 1/2
(Superseded to 594944601)

$3.49

$

In Stock, only 3 left!

0

36

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For 967177008-01, 967045501-00

$6.99

$

In Stock, Qty 20+

0

33

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.49

$

In Stock, only 2 left!

0

20

Husqvarna 539131860

PIVOT, LATCH, TRANSPORT
(Superseded to 596517401)

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5
(Superseded to 596564405)

$3.49

$

In Stock, Qty 8

0

38

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

Note: For 967177008-01, 967045501-00

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

Note: For 967177008-01, 967045501-00

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 539131791

MOUNT, SPRING

Note: For 967177007-01

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

Note: For 967177007-01

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 586701701

SPACER.IDLER.METAL.POWDER
(Superseded to 586701702)

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539101721

HCS 5/16C X 2-3/4

Note: For 967177007-01

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539105059

LANYARD

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 539991043

BUSHING
(Superseded to 596933401)

Note: For 967177007-01

$3.49

$

In Stock, only 1 left!

0

19

Husqvarna 539131850

HEIGHT, ADJUST, DECK

$

$

Not available
