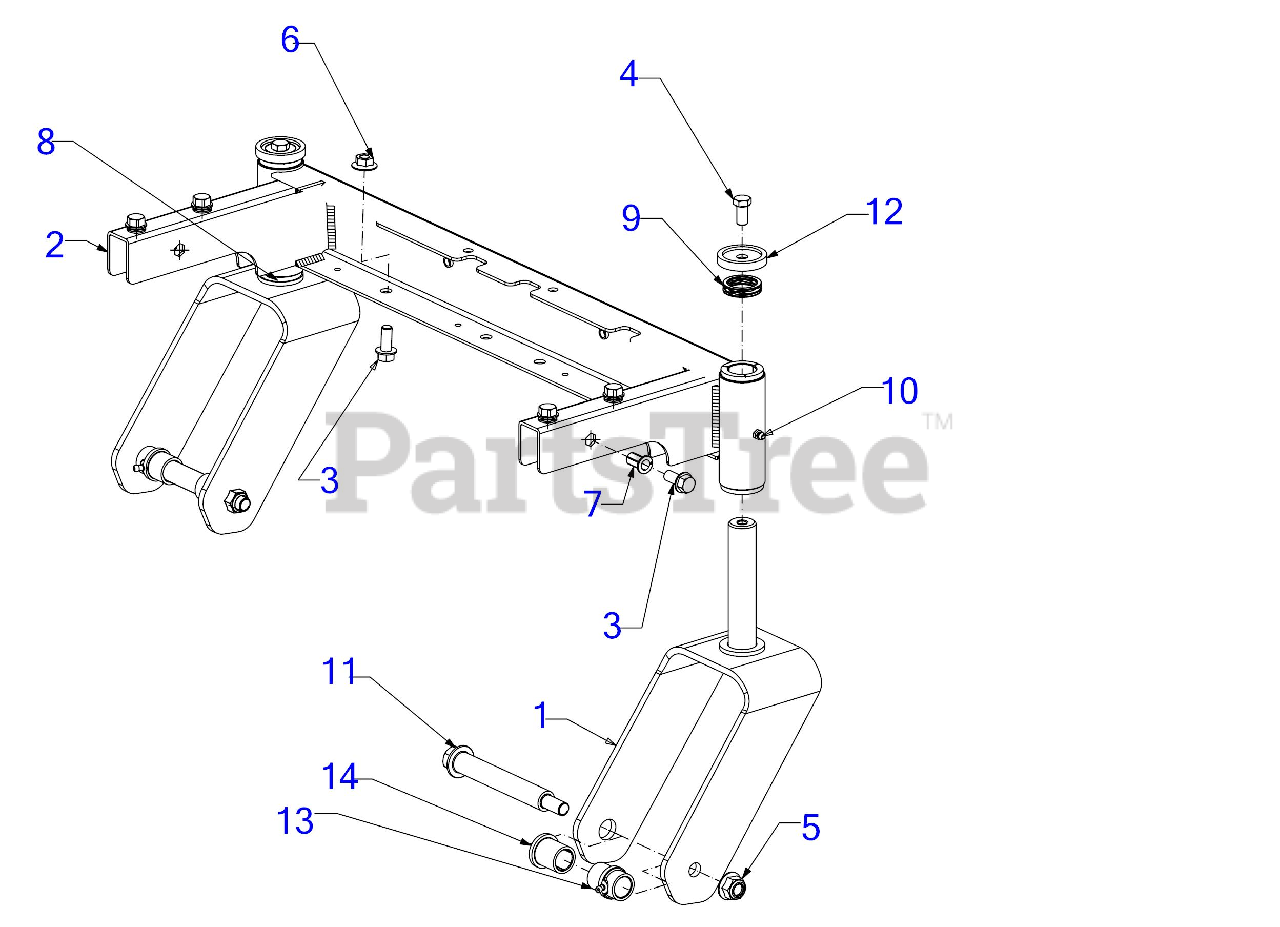

N-RZT 34 (17AQNAEU897) - Columbia 34" Zero-Turn Mower (2017) Front Axle Parts Diagram

34" Zero-Turn Mower

Front Axle Parts Diagram

  • Title

1

MTD 603-05297

CASTER WHEEL YOKE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

603-05297-0637

MTD 603-05297-0637

YOKE-CASTER WHEEL - POWDER BLACK (0637)

$132.99

$

Usually ships in 3-6 days

0

603-05297-0638

MTD 603-05297-0638

YOKE-CASTER WHEEL - MTD/TROY-BILT RED (0638)

$123.99

$

Usually ships in 3-6 days

0

603-05297-0691

MTD 603-05297-0691

YOKE-CASTER WHEEL - BLACK JACK (0691)

$123.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

2

MTD 603-05341

FRONT AXLE ASSEMBLY
(Superseded to 753-09044)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

603-05341-0637

MTD 603-05341-0637

AXLE ASM-FRONT - POWDER BLACK (0637)

$496.99

$

Usually ships in 3-6 days

0

603-05341-0638

MTD 603-05341-0638

AXLE ASM-FRONT - MTD/TROY-BILT RED (0638)

$496.99

$

Usually ships in 3-6 days

0

603-05341-0691

MTD 603-05341-0691

AXLE ASM-FRONT - BLACK JACK (0691)

$496.99

$

Usually ships in 3-6 days

0

$496.99

$

Usually ships in 3-6 days

0

3

MTD 710-04482

SCREW 3/8-16 x .875 GR5

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-3119

SCREW 3/8-16 x .75 GR 5

$7.49

$

In Stock, only 2 left!

0

5

MTD 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

6

MTD 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

7

MTD 728-04062A

NUT RIVET
(Superseded to 728-04062B)

$5.49

$

Usually ships in 3-6 days

0

8

MTD 731-12574A

FLANGE BEARING 25MMIDX1.25OD

$11.99

$

Usually ships in 3-6 days

0

9

MTD 736-05033A

WAVE WASHER

$5.49

$

In Stock, Qty 20+

0

10

MTD 737-04345

GREASE ZERT 1/4-28

$4.99

$

In Stock, Qty 20+

0

11

MTD 738-04182B

SHOULDER BOLT 1.00X4.75X1/2-13

$27.99

$

In Stock, only 2 left!

0

12

MTD 738-05093

SHOULDER SPACER 1.75 OD

$6.99

$

In Stock, only 2 left!

0

13

MTD 741-05218

FLANGE BEARING W/ZERT

$12.99

$

Usually ships in 3-6 days

0

14

MTD 741-05219

FLANGE BEARING .760IDX1.00OD

$11.99

$

Usually ships in 3-6 days

0
