NAV27KC - Exmark Navigator Front Mount Mower, 27hp Kohler (SN: 790000 - 849999) (2009) Electrical Group Parts Diagram

Navigator Front Mount Mower, 27hp Kohler

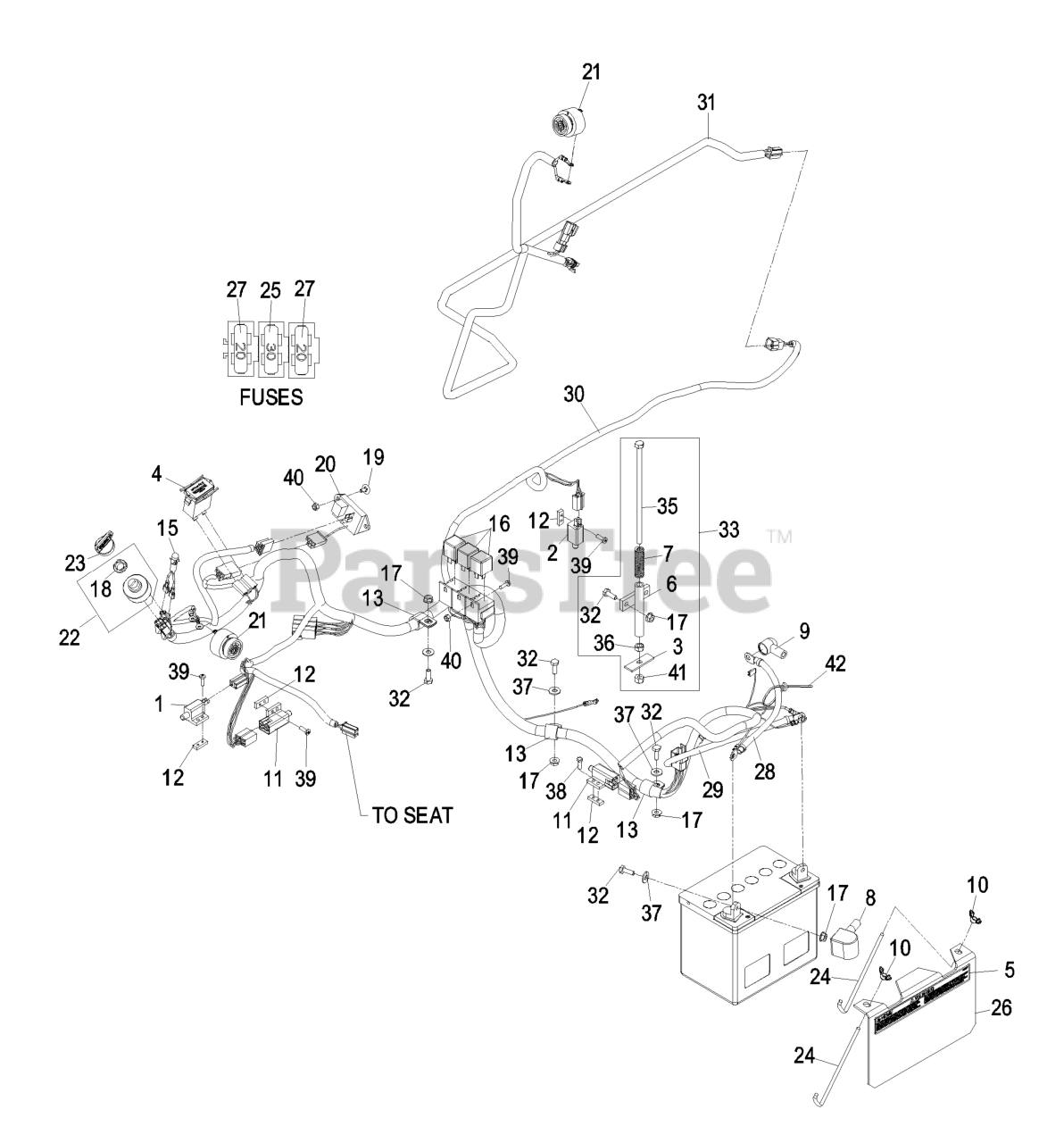

Electrical Group Parts Diagram

  • Title

1

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

2

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, only 3 left!

0

3

Exmark 1-513180

PLATE-SWITCH, SEAT

$18.99

$

In Stock, only 2 left!

0

4

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$74.99

$

In Stock, Qty 5

0

5

Exmark 1-513747

DECAL-BATTERY

$

$

Not available

6

Exmark 1-522424-03

MOUNT-SPRING, SEAT

$39.99

$

Usually ships in 3-6 days

0

7

Exmark 1-523415

SPRING-SWITCH, SEAT

$36.99

$

In Stock, only 1 left!

0

8

Exmark 109-2407

INSULATOR-BATTERY

$5.99

$

In Stock, only 2 left!

0

9

Exmark 1-543393

INSULATOR-SOLENOID

$5.99

$

In Stock, only 1 left!

0

10

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 13

0

11

Exmark 1-633111

SWITCH

$22.99

$

In Stock, Qty 20+

0

12

Exmark 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 12

0

13

Exmark 1-643312

CLIP-LOOM

$6.99

$

Usually ships in 3-6 days

0

14

Exmark 109-2923

116-4730
(Superseded to 116-4730)

Note: Assembly includes items #8, #9, and #28.

$21.99

$

Usually ships in 3-6 days

0

15

Exmark 1-643267

INDICATOR-LED, RED

$26.99

$

In Stock, only 4 left!

0

16

Exmark 1-643275

RELAY

$25.99

$

In Stock, Qty 13

0

17

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 17

0

18

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

19

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

20

Exmark 100-6186

MODULE-DELAY, SEAT

$46.99

$

In Stock, only 3 left!

0

21

Exmark 103-0205

ALARM-TONE, DUAL

$71.99

$

In Stock, only 2 left!

0

22

Exmark 109-4736

ASM,SWITCH W/NUT

$44.99

$

In Stock, Qty 5

0

23

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 20+

0

24

Exmark 103-1312

BOLT-HOLDDOWN

$6.99

$

Usually ships in 3-6 days

0

25

Exmark 1-816003

FUSE-BLADE TYPE, 30 AMP

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 103-9470

103-4161-03
(Superseded to 103-4161-03)

$43.99

$

Usually ships in 3-6 days

0

27

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

0

28

Exmark 103-8354

116-4730
(Superseded to 116-4730)

$21.99

$

Usually ships in 3-6 days

0

29

Exmark 103-8355

CABLE-BATTERY, NEGATIVE

$18.99

$

Usually ships in 3-6 days

0

30

Exmark 109-4270

HARNESS,WIRING

Note: Use dielectric grease on all wiring harness connectors.

$

$

Not available

31

Exmark 103-8800

HARNESS-WIRE, HOPPER

Note: Use dielectric grease on all wiring harness connectors.

$83.99

$

Usually ships in 3-6 days

0

32

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Exmark 103-8528

HOPPER SWITCH ACTUATOR AS

$110.99

$

Usually ships in 3-6 days

0

34

Exmark 1-303287

TIE-CABLE

Note: (Small)

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 322-50

SCREW-HH

$6.99

$

In Stock, Qty 5

0

36

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

37

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 17

0

38

Exmark 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

39

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 15

0

41

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
