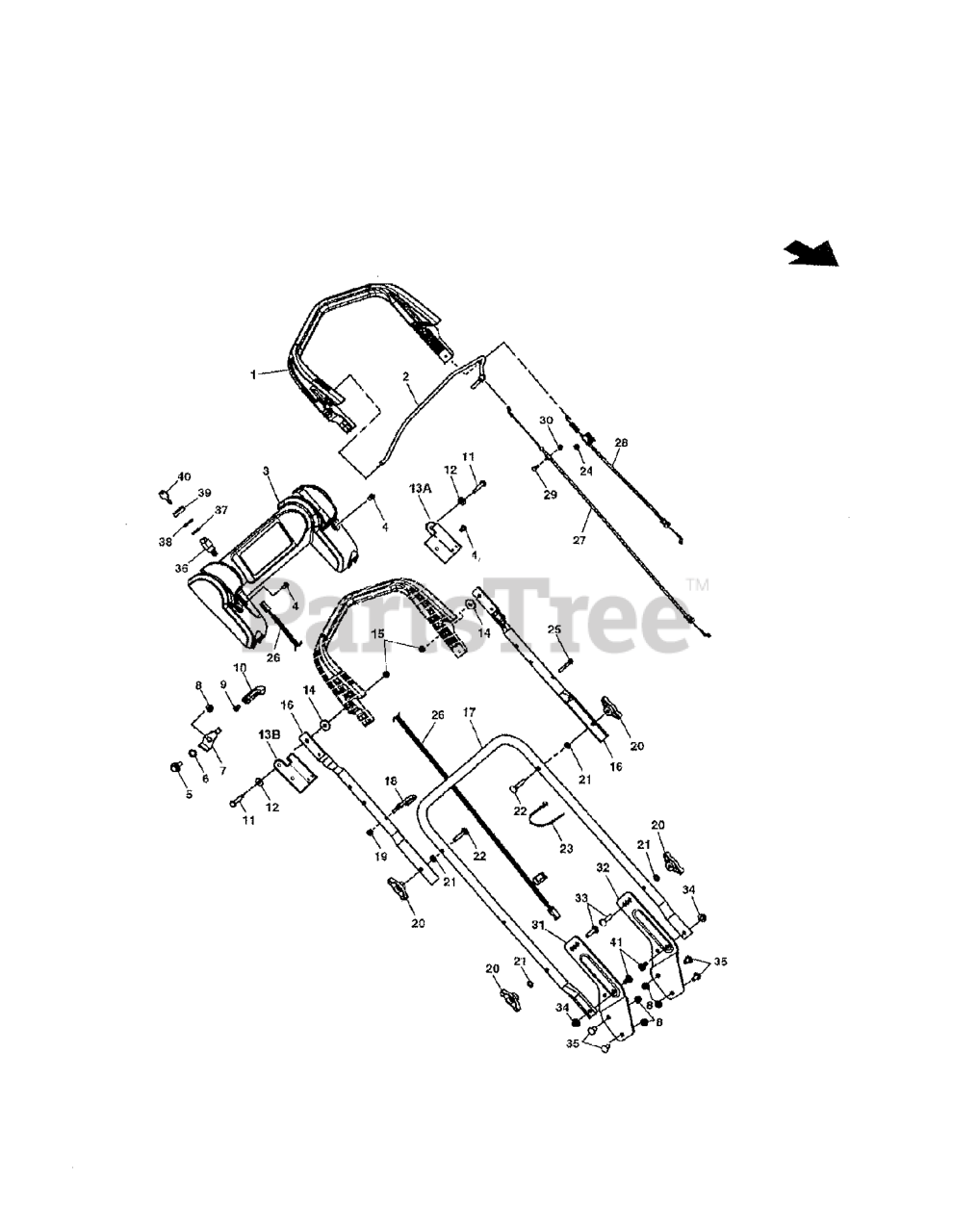

NJS 35 (7800234) - John Deere 21" Walk-Behind Mower, CARB (2009) Levers and Handles Parts Diagram

21" Walk-Behind Mower, CARB

Levers and Handles Parts Diagram

  • Title

1

Murray 7101239

HANDLE, PIVOTING - DEERE WALK
(Superseded to 7101239YP)

$72.99

$

Usually ships in 2-12 days

0

2

Murray 7101322A

BAIL, PIVOTING HANDLE - 21" JD WBM
(Superseded to 7101322AYP)

$18.99

$

In Stock, only 1 left!

0

3

Murray 7101240

PANEL, UPPER HANDLE, DEERE
(Superseded to 7101240YP)

$34.99

$

Usually ships in 2-12 days

0

4

Murray 7900067

TORX ST, 1/4-20 X .550
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

5

Murray 1716654

IDLER PIVOT BOLT
(Superseded to 1716654SM)

$5.49

$

In Stock, Qty 5

0

6

Murray 7026257

WASHER, .531 X .781 3-WAVE
(Superseded to 7026257MA)

$4.49

$

In Stock, only 3 left!

0

7

Murray 7300526A

HANDLE, LOCK
(Superseded to 7300526BMYP)

$31.99

$

Usually ships in 2-12 days

0

8

Murray 7091601

FLN, 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Murray 7071921

RIVET, PLASTIC SNAP
(Superseded to 7071921YP)

$3.49

$

Usually ships in 2-12 days

0

10

Murray 7023655

THROTTLE CONTROL LEVER
(Superseded to 7023655YP)

$3.99

$

Usually ships in 2-12 days

0

11

Murray 7900045

BOLT, SHOULDER, 5/16 X 2.500, YZ
(Superseded to 7900045YP)

$3.99

$

Usually ships in 2-12 days

0

12

Murray 7015686

SHIM WASHER, 5/16 I.D.
(Superseded to 7015686SM)

$3.99

$

Usually ships in 2-12 days

0

13A

Murray 7300436A

BRACKET, LH, ROTATION LIMIT
(Superseded to 7301187AYP)

$5.49

$

Usually ships in 2-12 days

0

13B

Murray 7300792A

BRACKET, RH, ROTATION LIMIT
(Superseded to 7301186AYP)

$6.49

$

Usually ships in 2-12 days

0

14

Murray M722604

WASHER, FLAT, 1" OD X .387 ID

$

$

Currently unavailable

15

Murray 2860694

NUT, HEX FLANGE, 1/4-20, ESNA, YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0

16

Murray 7300435A

HANDLE, UPPER, STRAIGHT, EASY LINE
(Superseded to 7300435AYP)

$75.99

$

Usually ships in 2-12 days

0

17

Murray 7300592A

HANDLE, LOWER 21" RD, JD
(Superseded to 7301182AYP)

$87.99

$

In Stock, only 1 left!

0

18

Murray 7028488

GUIDE, ROPE
(Superseded to 7028488MA)

$6.49

$

Usually ships in 2-12 days

0

19

Murray 7076978

HN, 1/4C NYL RNG
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

20

Murray 7102990

KNOB, HANDLE, 5 PRONG
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

21

Murray 7090391

ITLW 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

22

Murray 7091189

CHSNB, 5/16-18 X 2 GR2
(Superseded to 703059)

$4.49

$

In Stock, Qty 18

0

23

Murray 7024649

WIRE TIE, 11 INCH STD BLK NYLON
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

24

Murray 7090372

HCLN, 1/4-20
(Superseded to 703954)

$

$

Not available

25

Murray 7091003

HHCS,1/4CX1-3/4
(Superseded to 7091003YP)

$3.49

$

In Stock, only 2 left!

0

26

Murray 7101503

WIRE HARNESS, DEERE - JS35
(Superseded to 7101503YP)

$34.99

$

In Stock, only 1 left!

0

27

Murray 7103176

CABLE, CONTROL, ZONE (55.61" overall anchor to Z)
(Superseded to 7103176YP)

$29.99

$

In Stock, Qty 5

0

28

Murray 7101397

CABLE, DRIVE, 21" WBM, RD, DEERE (47.88" overall length)
(Superseded to 7101397YP)

$33.99

$

In Stock, Qty 8

0

29

Murray 7900056

RHSNB, 10-24X3/4, YZ
(Superseded to 7900056YP)

$4.49

$

Usually ships in 2-12 days

0

30

Murray 7091290

HLN, 10-24 UNC-2B W/NYLON INSERT
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

31

Murray 7300574A

BRKT, LOWER HANDLE, RH, JD 21" WBM, RD
(Superseded to 7300574AYP)

$20.99

$

Usually ships in 2-12 days

0

32

Murray 7300573A

BRKT, LOWER HANDLE, LH, JD 21" WBM, RD
(Superseded to 7300573AYP)

$13.99

$

Usually ships in 2-12 days

0

33

Murray 1931337

BOLT, RD HD SH SQ NK 5/16-18X1.500 G5 YZ
(Superseded to 80003669)

$4.49

$

In Stock, Qty 10

0

34

Murray 7090951

LHCLN, 5/16-18- BLACK
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

35

Murray 7091508

RHSSNB, 5/16-18 X 3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

36

Murray 7028765

SWITCH, E/S (START/RUN)
(Superseded to 690646)

$34.99

$

In Stock, only 1 left!

0

37

Murray 7016132

SPACER, .65X.88X.10
(Superseded to 7016132SM)

$3.99

$

In Stock, only 1 left!

0

38

Murray 7012685

HN, 5/8-32 (IGN SWITCH)
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

39

Murray 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

40

Murray 7011138

IGNITION KEY, PR
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 9

0

41

Murray 1931333

RHSSNB, 5/16-18 X 3/4 GR5 BZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0
