NSPV 2270HW (7800755) - Snapper 22" Walk-Behind Mower, 7hp Mower Deck Group Parts Diagram

22" Walk-Behind Mower, 7hp

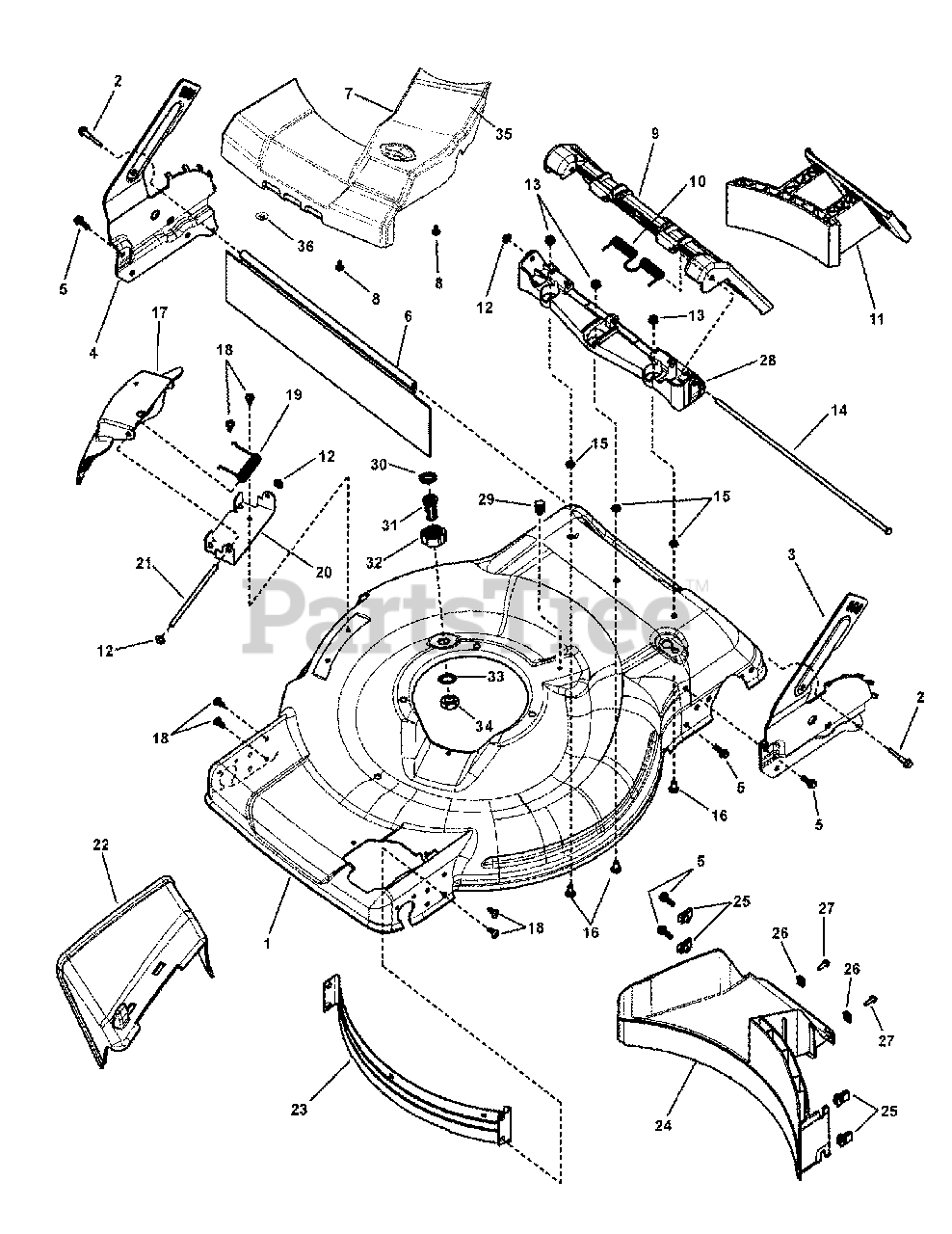

Mower Deck Group Parts Diagram

  • Title

1

Snapper 7301111D

DECK, 22", Front Wheel Drive, Washout
(Superseded to 7301111DYP)

$180.99

$

Usually ships in 2-12 days

0

2

Snapper 7900073

BOLT, Drag Shield, 1/4-20 x 1-1/2"
(Superseded to 7900073YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7301091BH

BRACKET, Lower Handle, LH, Hi-Wheel
(Superseded to 7301091BHYP)

$27.99

$

Usually ships in 2-12 days

0

4

Snapper 7301090BH

BRACKET, Lower Handle, RH, Hi-Wheel
(Superseded to 7301090BHYP)

$27.99

$

Usually ships in 2-12 days

0

5

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock, GR 5
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7103323

GUARD, Rear, 22"
(Superseded to 7103323YP)

$9.49

$

In Stock, only 2 left!

0

7

Snapper 7104780

ASSEMBLY, Belt Cover
(Superseded to 7104780YP)

$53.99

$

Usually ships in 2-12 days

0

8

Snapper 7900018

SCREW, 4.8 x 1.59 x 13mm, Round Washer Head Hi-Lo (Torx)
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

--

Snapper 7501541

ASSEMBLY, Door, 22" WBM
(Superseded to 7501541YP)

Note: (incl. 1 each of items 9, 10, 12, 14 & 28)

$45.99

$

Usually ships in 2-12 days

0

9

Snapper 7103291

DOOR, Rear Discharge
(Superseded to 7501541YP)

$45.99

$

Usually ships in 2-12 days

0

10

Snapper 7103309

SPRING, Torsion, Rear Door
(Superseded to 7103309YP)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7103453

PLUG, Mulching, 22" Deck
(Superseded to 7103453YP)

$32.99

$

In Stock, Qty 7

0

12

Snapper 7091020

PUSHNUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 722398

NUT, 1/4-20 Hex Flange Lock
(Superseded to 7001278MA)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7103322

ROD, Pivot, Rear Door
(Superseded to 7103322YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 1960518

RETAINER, 1/4" Bolt
(Superseded to 703826)

$3.49

$

In Stock, Qty 15

0

16

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR 5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7103298

COVER, Mulching
(Superseded to 7103298YP)

$

$

Not available

18

Snapper 7900067

SCREW, 1/4-20 x .550" Pan Head Torx (T-30)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 722507

CHUTE SPRING, Torsion
(Superseded to 166X38MA)

$4.99

$

In Stock, only 2 left!

0

20

Snapper 7300855D

BRACKET, Chute
(Superseded to 7300855DYP)

$6.99

$

In Stock, only 1 left!

0

21

Snapper 7101067

ROD, Pivot
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

22

Snapper 7103299

CHUTE, Side Discharge, 22" WBM
(Superseded to 7103299YP)

$35.99

$

In Stock, Qty 7

0

23

Snapper 7301020D

BAFFLE, Front
(Superseded to 7301020DYP)

$18.99

$

Usually ships in 2-12 days

0

24

Snapper 7103452

REAR BAFFLE, Front Wheel Drive, WBM
(Superseded to 7103452YP)

$51.99

$

Usually ships in 2-12 days

0

25

Snapper 7023295

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

26

Snapper 1960593

SPEED NUT, #10-24 Retainer w/Extrusion
(Superseded to 1960593SM)

$4.99

$

Usually ships in 2-12 days

0

27

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Face self-Tap, GR 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 9

0

28

Snapper 7103292

DOOR HINGE, Rear Discharge
(Superseded to 7103292YP)

$19.99

$

Usually ships in 2-12 days

0

29

Snapper 720182

PLUG, Panel, 1/4" x .61 Long, Black
(Superseded to 0193X1MA)

$3.99

$

In Stock, only 1 left!

0

30

Snapper 7103957

WASHER, Hose
(Superseded to 7103957YP)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 7103804

ADAPTOR, Washout Port, WBM
(Superseded to 7103804YP)

$6.49

$

Usually ships in 2-12 days

0

32

Snapper 7103919

COUPLING, Hose
(Superseded to 7103919YP)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7090880

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 6

0

34

Snapper 1960716

NUT, 5/8-11, NC-2B Black Hex Jam
(Superseded to 1960716SM)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 7104172

PATCH, Heat Cover
(Superseded to 7104172YP)

$16.99

$

Usually ships in 2-12 days

0

36

Snapper 7900079

NUT, Push, 3/16
(Superseded to 7900079YP)

$2.99

$

Usually ships in 2-12 days

0
