NSPVH 2265 (7800447) - Snapper 22" Walk-Behind Mower, 6.5hp, CARB Handles and Controls Parts Diagram

22" Walk-Behind Mower, 6.5hp, CARB

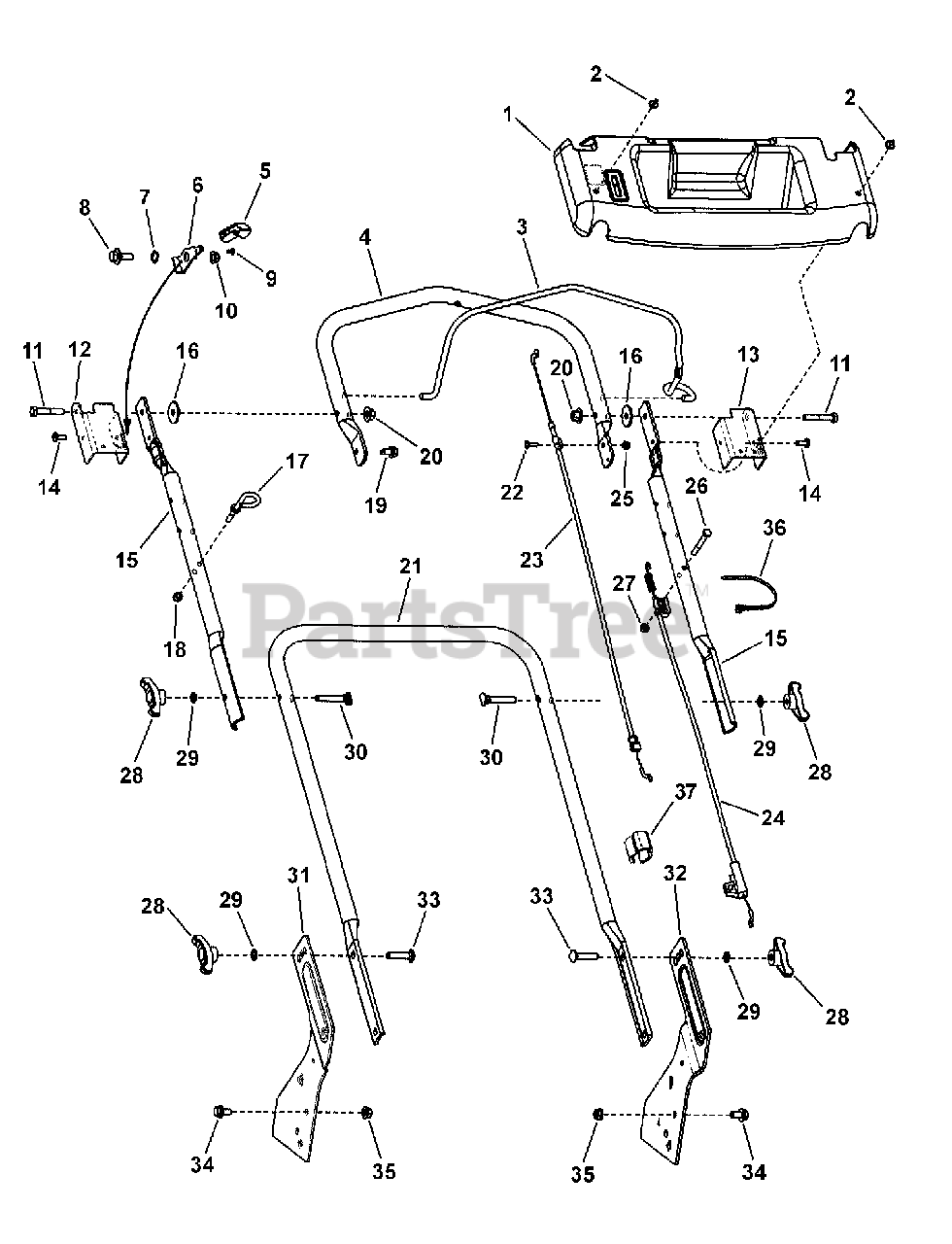

Handles and Controls Parts Diagram

  • Title

1

Snapper 7101068

PANEL, Upper Handle, Snapper 21 WBM
(Superseded to 7101068YP)

$31.99

$

Usually ships in 2-12 days

0

2

Snapper 1960382

RIVET, Pop .250 Dia.
(Superseded to 1960382YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7100844A

BAIL, Pivot Handle
(Superseded to 7100844AYP)

$21.99

$

Usually ships in 2-12 days

0

4

Snapper 7300434A

HANDLE, Pivot
(Superseded to 7300434AYP)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 7023655

LEVER, Lock Handle
(Superseded to 7023655YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7300526A

HANDLE, Lock
(Superseded to 7300526BMYP)

$31.99

$

In Stock, only 1 left!

0

7

Snapper 7026257

WASHER, .531 x .781 Wave
(Superseded to 7026257MA)

$4.49

$

In Stock, only 2 left!

0

8

Snapper 1716654

BOLT, 5/16-18 Shoulder
(Superseded to 1716654SM)

$5.49

$

In Stock, only 4 left!

0

9

Snapper 7071921

RIVET, Plastic Snap
(Superseded to 7071921YP)

$3.49

$

In Stock, only 1 left!

0

10

Snapper 80002728

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

Note: (Was 7091601)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7090669

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7300792A

BRACKET, Rotation Limit, RH
(Superseded to 7301186AYP)

$6.49

$

Usually ships in 2-12 days

0

13

Snapper 7300436A

BRACKET, Rotation Limit, LH
(Superseded to 7301187AYP)

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 7900067

SCREW, 1/4-20 x .55 Torx Self-Tap
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7300459A

HANDLE, Upper, Straight, 22"

$

$

Not available

16

Snapper 7023649

WASHER, 5/16 Nylon
(Superseded to 7023649YP)

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7028488

ROPE GUIDE, (1/4-20 thread)
(Superseded to 7028488MA)

$6.49

$

In Stock, only 1 left!

0

18

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

20

Snapper 7090951

NUT, 5/16-18 Large Head Center Lock, Black
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

21

Snapper 7301013A

HANDLE, Lower
(Superseded to 7301013AYP)

$143.99

$

Usually ships in 2-12 days

0

22

Snapper 7091085

BOLT, #10-24 x 1/2" Flat Head Square Neck
(Superseded to 7091085YP)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7102666

CABLE, OPC, 22", Pivot Handle
(Superseded to 7102666YP)

$22.99

$

Usually ships in 2-12 days

0

24

Snapper 7102665

CABLE, Drive, 22", Pivot Handle
(Superseded to 7102665YP)

$31.99

$

In Stock, Qty 5

0

25

Snapper 80002733

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

Note: (Was 7091290)

$4.49

$

In Stock, Qty 12

0

26

Snapper 7090505

SCREW, 1/4-20 x 2", Hex Head Cap, GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

28

Snapper 80003917

KNOB, 5/16-18 Wing (Black)
(Superseded to 703065)

Note: (Was 7035744)

$6.99

$

In Stock, Qty 20+

0

29

Snapper 80003683

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

Note: (Was 7090391)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 80003918

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

Note: (Was 7091189)

$4.49

$

In Stock, Qty 16

0

31

Snapper 7300669A

BRACKET, Lower Handle RH 22" WBM
(Superseded to 7300669AYP)

$31.99

$

In Stock, only 1 left!

0

32

Snapper 7300668A

BRACKET, Lower Handle, LH 22" WBM
(Superseded to 7300668AYP)

$31.99

$

Usually ships in 2-12 days

0

33

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Round Head Square Neck
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

34

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, YZ
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 7

0

35

Snapper 80002728

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

Note: (Was 7091601)

$5.49

$

In Stock, Qty 20+

0

36

Snapper 7024649

WIRE TIE, 11 Inch Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

37

Snapper 721768

CLIP, Cable, Double
(Superseded to 1101353MA)

$5.99

$

In Stock, only 2 left!

0
