NV730EKC - Exmark Navigator Front Mount Mower, Kohler ECV730 EFI (SN: 312000000 - 312999999) (2012) Fuel Assembly Parts Diagram

Navigator Front Mount Mower, Kohler ECV730 EFI

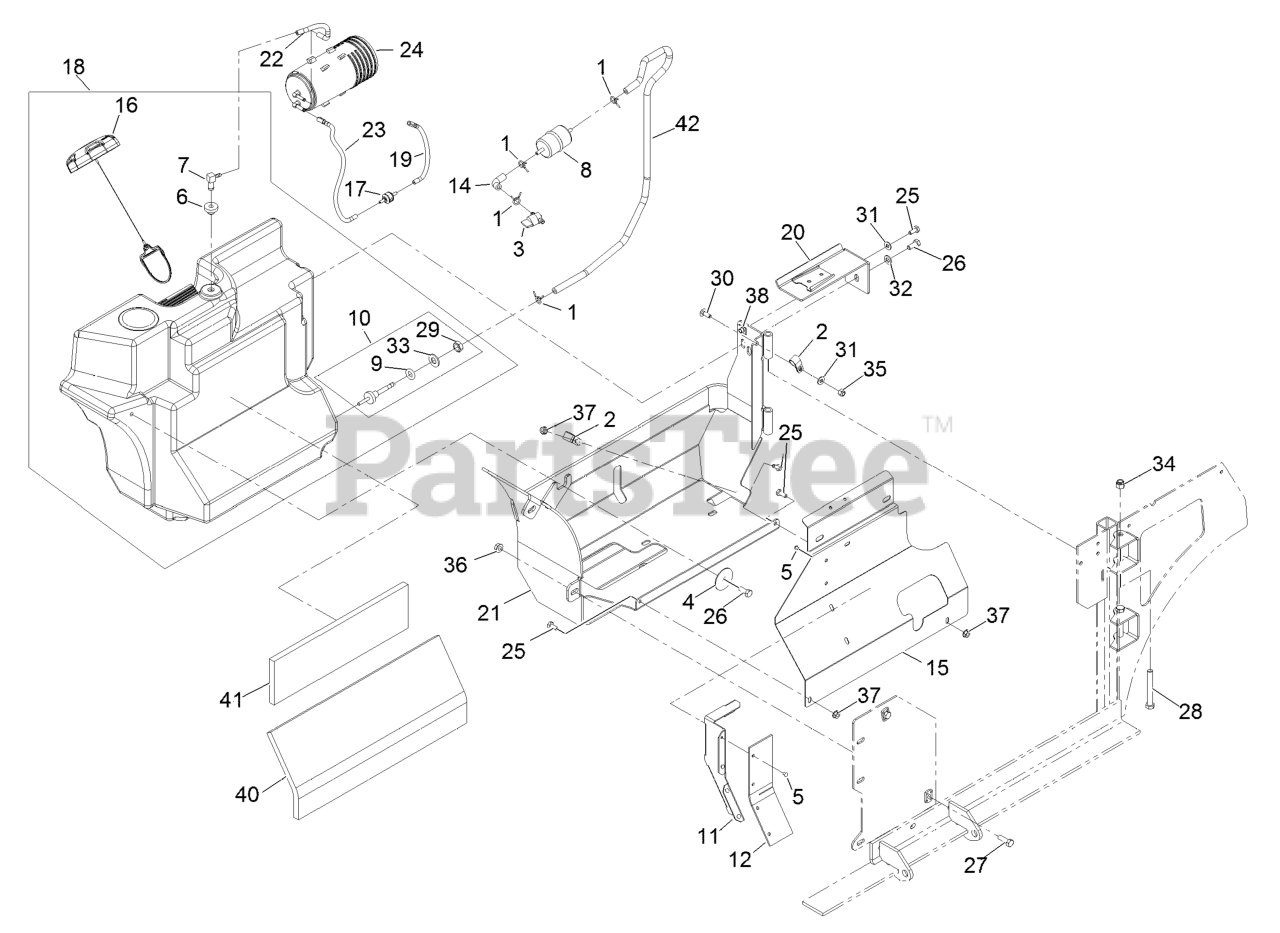

Fuel Assembly Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

3

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 16

0

4

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 1 left!

0

5

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, only 2 left!

0

6

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

7

Exmark 100-1596

104-5228
(Superseded to 104-5228)

$18.99

$

In Stock, only 1 left!

0

8

Exmark ~KOHLER

Part No. 2405010 Fuel Filter

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

10

Exmark 103-6057

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$47.99

$

Usually ships in 3-6 days

0

11

Exmark 103-7095

Deflector, Air

$

$

Currently unavailable

12

Exmark 103-9658

FLAP-RUBBER

$22.99

$

Usually ships in 3-6 days

0

14

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 16

0

15

Exmark 116-7928-03

PANEL-TANK SHIELD

$64.99

$

Usually ships in 3-6 days

0

16

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$26.99

$

In Stock, Qty 9

0

17

Exmark 115-7868

133-8499
(Superseded to 133-8499)

$15.99

$

Usually ships in 3-6 days

0

18

Exmark 116-4030

ASM-FUEL TANK

$796.99

$

Usually ships in 3-6 days

0

19

Exmark 116-2619

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

20

Exmark 116-2847-03

CANISTER BRACKET ASM

$58.99

$

Usually ships in 3-6 days

0

21

Exmark 116-2848-03

TANK FRAME ASM

$347.99

$

Usually ships in 3-6 days

0

22

Exmark 116-2966

HOSE-VENT, FORMED

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 116-2967

HOSE-VENT, FORMED

$8.49

$

Usually ships in 3-6 days

0

24

Exmark 117-1221

CANISTER-CARBON, 800CC

$73.99

$

In Stock, only 2 left!

0

25

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

26

Exmark 322-3

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 20+

0

27

Exmark 322-5

SCREW-HH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$0.99

$

In Stock, Qty 20+

0

28

Exmark 3231-4

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

29

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 9

0

30

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

31

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

35

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

36

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

38

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

40

Exmark 103-7824

INSULATION-FOAM PAD, REAR

$29.99

$

Usually ships in 3-6 days

0

41

Exmark 103-7825

INSULATION-FOAM PAD, FRON

$14.99

$

Usually ships in 3-6 days

0

42

Exmark 116-5366

FUEL LINE ASM

$49.99

$

Usually ships in 3-6 days

0
