NVS640CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH640 (SN: 315000000 - 315999999) (2015) Seat and Consoles Assembly Parts Diagram

42" Navigator Front Mount Mower, Kohler CH640

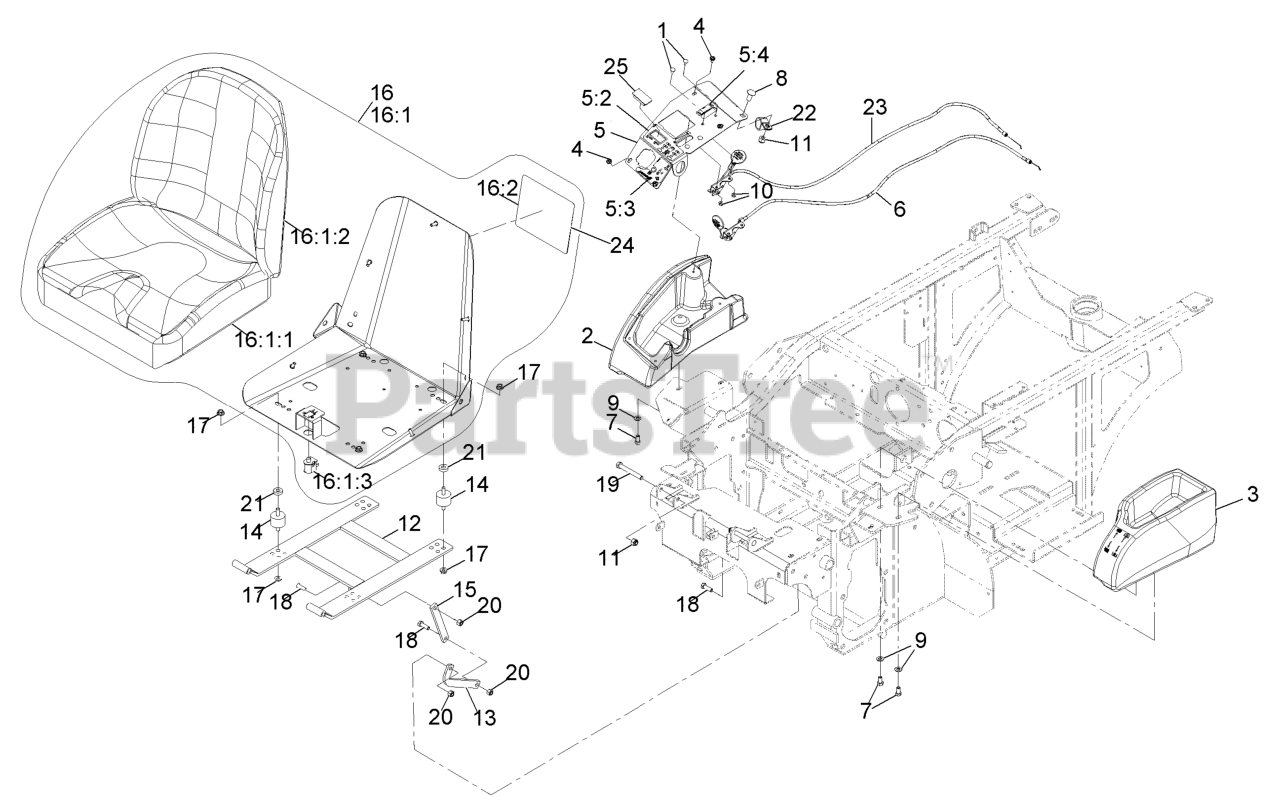

Seat and Consoles Assembly Parts Diagram

  • Title

1

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

0

2

Exmark 116-9430

CONSOLE-RH

$183.99

$

Usually ships in 3-6 days

0

3

Exmark 126-4342

CONSOLE, LH GREY

$183.99

$

Usually ships in 3-6 days

0

4

Exmark 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 19

0

5

Exmark 116-9374

CONTROL PANEL ASM

$138.99

$

Usually ships in 3-6 days

0

5:2

Exmark 116-9375

Decal-Nav Console 640Kc

$

$

Currently unavailable

5:3

Exmark 116-9376

Decal-Speed Control

$

$

Currently unavailable

5:4

Exmark 116-9470

DECAL-CHOKE

$8.99

$

Usually ships in 3-6 days

0

6

Exmark 109-4641

CABLE-THROTTLE

$41.99

$

In Stock, Qty 5

0

7

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Exmark 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

9

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Exmark 103-4362-03

FRAME-SEAT

$166.99

$

Usually ships in 3-6 days

0

13

Exmark 116-9554

LINK-SEAT STOP

$18.99

$

Usually ships in 3-6 days

0

14

Exmark 103-5496

MOUNT-VIBRATION, RUBBER

$25.99

$

Usually ships in 3-6 days

0

15

Exmark 103-8563

LINK-SEAT

$15.99

$

Usually ships in 3-6 days

0

16

Exmark 116-4849

126-9643
(Superseded to 126-9643)

$529.99

$

Usually ships in 3-6 days

0

16:1

Seat ASM

Note: Not serviced separately

$

$

Not available

16:1:1

Exmark 116-4848

ASM-SEAT BOTTOM CUSHION

$312.99

$

Usually ships in 3-6 days

0

16:1:2

Exmark 116-3738

CUSHION,SEAT BACK

$330.99

$

Usually ships in 3-6 days

0

16:1:3

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

16:2

Exmark 116-9044

Decal-Service Aid

$13.99

$

Usually ships in 3-6 days

0

17

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3231-4

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

20

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Exmark 5-0652

SPACER

$7.49

$

In Stock, Qty 9

0

22

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 109-4640

CABLE-CHOKE

$41.99

$

Usually ships in 3-6 days

0

24

Exmark 116-9044

Decal-Service Aid

$13.99

$

Usually ships in 3-6 days

0

25

Exmark 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0
