NVS730AKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler ECH730 EFI (SN: 316000000 - 399999999) (2016) Electrical Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler ECH730 EFI

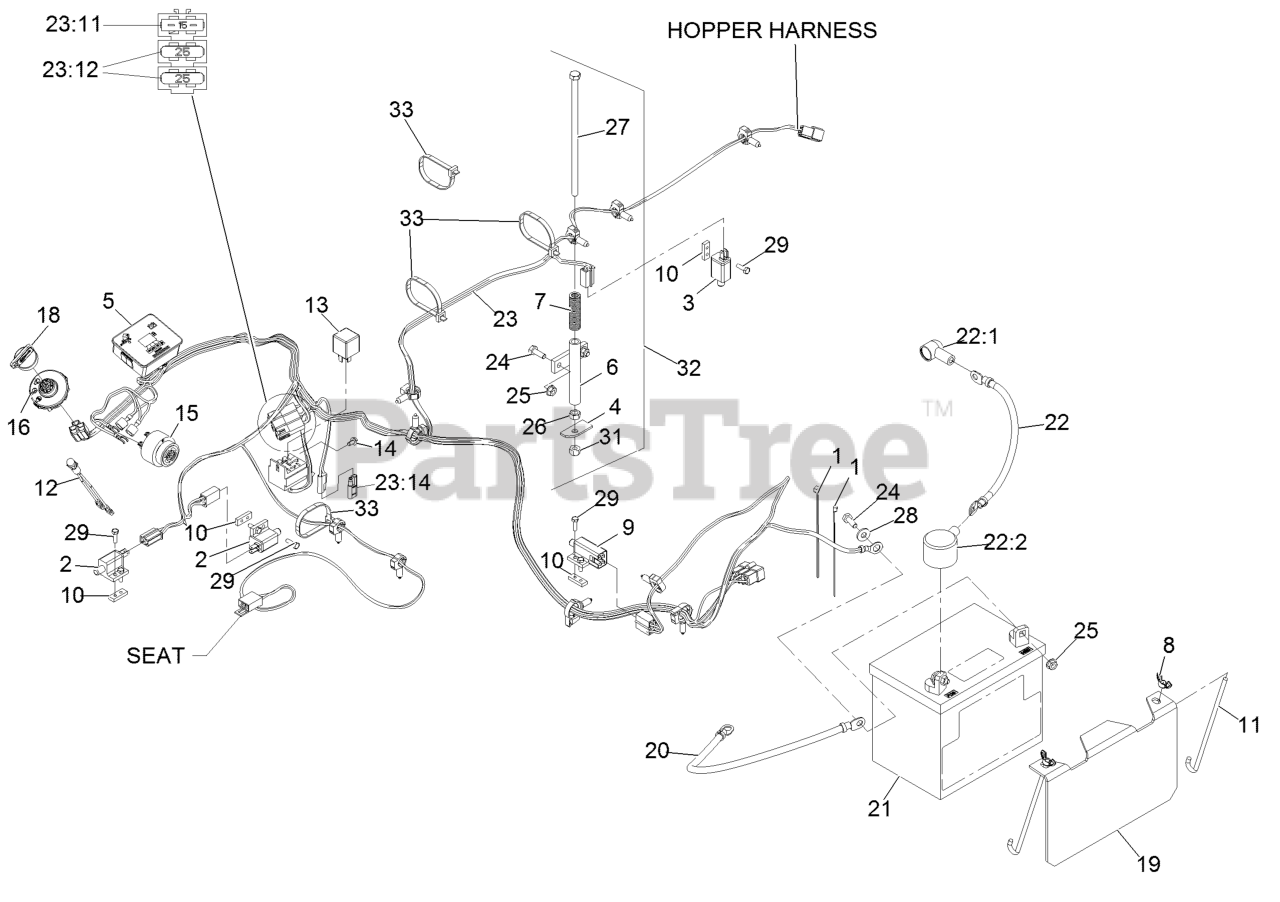

Electrical Assembly Parts Diagram

  • Title

1

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

3

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, only 3 left!

0

4

Exmark 126-7505

Plate-Switch

$7.99

$

Usually ships in 0 days

0

5

Exmark 116-8812

HOUR METER ASM

$156.99

$

Usually ships in 3-6 days

0

6

Exmark 1-522424-03

MOUNT-SPRING, SEAT

$39.99

$

Usually ships in 3-6 days

0

7

Exmark 1-523415

SPRING-SWITCH, SEAT

$36.99

$

In Stock, only 1 left!

0

8

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 13

0

9

Exmark 1-633111

SWITCH

$22.99

$

In Stock, Qty 20+

0

10

Exmark 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 12

0

11

Exmark 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 12

0

12

Exmark 1-643267

INDICATOR-LED, RED

$26.99

$

In Stock, only 4 left!

0

13

Exmark 1-643275

RELAY

$25.99

$

In Stock, Qty 13

0

14

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 103-0205

ALARM-TONE, DUAL

$71.99

$

In Stock, only 2 left!

0

16

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$29.99

$

In Stock, Qty 20+

0

18

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

19

Exmark 103-4161-03

HOLD DOWN-BATTERY

$43.99

$

Usually ships in 3-6 days

0

20

Exmark 103-8355

CABLE-BATTERY, NEGATIVE

$18.99

$

Usually ships in 3-6 days

0

21

Battery (300 Cca, Wet)

Note: Obtain locally, Obtain locally.

$

$

Not available

22

Exmark 116-4730

CABLE-BATTERY, POSITIVE

$21.99

$

Usually ships in 3-6 days

0

22:1

Exmark 1-543393

INSULATOR-SOLENOID

$5.99

$

In Stock, only 1 left!

0

22:2

Exmark 109-2407

INSULATOR-BATTERY

$5.99

$

In Stock, only 2 left!

0

23

Exmark 116-9114

HARNESS-WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$410.99

$

Usually ships in 3-6 days

0

23:11

Exmark 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, only 2 left!

0

23:12

Exmark 109102

FUSE-BLADE, 25 AMP

$6.49

$

Usually ships in 3-6 days

0

23:14

Exmark 116-0053

CAP-PLUG

$43.99

$

Usually ships in 3-6 days

0

24

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 17

0

26

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

27

Exmark 322-50

SCREW-HH

$6.99

$

In Stock, Qty 5

0

28

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 17

0

29

Exmark 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Exmark 103-8528

HOPPER SWITCH ACTUATOR AS

$110.99

$

Usually ships in 3-6 days

0

33

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 10

0
