NVS730AKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler ECH730 EFI (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler ECH730 EFI

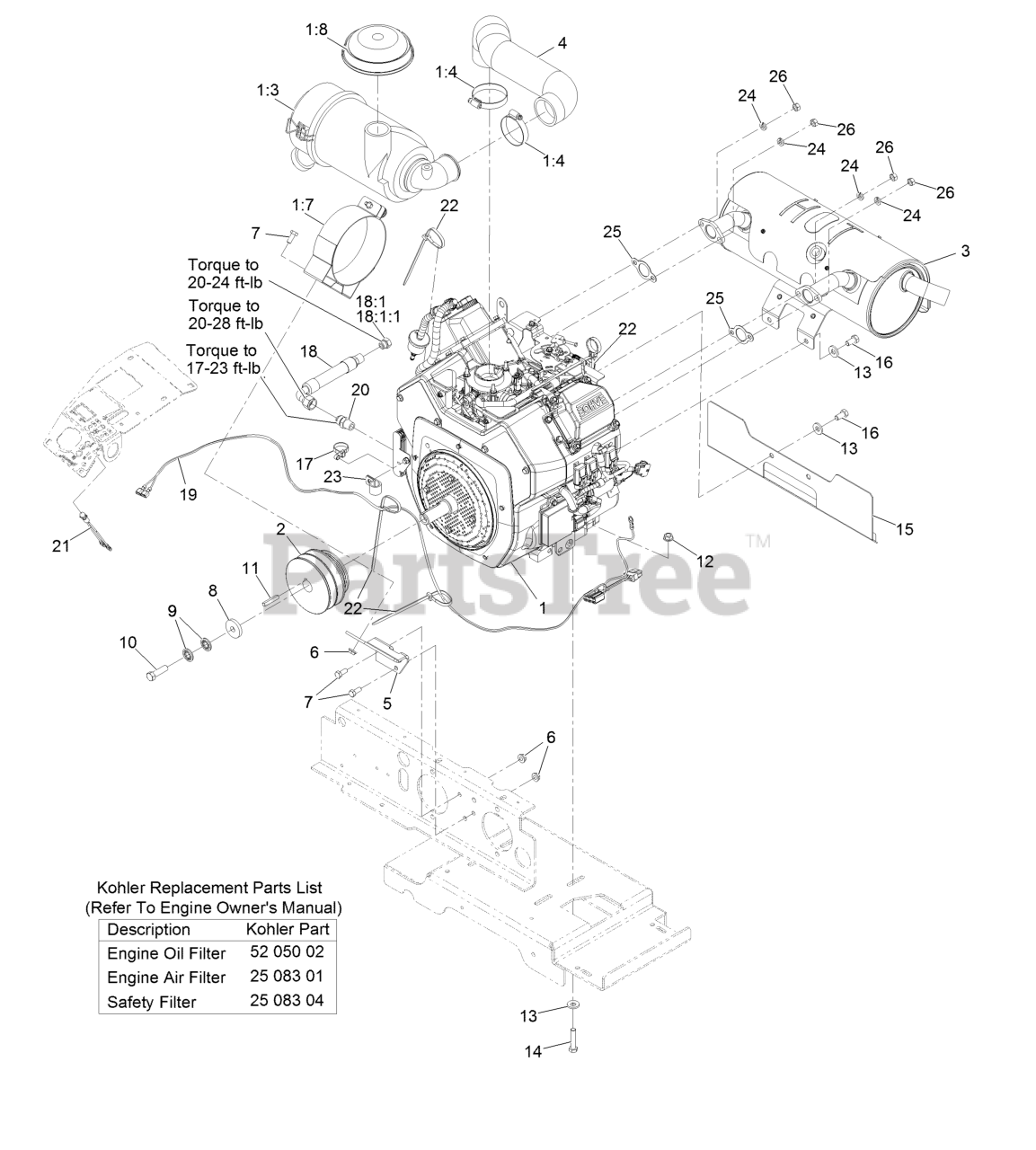

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler, Ech730-3064

$

$

Not available

1:3

Exmark 103-8569

Air Cleaner Canister ASM

$352.99

$

Usually ships in 3-6 days

0

1:4

Exmark 2412-42

Clamp-Hose

$9.99

$

Usually ships in 3-6 days

0

1:7

Exmark 103-1058

Bracket-Filter, Air

$109.99

$

Usually ships in 3-6 days

0

1:8

Exmark 100-2436

Asm-Hood Air Intake W/Clamp

$67.99

$

In Stock, only 1 left!

0

2

Exmark 103-6731

Sheave-Engine
(Superseded to 109-0942)

$213.99

$

Usually ships in 3-6 days

0

3

Exmark 116-3961

Muffler
(Superseded to 142-7225)

$211.99

$

Usually ships in 3-6 days

0

4

Exmark 116-4016

Hose-Air Intake

$87.99

$

Usually ships in 3-6 days

0

5

Exmark 103-3695-03

Bracket-Filter, Air

$31.99

$

Usually ships in 3-6 days

0

6

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

7

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-543610

Washer

$6.49

$

Usually ships in 3-6 days

0

9

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 20+

0

10

Exmark 3212-6

Screw-HH 7/16-20 X 1 1/2

$2.49

$

Usually ships in 3-6 days

0

11

Exmark 67-7490

Key-Machine 1/4 X 1/4 X 1 1/2

$2.99

$

In Stock, only 2 left!

0

12

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

14

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-0181-03

Shield-Exhaust

$62.99

$

Usually ships in 3-6 days

0

16

Exmark 323-4

Screw-HH 3/8-16 X 3/4

$3.99

$

In Stock, Qty 19

0

17

Exmark 109-7896

Tie-Cable

$

$

Currently unavailable

18

Exmark 116-5338

Oil Drain Hose ASM

$60.99

$

Usually ships in 3-6 days

0

18:1

Exmark 353-508

Plug-W/O-Ring

$8.49

$

In Stock, only 1 left!

0

18:1:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 20+

0

19

Exmark 116-4543

Harness-Light Indicator (Efi)

$84.99

$

Usually ships in 3-6 days

0

20

Exmark 116-1455

Fitting-Straight

$6.99

$

Usually ships in 3-6 days

0

21

Exmark 1-643267

Indicator-Red LED

$23.99

$

In Stock, Qty 5

0

22

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 12

0

23

Exmark 1-633396

Clip-Loom 5/8

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 1-805005

Washer-Lock 5/16 Heavy

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-653291

Gasket-Exhaust
(Superseded to 110-6697)

$

$

Not available

26

Exmark 33014-00

Nut-Hex M8-1.25

$0.99

$

In Stock, Qty 20+
