NVS730AKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler ECH730 EFI (SN: 402082300 - 404314158) (2018) Gearbox Assembly No. 103-3387 Parts Diagram

48" Navigator Front Mount Mower, Kohler ECH730 EFI

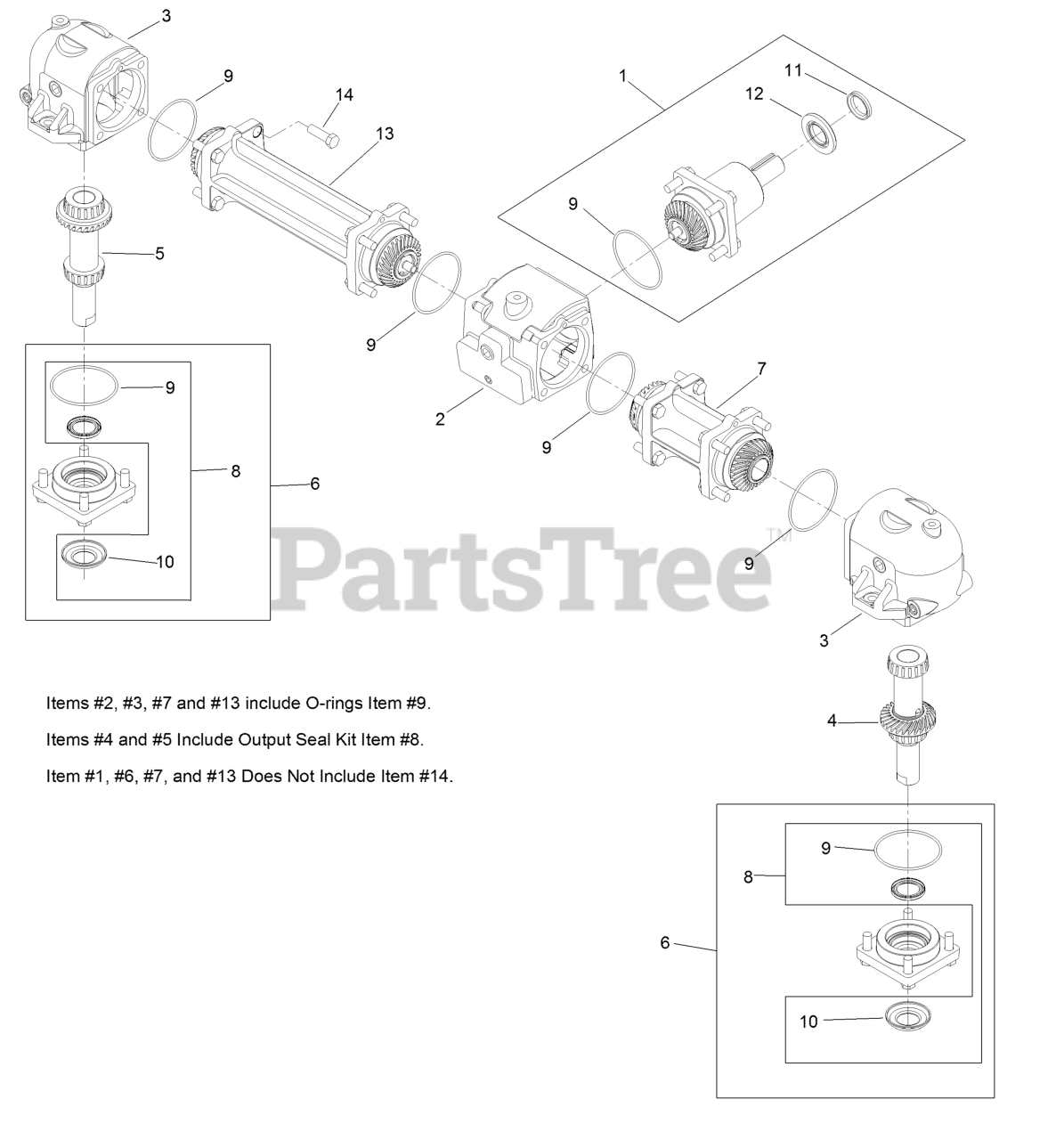

Gearbox Assembly No. 103-3387 Parts Diagram

  • Title

1

Exmark 109-0189

Pinion-Input

$425.99

$

Usually ships in 3-6 days

0

2

Exmark 109-0190

Housing-Center

$381.99

$

Usually ships in 3-6 days

0

3

Exmark 109-0191

Housing-End

$296.99

$

Usually ships in 3-6 days

0

4

Exmark 109-0193

Output Shaft And Gear-LH

$375.99

$

Usually ships in 3-6 days

0

5

Exmark 109-0195

Output Shaft And Gear-RH

$477.99

$

Usually ships in 3-6 days

0

6

Exmark 109-0196

Cap-Output

$167.99

$

Usually ships in 3-6 days

0

7

Exmark 109-0198

Tube-Connector, Shor

$674.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0201

Output Seal Kit

$31.99

$

Usually ships in 3-6 days

0

9

Exmark 109-0203

Seal-O-Ring

$12.99

$

In Stock, Qty 9

0

10

Exmark 109-0204

Washer-Cupped

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 109-0205

Seal-V-Ring

$17.99

$

In Stock, only 1 left!

0

12

Exmark 109-0202

Seal-Input

$59.99

$

Usually ships in 3-6 days

0

13

Exmark 109-0200

Connector-Tube, Long

$747.99

$

Usually ships in 3-6 days

0

14

Exmark 93-3987

Bolt-Blade
(Superseded to AU328-620)

$0.99

$

In Stock, only 1 left!

0
