NVS730AKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler ECH730 EFI (SN: 416150475 - 417930745) (Rev A) (2024) Hydraulic Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler ECH730 EFI

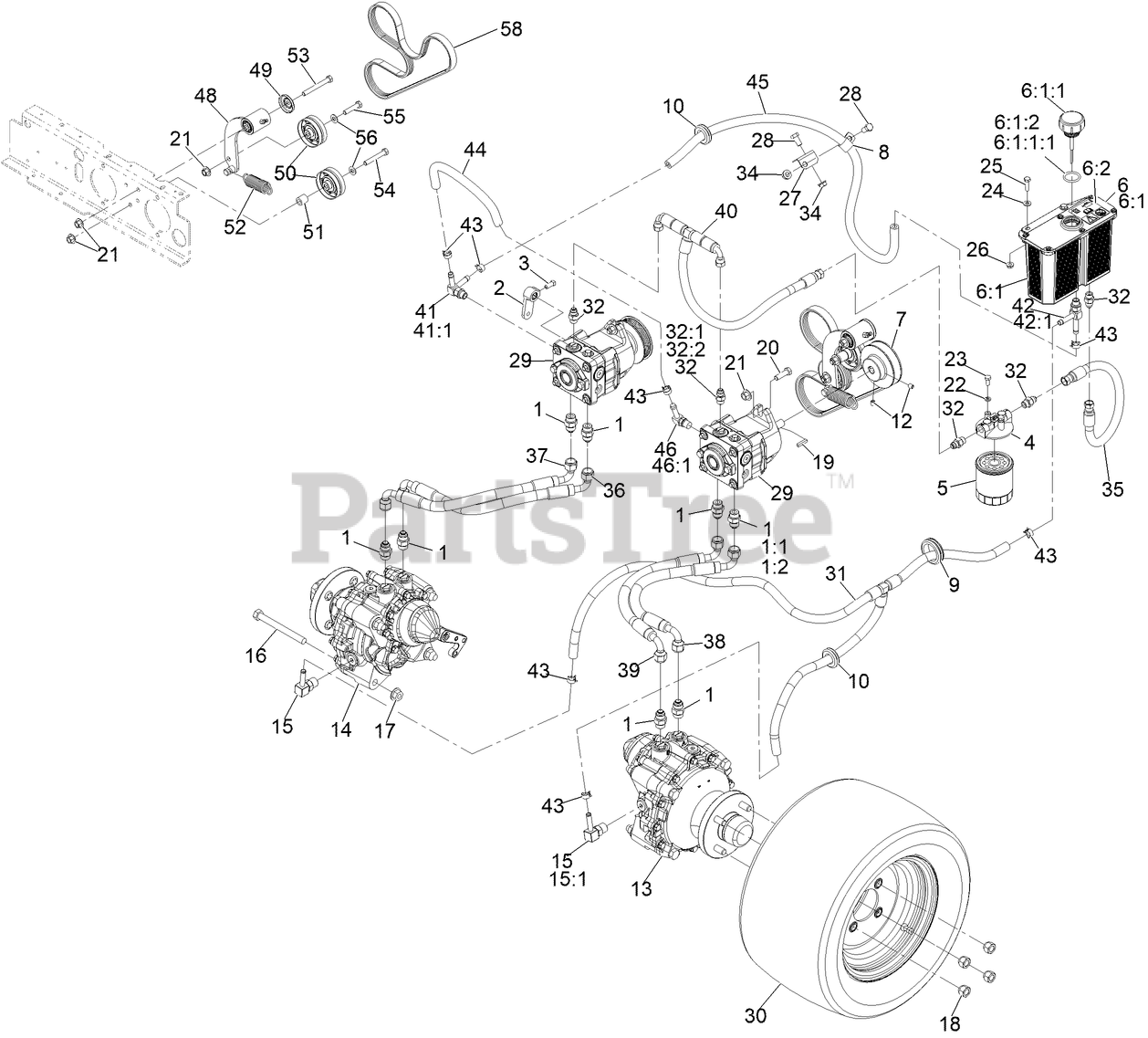

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, Qty 7

0

1:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

1:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-632208

ARM-CONTROL, PUMP

$29.99

$

In Stock, Qty 20+

0

3

Exmark 120-6474

SCREW-SET, SQH

$2.99

$

In Stock, Qty 8

0

4

Exmark 104-7836

HEAD-FILTER

$19.99

$

In Stock, only 1 left!

0

5

Exmark 109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$52.99

$

In Stock, Qty 8

0

6

Exmark 116-9274

RESERVOIR ASM

$419.99

$

Usually ships in 3-6 days

0

6:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

6:1:1

Exmark 116-9273

RESERVOIR CAP ASM

$29.99

$

Usually ships in 3-6 days

0

6:1:1:1

Exmark 142-2792

O-RING

$1.49

$

In Stock, Qty 20+

0

6:1:2

Exmark 142-2792

O-RING

$1.49

$

In Stock, Qty 20+

0

6:2

Exmark 115-4212

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

7

Exmark 103-4246

SHEAVE

$113.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 103-7706

GROMMET

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 1-803310

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 116-7401

MOTOR-HYD, LH

$1760.99

$

Usually ships in 3-6 days

0

14

Exmark 116-7402

MOTOR-HYD, RH

$1760.99

$

Usually ships in 3-6 days

0

15

Exmark 354-134

FITTING-90

$74.99

$

Usually ships in 3-6 days

0

15:1

Exmark 237-79

O-RING

$6.49

$

In Stock, only 3 left!

0

16

Exmark 325-19

SCREW-HH

$8.99

$

In Stock, Qty 20+

0

17

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 8

0

18

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-807272

KEY

$6.49

$

In Stock, Qty 7

0

20

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

21

Exmark 32128-43

NUT-FLANGE

$1.49

$

In Stock, Qty 5

0

22

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

23

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

25

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 17

0

27

Exmark 103-8631

BRACKET-CLAMP

$13.99

$

Usually ships in 3-6 days

0

28

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

29

Exmark 116-7836

12CC HYDRO PUMP ASM

$1057.99

$

Usually ships in 3-6 days

0

30

Exmark 116-5634

TIRE AND WHEEL ASM

$451.99

$

Usually ships in 3-6 days

0

31

Exmark 116-7831

HYDRAULIC HOSE ASM

$57.99

$

Usually ships in 3-6 days

0

32

Exmark 103-2156

FITTING-STRAIGHT

$45.99

$

In Stock, only 4 left!

0

32:1

Exmark 1-603921

BOSS O-RING
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

32:2

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

34

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Exmark 126-4400

HYDRAULIC HOSE ASM

$39.99

$

Usually ships in 3-6 days

0

36

Exmark 116-7827

HYDRAULIC HOSE ASM

$90.99

$

Usually ships in 3-6 days

0

37

Exmark 116-7828

HYDRAULIC HOSE ASM

$90.99

$

Usually ships in 3-6 days

0

38

Exmark 116-7829

HYDRAULIC HOSE ASM

$90.99

$

Usually ships in 3-6 days

0

39

Exmark 116-7830

HYDRAULIC HOSE ASM

$90.99

$

Usually ships in 3-6 days

0

40

Exmark 109-1264

HYDRAULIC HOSE ASM

$101.99

$

Usually ships in 3-6 days

0

41

Exmark 103-5469

ADAPTER-TEE

$96.99

$

Usually ships in 3-6 days

0

41:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

42

Exmark 103-1828

ADAPTER-RUN, TEE

$50.99

$

Usually ships in 3-6 days

0

42:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

43

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

44

Exmark 103-5452

HOSE-HYD

$10.99

$

Usually ships in 3-6 days

0

45

Exmark 103-5477

HOSE-HYD

$36.99

$

Usually ships in 3-6 days

0

46

Exmark 100-4887

FITTING-ELBOW, 90

$28.99

$

In Stock, only 1 left!

0

46:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

48

Exmark 103-7349

IDLER ASM

$200.99

$

Usually ships in 3-6 days

0

49

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

0

50

Exmark 116-6361

PULLEY

$62.99

$

In Stock, only 1 left!

0

51

Exmark 106-5574

SPACER-MOUNTING, STEERING

$13.99

$

Usually ships in 3-6 days

0

52

Exmark 1-653331

SPRING-IDLER

$13.99

$

In Stock, only 2 left!

0

53

Exmark 323-20

SCREW-HH

$3.99

$

In Stock, Qty 11

0

54

Exmark 323-12

SCREW-HH

$2.99

$

In Stock, Qty 7

0

55

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

56

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

58

Exmark 103-4244

USE 103-4244-SL
(Superseded to 103-4244-SL)

$51.99

$

Usually ships in 3-6 days

0
