NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Fuel Assembly Parts Diagram

42" Navigator Front Mount Mower, Kohler CH740

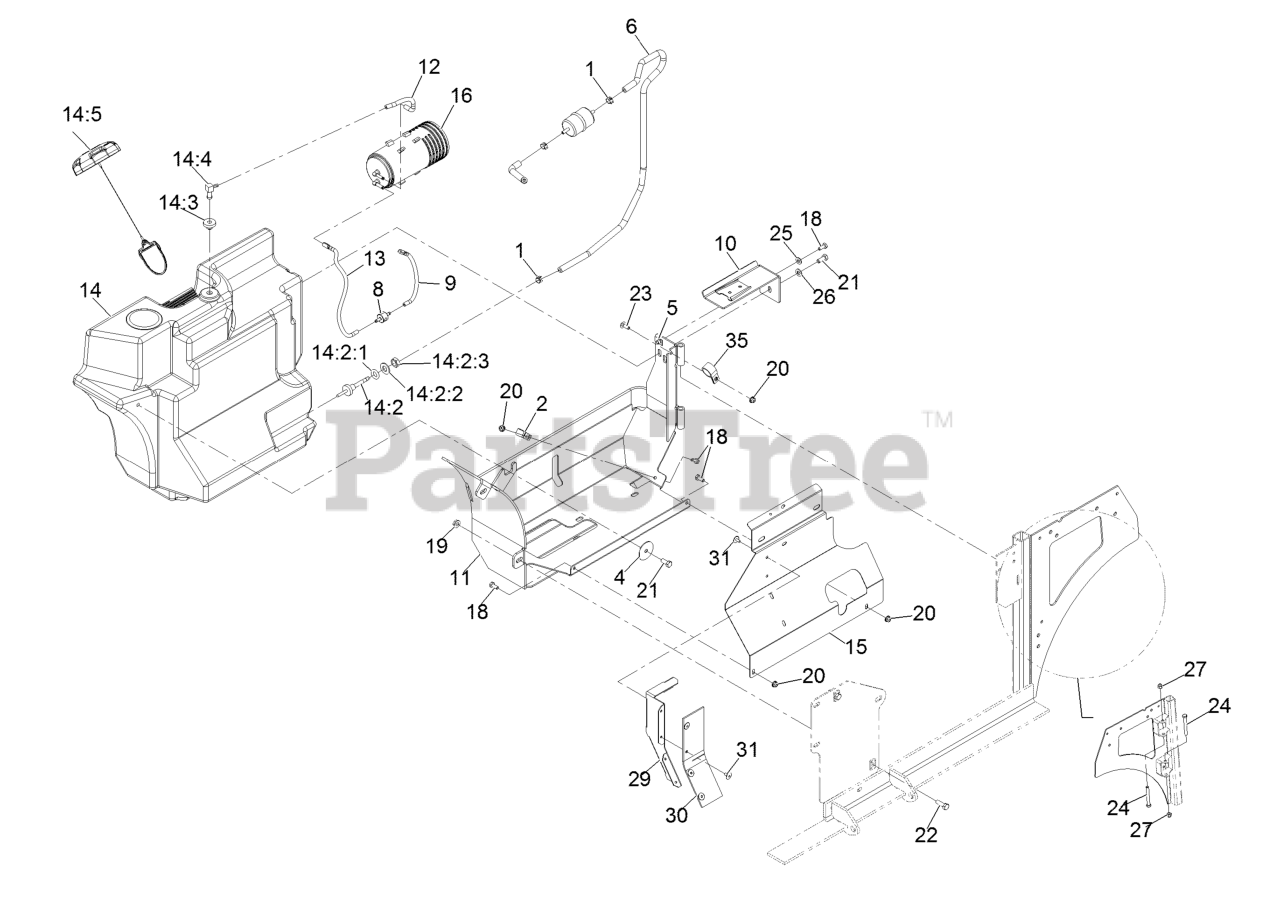

Fuel Assembly Parts Diagram

  • Title

1

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-513762

Clip-Loom 1/2

$7.99

$

In Stock, only 1 left!

0

4

Exmark 1-653036

Washer

$5.49

$

In Stock, only 1 left!

0

5

Exmark 107069

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

6

Exmark 109-0284

Hose-Fuel Line 29"

$11.99

$

Usually ships in 3-6 days

0

8

Exmark 133-8499

Valve-Check, Vacuum

$15.99

$

Usually ships in 3-6 days

0

9

Exmark 116-2619

Hose-Vent, Formed

$7.99

$

Usually ships in 3-6 days

0

10

Exmark 116-2847-03

Canister Bracket ASM

$58.99

$

Usually ships in 3-6 days

0

11

Exmark 116-2848-03

Tank Frame ASM

$347.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2966

Hose-Vent, Formed

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 116-2967

Hose-Vent, Formed

$8.49

$

Usually ships in 3-6 days

0

14

Exmark 116-8365

Fuel Tank ASM

$556.99

$

Usually ships in 3-6 days

0

14:2

Exmark 103-6057

Fitting-Fuel Bulkhead W/Screen

$47.99

$

Usually ships in 3-6 days

0

14:2:1

Exmark 103-2784

O-Ring

$13.99

$

In Stock, only 3 left!

0

14:2:2

Exmark 3256-26

Washer-1/2 SAE

$0.99

$

In Stock, Qty 20+

0

14:2:3

Exmark 3220-5

Nut-Jam 1/2-20

$1.99

$

In Stock, Qty 8

0

14:3

Exmark 46-6560

Bushing

$5.99

$

In Stock, Qty 20+

0

14:4

Exmark 100-1596

Fitting-90 DEG
(Superseded to 104-5228)

$18.99

$

In Stock, only 1 left!

0

14:5

Exmark 137-4119

Cap-Fuel, Ratcheting

$26.99

$

In Stock, Qty 8

0

15

Exmark 116-7928-03

Panel-Tank Shield

$64.99

$

Usually ships in 3-6 days

0

16

Exmark 117-1221

Canister-Carbon, 800Cc

$73.99

$

In Stock, only 2 left!

0

18

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, only 1 left!

0

19

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

20

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

21

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

22

Exmark 322-5

Screw-HH 5/16-18 X 1

$0.99

$

In Stock, Qty 20+

0

23

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 11

0

24

Exmark 323-14

Screw-HH 3/8-16 X 3

$3.99

$

In Stock, Qty 17

0

25

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

27

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

29

Exmark 103-7095-03

Deflector-Air

$67.99

$

Usually ships in 3-6 days

0

30

Exmark 103-9658

Flap-Rubber

$22.99

$

Usually ships in 3-6 days

0

31

Exmark 1-803035

Rivet 3/16 X 1/4

$1.49

$

In Stock, only 2 left!

0

35

Exmark 110-0824

R-Clamp

$5.49

$

Usually ships in 3-6 days

0
