NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Gearbox Assembly No. 103-3460 Parts Diagram

42" Navigator Front Mount Mower, Kohler CH740

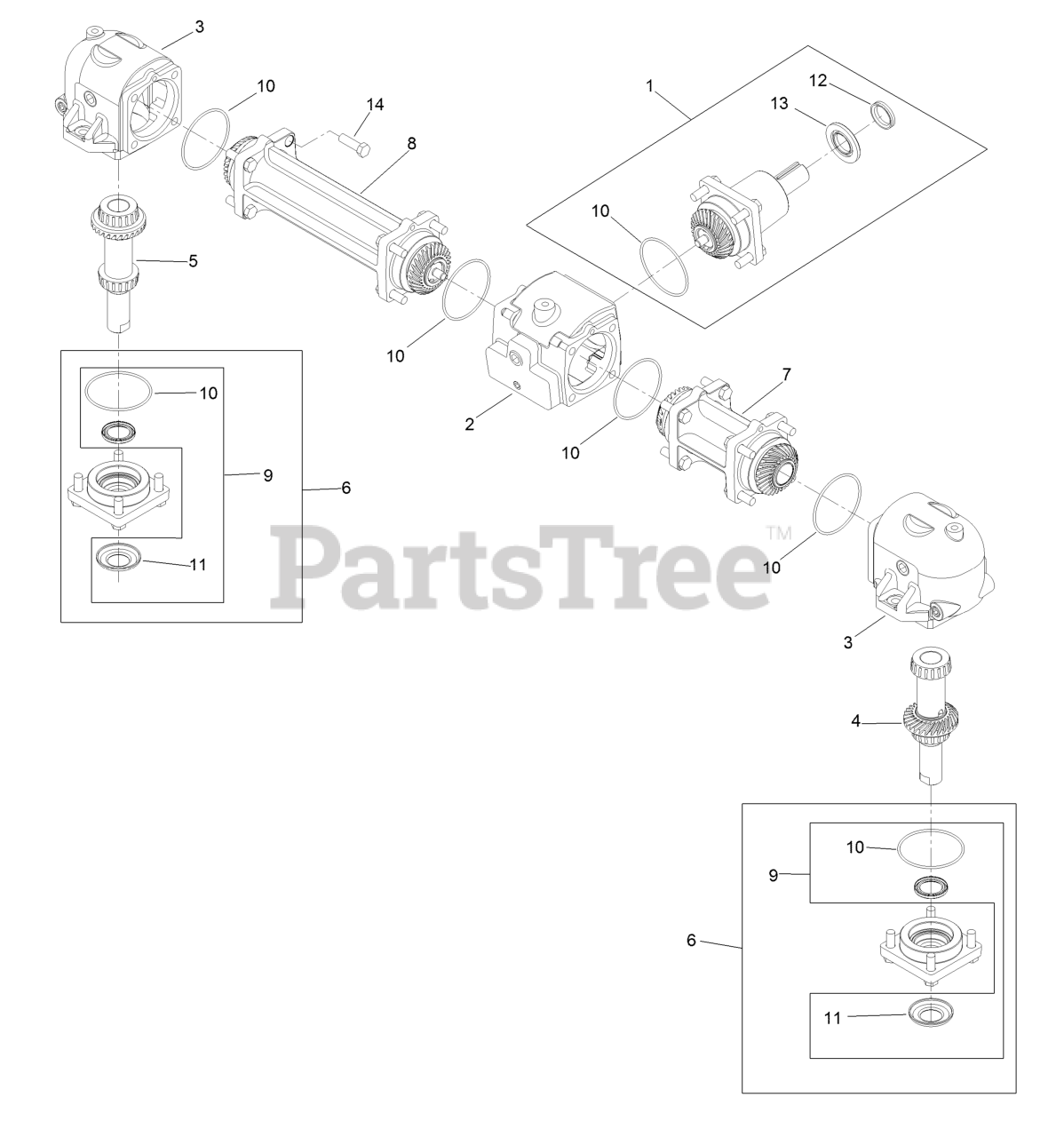

Gearbox Assembly No. 103-3460 Parts Diagram

  • Title

1

Exmark 109-0188

Input Pinion ASM

$547.99

$

Usually ships in 3-6 days

0

2

Exmark 109-0190

Housing-Center

$381.99

$

Usually ships in 3-6 days

0

3

Exmark 109-0191

Housing-End

$296.99

$

Usually ships in 3-6 days

0

4

Exmark 109-0192

LH Output Shaft And Gear ASM

$444.99

$

Usually ships in 3-6 days

0

5

Exmark 109-0194

RH Output Shaft And Gear ASM

$451.99

$

Usually ships in 3-6 days

0

6

Exmark 109-0196

Cap-Output

$167.99

$

Usually ships in 3-6 days

0

7

Exmark 109-0197

Tube-Connector, Short

$678.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0199

Tube-Connector, Long

$729.99

$

Usually ships in 3-6 days

0

9

Exmark 109-0201

Output Seal Kit

$31.99

$

Usually ships in 3-6 days

0

10

Exmark 109-0203

Seal-O-Ring

$12.99

$

In Stock, Qty 9

0

11

Exmark 109-0204

Washer-Cupped

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 109-0205

Seal-V-Ring

$17.99

$

In Stock, only 1 left!

0

13

Exmark 109-0202

Seal-Input

$59.99

$

Usually ships in 3-6 days

0

14

Exmark 93-3987

Bolt-Blade
(Superseded to AU328-620)

$0.99

$

In Stock, only 1 left!

0
