NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

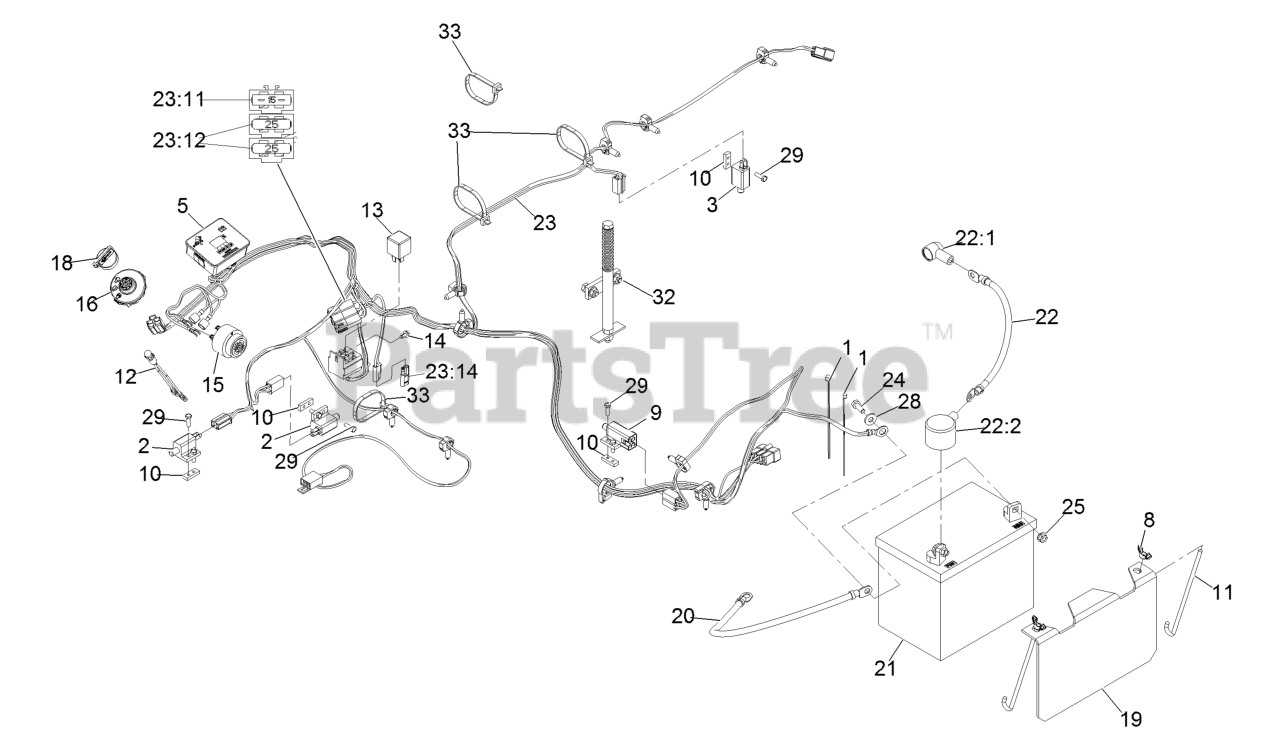

Electrical Assembly Parts Diagram

  • Title

1

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 1-513051

Switch-N.O.

$20.99

$

In Stock, Qty 20+

0

3

Exmark 1-513152

Switch-N.C.

$14.99

$

In Stock, only 3 left!

0

5

Exmark 116-8812

Hour Meter ASM

$156.99

$

Usually ships in 3-6 days

0

8

Exmark 1-543792

Wingnut-Nyloc 1/4-20

$6.99

$

In Stock, Qty 13

0

9

Exmark 1-633111

Switch

$22.99

$

In Stock, Qty 20+

0

10

Exmark 1-633181

Plate-Tapped

$6.99

$

In Stock, Qty 12

0

11

Exmark 1-633651

Bolt-Holddown

$8.49

$

In Stock, Qty 12

0

12

Exmark 1-643267

Indicator-Red LED

$26.99

$

In Stock, only 4 left!

0

13

Exmark 1-643275

Relay-12Vdc 40 Amp

$25.99

$

In Stock, Qty 13

0

14

Exmark 104-2065

Screw-HWH #10-24 X 3/8

$0.99

$

In Stock, Qty 20+

0

15

Exmark 103-0205

Alarm-Dual Tone 12Vdc

$71.99

$

In Stock, only 2 left!

0

16

Exmark 137-4100

Switch-Ignition

$29.99

$

In Stock, Qty 20+

0

18

Exmark 103-2106

Key-Exmark Logo

$5.99

$

In Stock, Qty 12

0

19

Exmark 103-4161-03

Hold Down-Battery

$43.99

$

Usually ships in 3-6 days

0

20

Exmark 103-8355

Cable-Ground(-)

$18.99

$

Usually ships in 3-6 days

0

21

Battery (300 CCA, Wet)

$

$

Not available

22

Exmark 116-4730

Cable-Battery, Positive

$21.99

$

Usually ships in 3-6 days

0

22:1

Exmark 1-543393

Insulator-Solenoid

$5.99

$

In Stock, only 1 left!

0

22:2

Exmark 109-2407

Insulator-Battery

$5.99

$

In Stock, only 2 left!

0

23

Exmark 116-9114

Harness-Wiring

$410.99

$

Usually ships in 3-6 days

0

23:11

Exmark 109355

Fuse-Blade, 15 Amp

$3.99

$

In Stock, only 2 left!

0

23:12

Exmark 109102

Fuse-Blade, 25 Amp

$6.49

$

Usually ships in 3-6 days

0

23:14

Exmark 116-0053

Cap-Plug

$43.99

$

Usually ships in 3-6 days

0

24

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

25

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 17

0

28

Exmark 3256-2

Washer-1/4 Std
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 17

0

29

Exmark 3290-134

Screw-HH Machine 10-24 X 5/8

$0.99

$

In Stock, Qty 20+

0

32

Exmark 103-8528

Hopper Switch Actuator ASM

$110.99

$

Usually ships in 3-6 days

0

33

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 10

0
