NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Hopper Door Assembly No. 103-9456 Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

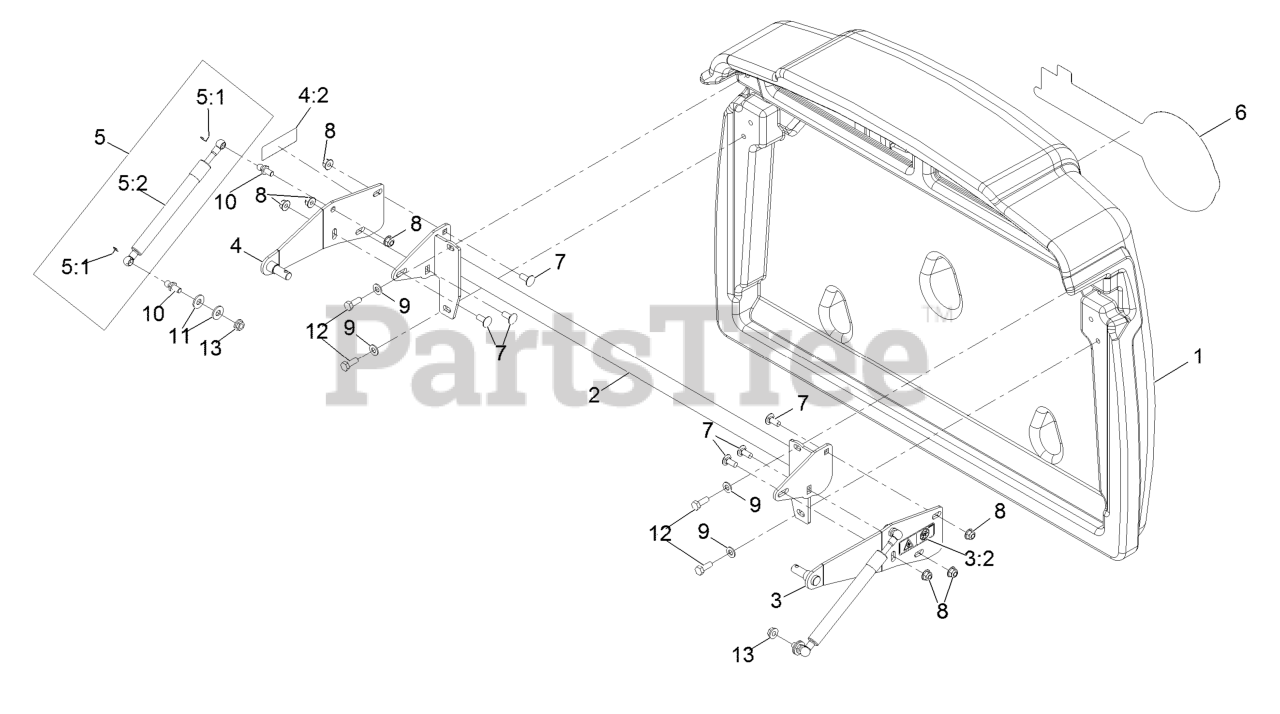

Hopper Door Assembly No. 103-9456 Parts Diagram

  • Title

1

Exmark 109-3955

Door, 9.5 Bushel Hopper

$533.99

$

Usually ships in 3-6 days

0

2

Exmark 109-4153-03

Support-Door

$149.99

$

Usually ships in 3-6 days

0

3

Exmark 109-4253

LH Door Pivot ASM

$92.99

$

In Stock, only 1 left!

0

3:2

Exmark 120-0625

Decal-Warning, Pinch Point

$4.49

$

Usually ships in 3-6 days

0

4

Exmark 109-4254

RH Door Pivot ASM

$92.99

$

In Stock, only 1 left!

0

4:2

Exmark 120-0625

Decal-Warning, Pinch Point

$4.49

$

Usually ships in 3-6 days

0

5

Exmark 109-0715

Damper Kit

$153.99

$

Usually ships in 3-6 days

0

5:1

Exmark 103-8324

Clip-Retainer

$1.49

$

In Stock, Qty 8

0

5:2

Exmark 103-5746

Shock-Gas Tension

$148.99

$

Usually ships in 3-6 days

0

6

Exmark 126-7353

Decal-Exmark Logo

$26.99

$

Usually ships in 3-6 days

0

7

Exmark 3230-23

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3256-23

Washer-Plain

$2.49

$

In Stock, Qty 20+

0

10

Exmark 103-5752

Stud-Ball

$7.99

$

Usually ships in 3-6 days

0

11

Exmark 3256-3

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

12

Exmark 322-4

Screw-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 32128-20

Nut-HF

$1.49

$

In Stock, Qty 20+

0
