NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Seat Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

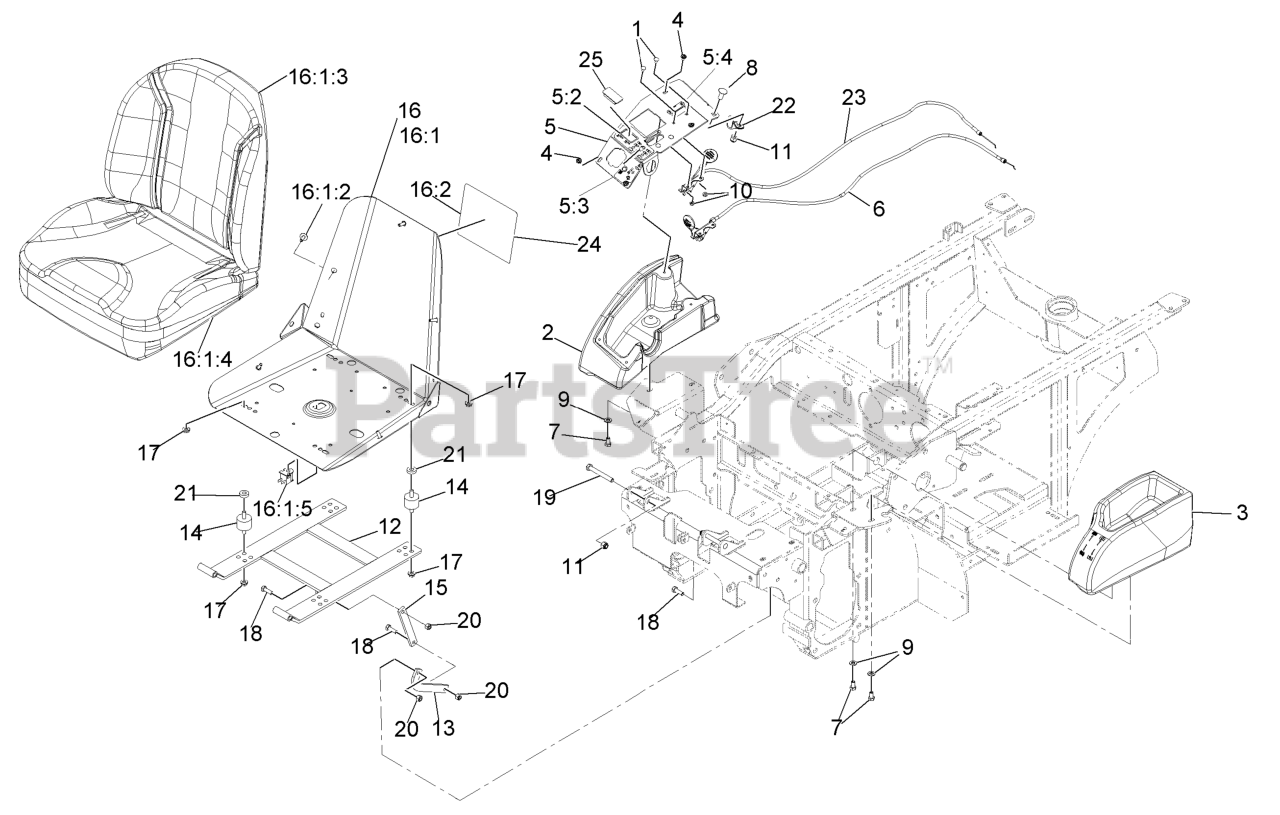

Seat Assembly Parts Diagram

  • Title

1

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 20+

0

2

Exmark 116-9430

Console-RH

$226.99

$

Usually ships in 3-6 days

0

3

Exmark 126-4342

Console, LH Grey

$226.99

$

In Stock, only 1 left!

0

4

Exmark 109-2661

Screw-PPH #10-24 X 1/2

$1.49

$

In Stock, Qty 13

0

5

Exmark 116-9374

Control Panel ASM

$171.99

$

Usually ships in 3-6 days

0

5:2

Exmark 116-9375

Decal-Nav Console 640Kc

$15.99

$

Usually ships in 3-6 days

0

5:3

Exmark 126-7442

Decal-Speed Control

$21.99

$

Usually ships in 3-6 days

0

5:4

Exmark 116-9470

Decal-Choke

$9.99

$

Usually ships in 3-6 days

0

6

Exmark 109-4641

Cable-Throttle

$42.99

$

In Stock, only 2 left!

0

7

Exmark 322-2

Screw-HH 5/16-18 X 5/8

$2.99

$

In Stock, Qty 20+

0

8

Exmark 3231-27

Bolt-Carriage 3/8-16 X 7/8

$4.99

$

In Stock, Qty 20+

0

9

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

10

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

12

Exmark 103-4362-03

Frame-Seat

$192.99

$

Usually ships in 3-6 days

0

13

Exmark 116-9554

Link-Seat Stop

$20.99

$

Usually ships in 3-6 days

0

14

Exmark 103-5496

Mount-Vibration, Rubber

$28.99

$

Usually ships in 3-6 days

0

15

Exmark 103-8563

Link-Seat

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 126-9643

ASM-Seat W/Decal

$590.99

$

Usually ships in 3-6 days

0

16:1

ASM-Seat, Navigator

$

$

Not available

16:1:2

Exmark 103-8383

Screw-HWH 1/4-20 X 3/4 Taptite

$2.99

$

Usually ships in 3-6 days

0

16:1:3

Exmark 131-4150

Cushion-Seat, Back

$319.99

$

Usually ships in 3-6 days

0

16:1:4

Exmark 126-5900

Cover-Seat Bottom Svc

$340.99

$

Usually ships in 3-6 days

0

16:1:5

Exmark 82-2190

Switch

$15.99

$

In Stock, Qty 20+

0

16:2

Exmark 116-9044

Decal-Service Aid

$16.99

$

Usually ships in 3-6 days

0

17

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

18

Exmark 322-5

Screw-HH 5/16-18 X 1

$0.99

$

In Stock, Qty 20+

0

19

Exmark 323-14

Screw-HH 3/8-16 X 3

$4.49

$

In Stock, Qty 20+

0

20

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.99

$

In Stock, Qty 20+

0

21

Exmark 5-0652

Spacer

$8.49

$

In Stock, only 2 left!

0

22

Exmark 1-643312

Clip-Loom

$6.99

$

In Stock, only 2 left!

0

23

Exmark 109-4640

Cable-Choke

$42.99

$

Usually ships in 3-6 days

0

24

Exmark 116-9044

Decal-Service Aid

$16.99

$

Usually ships in 3-6 days

0

25

Exmark 99-7420

Plug-Hole

$9.49

$

Usually ships in 3-6 days

0
