NX-200 (2691374-00) - Snapper 19" Walk-Behind Mower Deck & Engine Group Parts Diagram

19" Walk-Behind Mower

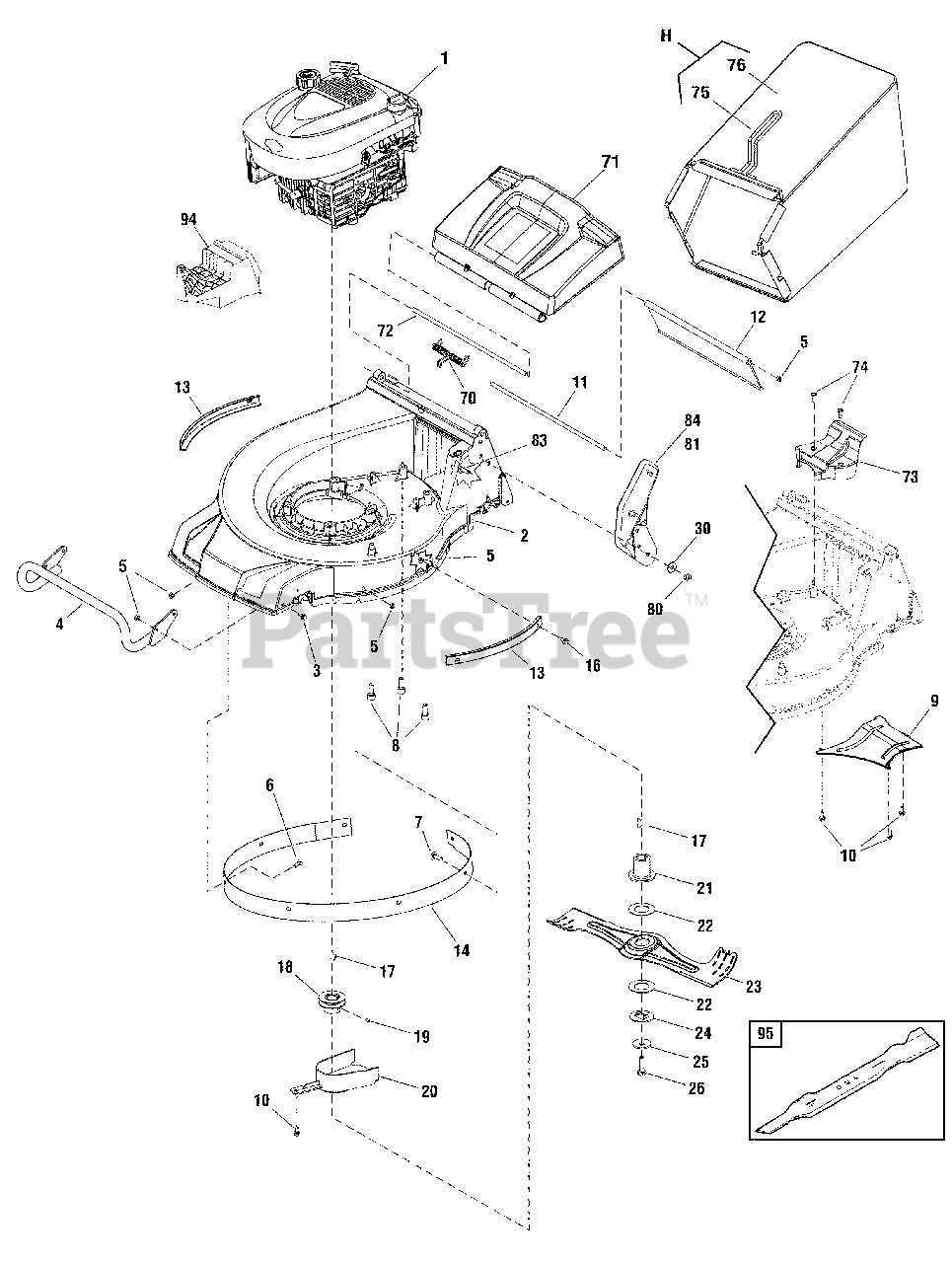

Deck & Engine Group Parts Diagram

  • Title

1

Snapper 122Q02-0029-H1

* ENGINE, 850 Series, Briggs & Stratton

Note: (Engine Model: 122Q02-0029-H1)

$

$

Not available

2

Snapper 701180

DECK, 19"
(Superseded to 701180YP)

$883.99

$

Usually ships in 2-12 days

0

3

Snapper 701181

BOLT, Hex Flange
(Superseded to 701181YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 701182

BUMPER, 19"
(Superseded to 701182YP)

$52.99

$

Usually ships in 2-12 days

0

5

Snapper 701183

NUT, Hex, Nylon Insert, Torque Type
(Superseded to 701183YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 701184

SCREW, Truss Head, Cross Recessed
(Superseded to 701184YP)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 701185

SCREW, Truss Head, Cross Recessed
(Superseded to 701185YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 701186

SCREW, Inner Hexagon, Round Head, Tapping
(Superseded to 701186YP)

$5.49

$

In Stock, only 2 left!

0

9

Snapper 701252

DEFLECTOR, Lower
(Superseded to 701252YP)

$58.99

$

Usually ships in 2-12 days

0

10

Snapper 701187

SCREW, Hex Flange, Tapping
(Superseded to 701187YP)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 701188

SHAFT, Rear Deflector
(Superseded to 701188YP)

$13.99

$

Usually ships in 2-12 days

0

12

Snapper 701189

DEFLECTOR, Rear
(Superseded to 701189YP)

$34.99

$

Usually ships in 2-12 days

0

13

Snapper 701190

SHIELD, Outer
(Superseded to 701190YP)

$19.99

$

Usually ships in 2-12 days

0

14

Snapper 701253

SHIELD, Inner Ring
(Superseded to 701253YP)

$59.99

$

Usually ships in 2-12 days

0

16

Snapper 701191

BOLT, Hex Flange
(Superseded to 701191YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 701192

KEY, Woodruff
(Superseded to 701192YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 709648

SCREW, Allen

$34.99

$

Usually ships in 2-12 days

0

19

Snapper 701298

SHIELD, Lower Belt
(Superseded to 701298YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 701299

DISC, Friction
(Superseded to 701299YP)

$14.99

$

Usually ships in 2-12 days

0

21

Snapper 709649

BLADE, 19"

$23.99

$

Usually ships in 2-12 days

0

22

Snapper 701256

CLIP
(Superseded to 701256YP)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 701195

SPRING, Dishing
(Superseded to 701195YP)

$37.99

$

Usually ships in 2-12 days

0

24

Snapper 701257

BOLT, Blade
(Superseded to 701257YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 701196

WASHER, Flat, C-Class
(Superseded to 701196YP)

$11.99

$

Usually ships in 2-12 days

0

26

Snapper 701197

SPRING, Torsion
(Superseded to 701197YP)

$9.99

$

Usually ships in 2-12 days

0

30

Snapper 701230

COVER, Rear
(Superseded to 701230YP)

$3.49

$

Usually ships in 2-12 days

0

70

Snapper 701223

SHAFT, Rear Cover
(Superseded to 701223YP)

$11.99

$

Usually ships in 2-12 days

0

71

Snapper 701276

SHIELD, Upper Pulley
(Superseded to 701276YP)

$131.99

$

Usually ships in 2-12 days

0

72

Snapper 701224

SCREW, Inner Hexagon Tapping
(Superseded to 701224YP)

$13.99

$

Usually ships in 2-12 days

0

73

Snapper 701225

GRASS CATCHER ASSEMBLY
(Superseded to 701225YP)

Note: (Includes Ref. Nos. 75 & 76)

$37.99

$

Usually ships in 2-12 days

0

74

Snapper 701226

FRAME, Grass Catcher
(Superseded to 701226YP)

Note: (Not a serviceable part, order Ref. H)

$3.99

$

Usually ships in 2-12 days

0

H

Snapper 701227

BAG, Grass Catcher
(Superseded to 701227YP)

Note: (Not a serviceable part, order Ref. H)

$213.99

$

Usually ships in 2-12 days

0

75

NUT, Hex, Nylon Insert, Torque Type

$

$

Not available

76

BRACKET, Right

$

$

Not available

80

Snapper 701228

BOLT, Carriage
(Superseded to 701228YP)

$3.49

$

Usually ships in 2-12 days

0

81

Snapper 701282

BRACKET, Left
(Superseded to 701282YP)

$78.99

$

Usually ships in 2-12 days

0

83

Snapper 701229

PLUG, Mulch, 19"
(Superseded to 701229YP)

$3.99

$

Usually ships in 2-12 days

0

84

Snapper 701283

BLADE, Mulch, 19"
(Superseded to 701283YP)

Note: (Optional Accessory)

$78.99

$

Usually ships in 2-12 days

0

94

Snapper 702120

PULLEY, Engine
(Superseded to 702120YP)

$119.99

$

Usually ships in 2-12 days

0

95

Snapper 702119

ADAPTOR, Blade
(Superseded to 702119YP)

$30.99

$

Usually ships in 2-12 days

0
