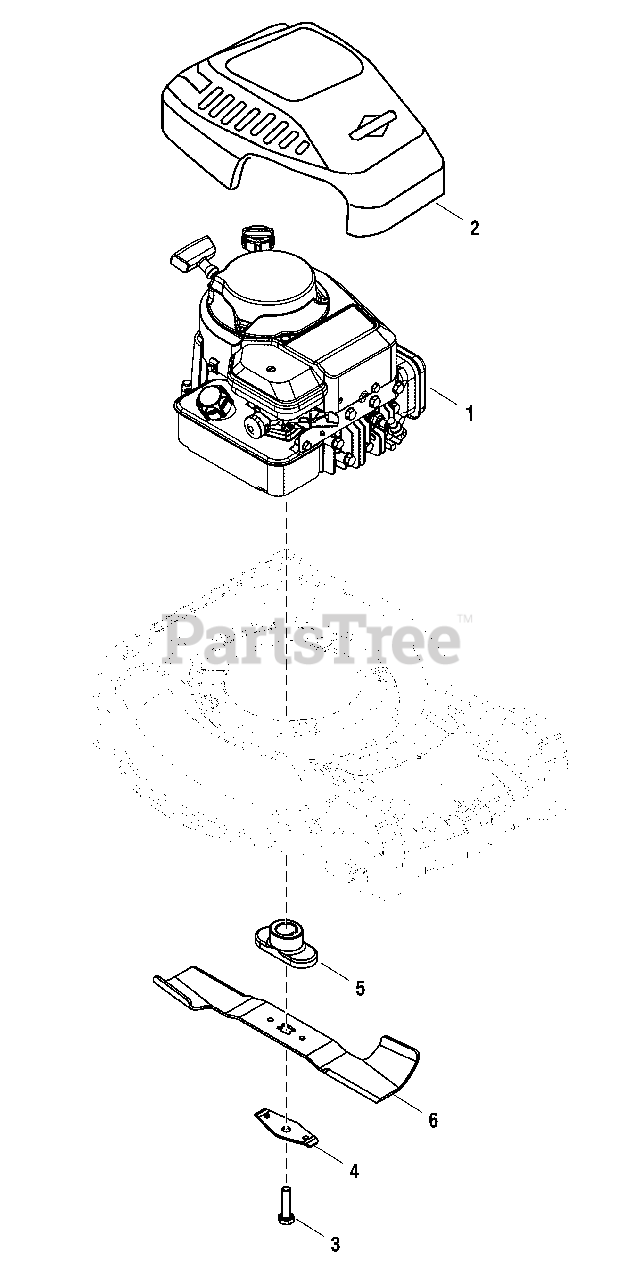

NX-30 (2691203-00) - Snapper 16" Walk-Behind Mower Engine & Blade Group Parts Diagram

16" Walk-Behind Mower

Engine & Blade Group Parts Diagram

  • Title

1

Snapper 08P602-0011-H1

* ENGINE, Briggs & Stratton, Mod. 08P602-0011-H1

$

$

Currently unavailable

2

Snapper 704704

SHROUD

$

$

Currently unavailable

3

Snapper 704785

SCREW Hex, 3/8-24 x 1-1/2

$

$

Currently unavailable

4

Snapper 703520

SUPPORT, Blade Bell

$11.99

$

In Stock, Qty 9

0

5

Snapper 704713

BLADE ADAPTER

$

$

Currently unavailable

6

Snapper 704727

BLADE

$

$

Currently unavailable
