NXT 22875EE (7800840) - Snapper 22" Walk-Behind Mower, 8.75hp Handles & Controls Group, EHOC Parts Diagram

22" Walk-Behind Mower, 8.75hp

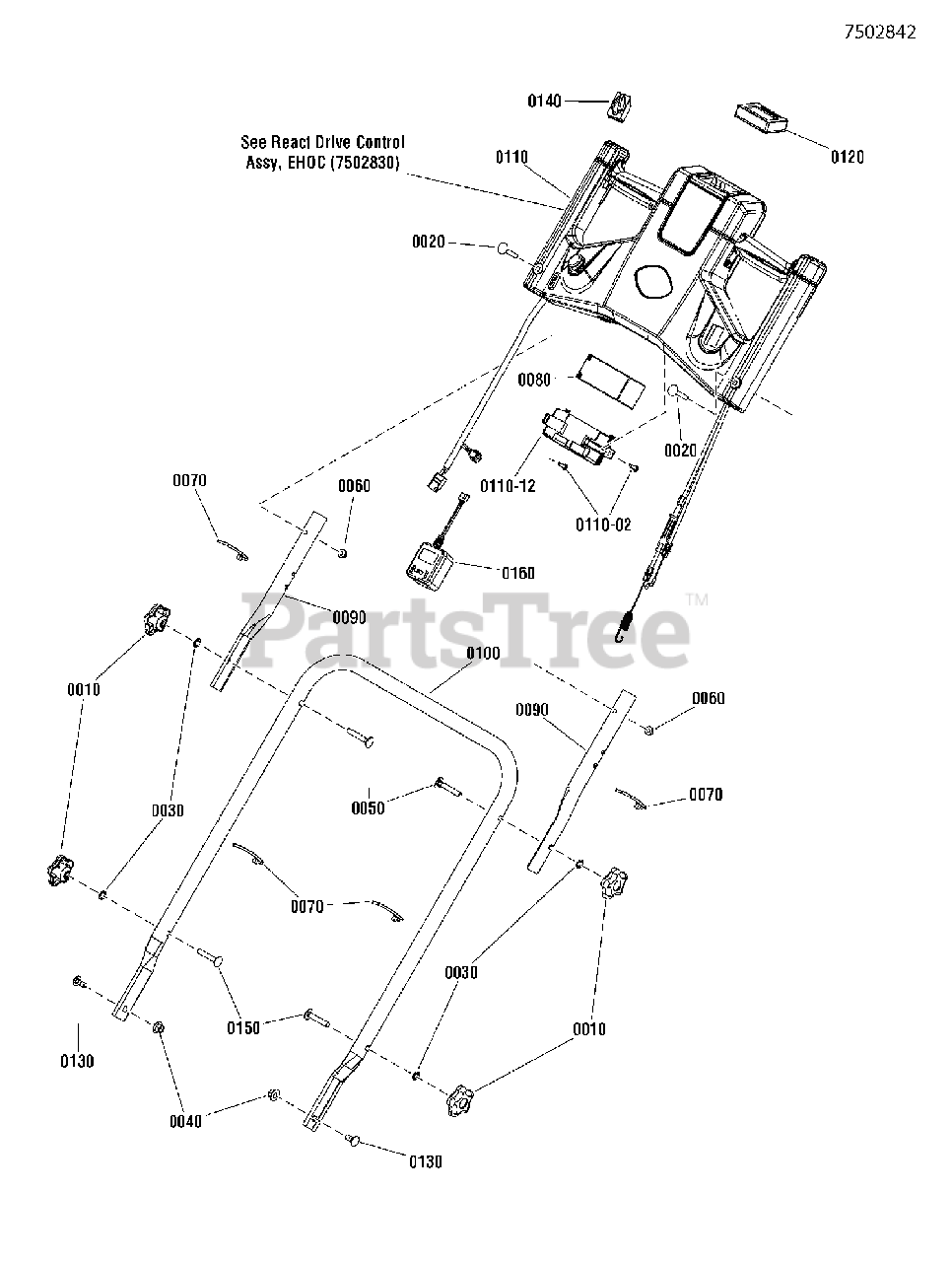

Handles & Controls Group, EHOC Parts Diagram

  • Title

0010

Snapper 7105085

KNOB, Handle, 5-Prong (5/16-18 internal threads)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0020

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Round Head Square Neck, GR 2, YZ
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

0030

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 7090951

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

0050

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 10

0

0060

Snapper 2860694

NUT, 1/4-20 Hex Flange (Esna), YZ
(Superseded to 703463)

$4.49

$

In Stock, only 3 left!

0

0070

Snapper 7024649

WIRE TIE, 11 Inch Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

0080

Snapper 7102931

BATTERY, 1.3A/Hr
(Superseded to 707495)

$64.99

$

In Stock, only 2 left!

0

0090

Snapper 7300649BH

HANDLE, Connecting, 21"/22" WBM
(Superseded to 7300649BHYP)

$26.99

$

Usually ships in 2-12 days

0

0100

Snapper 7301189BH

HANDLE, Lower, WBM, RD
(Superseded to 7301189BHYP)

$176.99

$

Usually ships in 2-12 days

0

0110

Snapper 7502830

ASSEMBLY, React Drive Control, FWD, ES, EHOC
(Superseded to 7502830YP)

$253.99

$

Usually ships in 2-12 days

0

0110-02

Snapper 7091195

SCREW, #10-16 x 3/4" Pan Head Self-Tap Combo, BZ
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

0110-12

Snapper 7103345

DOOR, Access, Battery, Control Panel
(Superseded to 7103345YP)

$10.99

$

Usually ships in 2-12 days

0

0120

Snapper 7103774

METER, Service Indicator
(Superseded to 7103774YP)

$56.99

$

Usually ships in 2-12 days

0

0130

Snapper 723873

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5, YZ
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0140

Snapper 7104598

SWITCH, Rotary, EHOC
(Superseded to 7104598YP)

$101.99

$

In Stock, only 1 left!

0

0150

Snapper 1931338

BOLT, 5/16-18 x 1-3/4" Round Head Square Neck Carriage
(Superseded to 703175)

$3.99

$

In Stock, only 1 left!

0

0160

Snapper 7103988

CHARGER, Battery, 14V, 260MA
(Superseded to 770625)

$59.99

$

In Stock, only 1 left!

0
