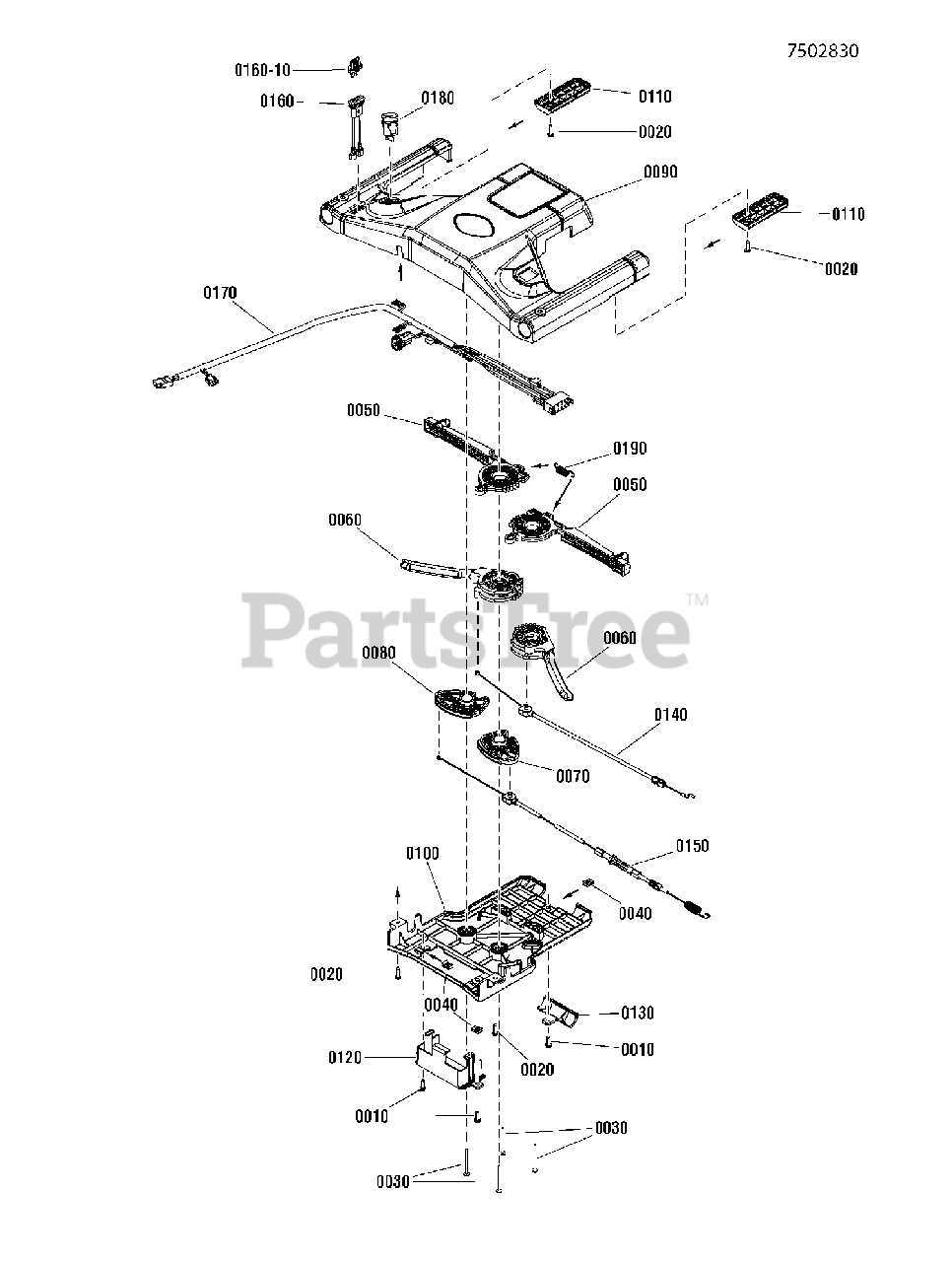

  • Title

0010

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Face Self-Tap, GR 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 9

0

0020

Snapper 7091195

SCREW, #10-16 x 3/4" Pan Head Self-Tap Combo, BZ
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

0030

Snapper 7900081

SCREW, #10-16 x 2" Hi-Lo Cross Pan Head
(Superseded to 7900081YP)

$3.49

$

Usually ships in 2-12 days

0

0040

Snapper 1960593

NUT, #10-24 Speed Retainer w/extrusion
(Superseded to 1960593SM)

$4.99

$

Usually ships in 2-12 days

0

0050

Snapper 7105188

LEVER, Drive Control
(Superseded to 7105188YP)

$14.99

$

Usually ships in 2-12 days

0

0060

Snapper 7105187

LEVER, OPC Control
(Superseded to 7105187YP)

$12.99

$

Usually ships in 2-12 days

0

0070

Snapper 7102805

CAM, Drive LH
(Superseded to 7102805YP)

$6.49

$

Usually ships in 2-12 days

0

0080

Snapper 7102806

CAM, Drive RH
(Superseded to 7102806YP)

$5.49

$

Usually ships in 2-12 days

0

0090

Snapper 7105228

PANEL, Top, Control

$

$

Currently unavailable

0100

Snapper 7103325

PANEL, Bottom Control
(Superseded to 7103325YP)

$13.99

$

Usually ships in 2-12 days

0

0110

Snapper 7105262

PANEL, Bottom Control - LH/RH
(Superseded to 7105262YP)

$5.49

$

In Stock, only 1 left!

0

0120

Snapper 7103345

DOOR, Access, Battery, Control Panel
(Superseded to 7103345YP)

$10.99

$

Usually ships in 2-12 days

0

0130

Snapper 7103456

PANEL, Access, Maintenance Reminder
(Superseded to 7103456YP)

$6.99

$

Usually ships in 2-12 days

0

0140

Snapper 7103769

CABLE, OPC, 2010 MY Mower
(Superseded to 7104752YP)

$

$

Not available

0150

Snapper 7105092

CABLE, Drive, 2010 MY Mower
(Superseded to 7103770YP)

$

$

Not available

0160

Snapper 7103930

HOUSING, Bridge Disconnect
(Superseded to 7103930YP)

$14.99

$

Usually ships in 2-12 days

0

0160-10

Snapper 7103931

KEY, Bridge Disconnect
(Superseded to 7103931YP)

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper 7104523

HARNESS, ES, NXT, w/EHOC
(Superseded to 7104523YP)

$50.99

$

Usually ships in 2-12 days

0

0180

Snapper 7104001

SWITCH, Push Button Start
(Superseded to 7104001YP)

$14.99

$

Usually ships in 2-12 days

0

0190

Snapper 7104689

SPRING, Tension, Drive Control
(Superseded to 7104689YP)

$5.49

$

In Stock, only 1 left!

0
