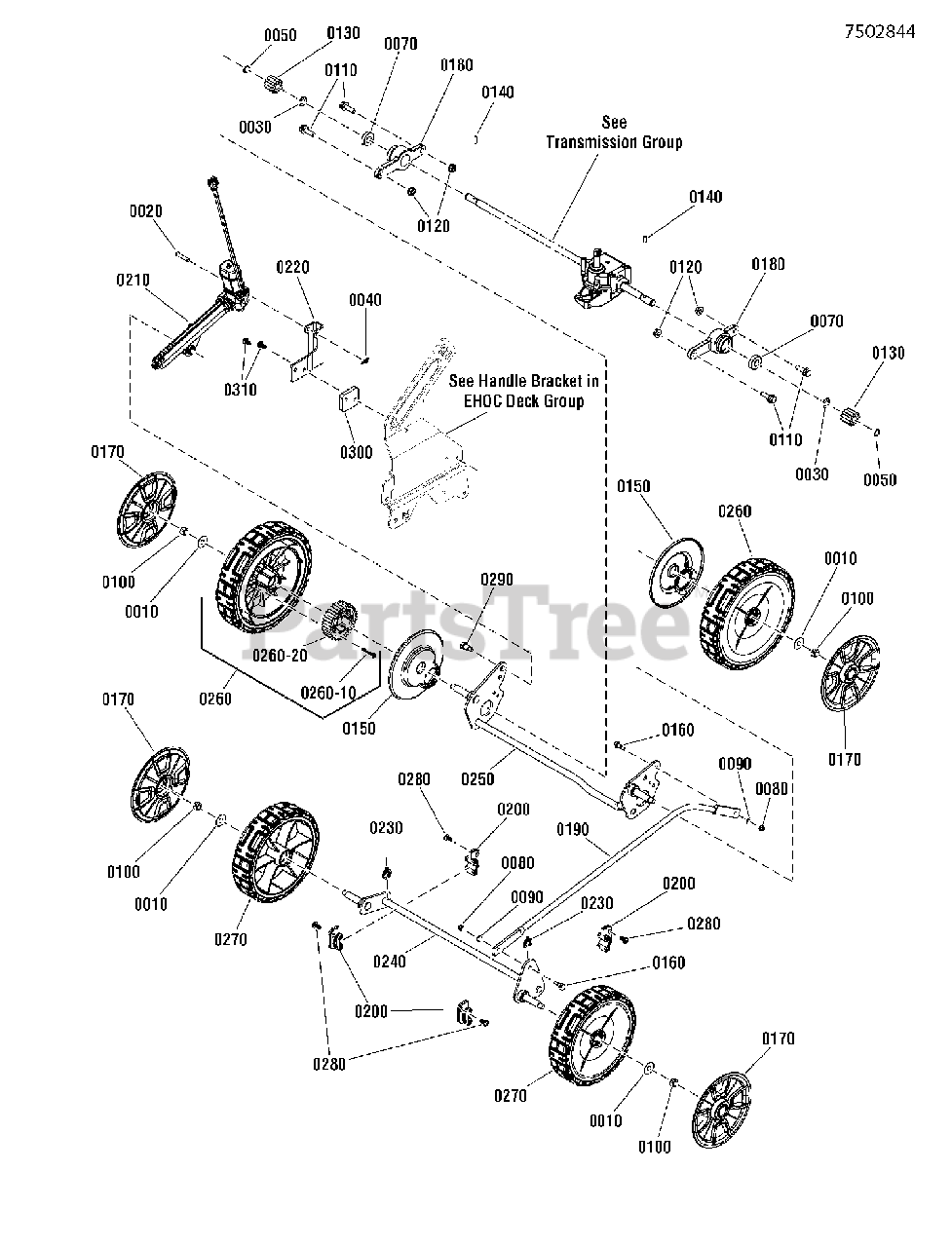

NXT 22875EE (7800840) - Snapper 22" Walk-Behind Mower, 8.75hp Wheels Group, Electric HOC Parts Diagram

22" Walk-Behind Mower, 8.75hp

Wheels Group, Electric HOC Parts Diagram

  • Title

0010

Snapper 722604

WASHER, 1" OD x .387 ID, Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0020

Snapper 7023914

PIN, 1/4 x 1-1/4" Clevis
(Superseded to 7023914YP)

$

$

Not available

0030

Snapper 7014341

RETAINING RING, 3.92 EXT.
(Superseded to 703976)

Note: (Waldes #5133-50 or equiv.)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 7023590

PIN, 1/4" Cotter, Self-Locking
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

0050

Snapper 7027999

RETAINING RING, .452-.463 ID
(Superseded to 7027999YP)

Note: (Waldes #5100-50 or equiv.)

$4.49

$

In Stock, Qty 7

0

0070

Snapper 7078243

BALL BEARING, Axle
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 6

0

0080

Snapper 7091290

NUT, #10-24 UNC-2B Nyloc
(Superseded to 703412)

$4.49

$

In Stock, Qty 10

0

0090

Snapper 7091552

WASHER, .219 x .500 x .049 Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, only 4 left!

0

0100

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

0110

Snapper 7091591

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5, YZ
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

0120

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0130

Snapper 7100820

GEAR, Pinion
(Superseded to 7100820YP)

$6.49

$

Usually ships in 2-12 days

0

0140

Snapper 7100861

PIN, Axle
(Superseded to 7100861YP)

$4.99

$

In Stock, only 1 left!

0

0150

Snapper 7101367

SHIELD, Dust, 21" WBM, RD
(Superseded to 7101367YP)

$7.49

$

In Stock, only 2 left!

0

0160

Snapper 7101774

SHOULDER BOLT, #10-24
(Superseded to 7101774YP)

$8.49

$

In Stock, only 4 left!

0

0170

Snapper 7101350

HUBCAP, 8" & 9" Spoked Wheel, Sna Cool Gray
(Superseded to 7101350YP)

$10.99

$

In Stock, only 2 left!

0

0180

Snapper 7103290

HOLDER, Bearing, Rear Wheel Drive
(Superseded to 7103290YP)

$13.99

$

Usually ships in 2-12 days

0

0190

Snapper 7103306D

ROD, Lifter Link, WBM
(Superseded to 7103306DYP)

$40.99

$

Usually ships in 2-12 days

0

0200

Snapper 7104518

BUSHING, Bearing, RWD
(Superseded to 7104518YP)

$4.49

$

In Stock, Qty 15

0

0210

Snapper 7104245

MOTOR, Electric, Height-of-Cut
(Superseded to 7104245YP)

$113.99

$

Usually ships in 2-12 days

0

0220

Snapper 7301178BH

BRACKET, Electric Motor

$

$

Not available

0230

Snapper 7104525

SPACER, Shaft, 1/2"
(Superseded to 7104525YP)

$4.49

$

In Stock, only 1 left!

0

0240

Snapper 7400306

WELDMENT, Front Axle
(Superseded to 7400306YP)

$60.99

$

In Stock, only 3 left!

0

0250

Snapper 7400290

WELDMENT, Rear Crossbar, EHOC, RWD
(Superseded to 7400290YP)

$43.99

$

Usually ships in 2-12 days

0

0260

Snapper 7502607

ASSEMBLY, Wheel, 9 x 2 Drive w/Ext Gear
(Superseded to 7600174YP)

$56.99

$

Usually ships in 2-12 days

0

0260-10

Snapper 7091196

SCREW, #8 x 1-1/4" Hi-Lo
(Superseded to 7091196SM)

$4.99

$

Usually ships in 2-12 days

0

0260-20

Snapper 7100914

GEAR, External Wheel
(Superseded to 7100914YP)

$10.99

$

In Stock, only 2 left!

0

0280

Snapper 7900067

SCREW, 1/4-20 x .550 Pan Head Self-Tap (Torx)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

0290

Snapper 7900078

SHOULDER BOLT, 3/8" Dia.(1/4-20 thread)
(Superseded to 7900078YP)

$20.99

$

Usually ships in 2-12 days

0

0300

Snapper 7301212BH

PLATE, Spacer, Electric Height-of-Cut
(Superseded to 7301212BHYP)

$13.99

$

Usually ships in 2-12 days

0

0310

Snapper 1960671

SCREW, 1/4-20 x 3/4" Pan Head Self-Tap (Torx)
(Superseded to 1960671SM)

$4.99

$

Usually ships in 2-12 days

0

0270

Snapper 7502544

ASSEMBLY, Wheel 8 x 2 Idle w/Bushing
(Superseded to 7502544YP)

$36.99

$

Usually ships in 2-12 days

0
