NXT 22875EEFC (7800782) - Snapper 22" Walk-Behind Mower, 8.75hp Transmission Group Parts Diagram

22" Walk-Behind Mower, 8.75hp

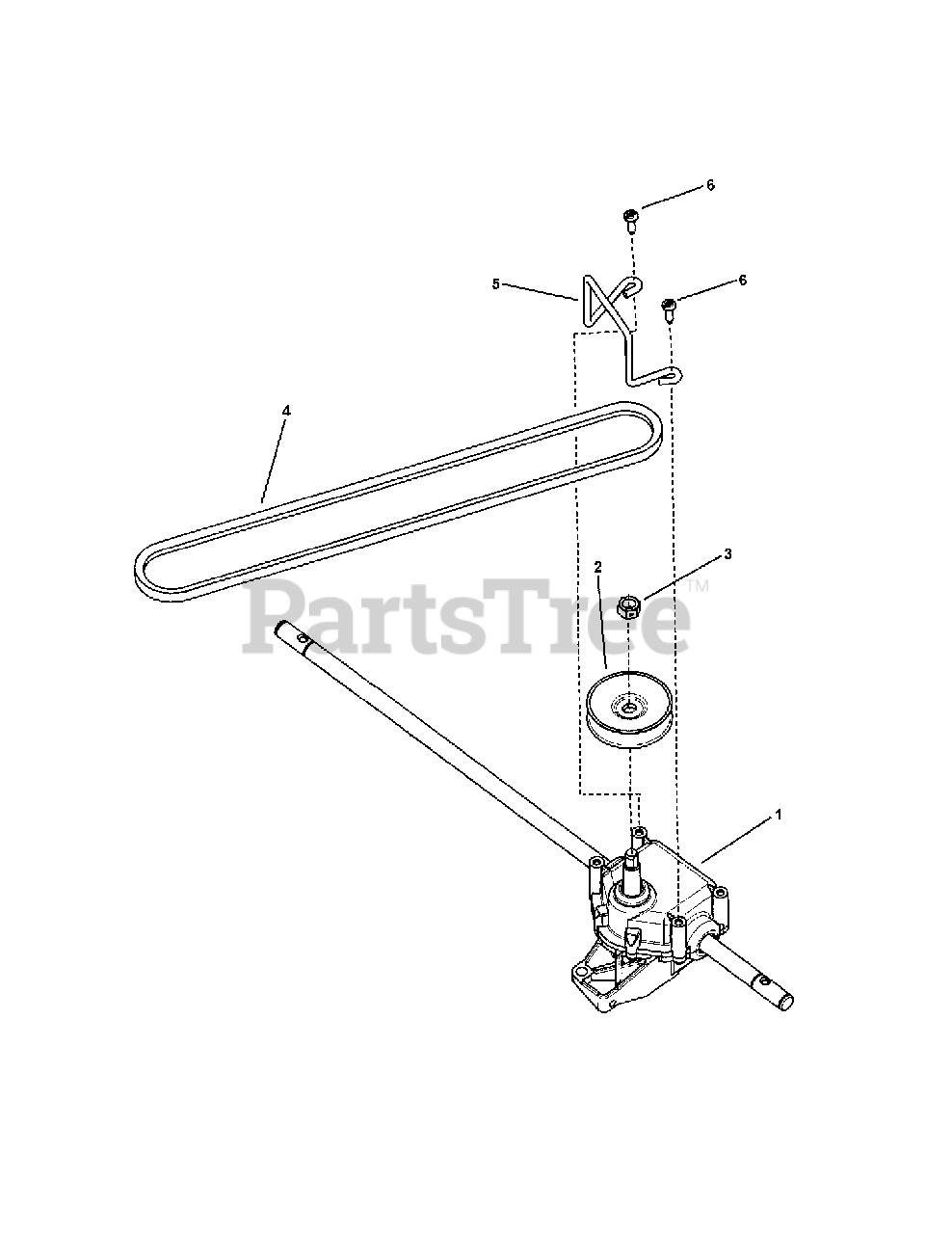

Transmission Group Parts Diagram

  • Title

1

Snapper 7103312

TRANSMISSION, Variable Speed, Rear Wheel Drive
(Superseded to 7105127YP)

$137.99

$

Usually ships in 2-12 days

0

2

Snapper 7100240

PULLEY, Transmission Variable Speed, LC WBM
(Superseded to 7100240YP)

$23.99

$

In Stock, only 1 left!

0

3

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

4

Snapper 7103364

BELT, 3L, Traction Drive, 22" WBM, RWD
(Superseded to 7103364YP)

Note: (3L Section, 33.83" Effective Length)

$21.99

$

In Stock, only 3 left!

0

5

Snapper 7100863

BELT GUIDE, Transmission
(Superseded to 7100863YP)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 7091195

SCREW, #10-16 x 3/4" Pan Head Self-Tap, Combo
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0
