NXT 2548 (2691188-00) - Snapper LT125 Series 48" Lawn Tractor, 25hp 48" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

LT125 Series 48" Lawn Tractor, 25hp

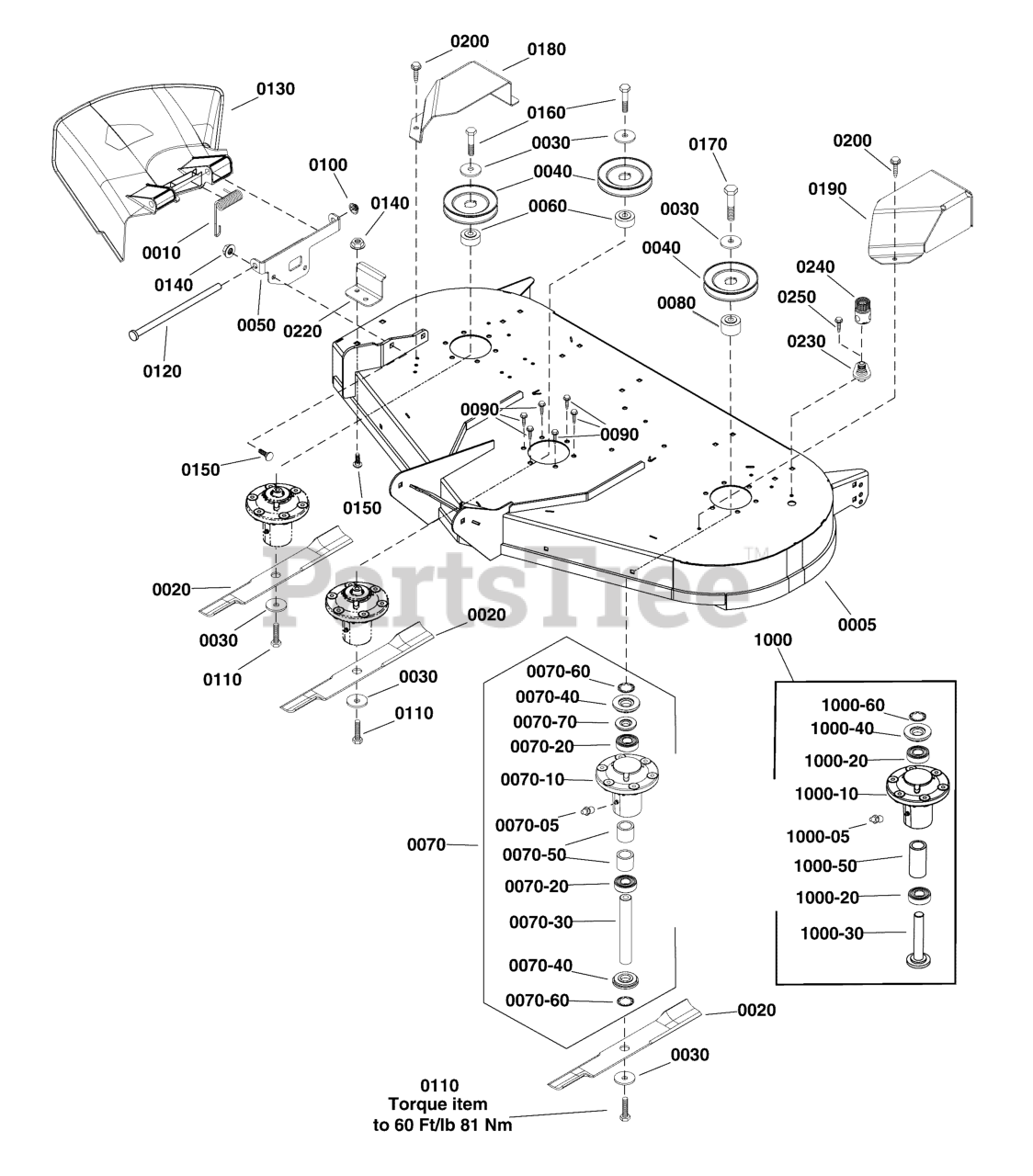

48" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0005

Snapper 1687788YP

KIT, Mower Deck w/Decals, 48"

$1117.99

$

Usually ships in 2-12 days

0

0010

Snapper 7035813SM

SPRING, Torsion

$24.99

$

In Stock, only 3 left!

0

0020

Snapper 1757303YP

BLADE, 48"
(Superseded to 1759055YP)

$27.99

$

In Stock, Qty 20+

0

0030

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Snapper 1732951SM

PULLEY, .68" Deep-Groove OD 4.6"

$19.99

$

In Stock, Qty 19

0

0050

Snapper 1757744BMYP

BRACKET, Deflector

$37.99

$

Usually ships in 2-12 days

0

0060

Snapper 1757443YP

SPACER, Pulley
(Superseded to 706362)

$9.99

$

In Stock, only 2 left!

0

0070

Snapper 1757364YP

ARBOR ASSEMBLY
(Superseded to 84003173)

Note: (Replaced by Ref. Nos. 1000, this arbor assembly is an exact replacement)

$96.99

$

In Stock, Qty 12

0

0070-05

Snapper 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Snapper 1755437YP

HOUSING, w/Lube Fitting
(Superseded to 1760371YP)

$76.99

$

In Stock, Qty 16

0

0070-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-30

Snapper 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

Note: (Replaced by Ref. Nos. 1000-30, this spindle shaft is an exact replacement for the shaft, shield and ring)

$27.99

$

In Stock, Qty 11

0

0070-40

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 20+

0

0070-50

Snapper 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1000-50, this spacer is an exact replacement)

$6.49

$

In Stock, Qty 20+

0

0070-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

1000

Snapper 84003173

ARBOR ASSEMBLY

$96.99

$

In Stock, Qty 12

0

1000-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1000-10

Snapper 1735573YP

HOUSING, w/Lube Fittting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 11

0

1000-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1000-30

Snapper 1760276YP

SHAFT, Spindle

$27.99

$

In Stock, Qty 11

0

1000-40

Snapper 1735328YP

SPACER, Bearing

$6.49

$

In Stock, Qty 20+

0

1000-50

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 20+

0

1000-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 1757365YP

SPACER, Pulley
(Superseded to 706364)

$28.99

$

Usually ships in 2-12 days

0

0090

Snapper 704146

SCREW, Taptite, 5/16-18 X 1"

$3.99

$

In Stock, Qty 20+

0

0100

Snapper 703179

PUSHNUT, 1/2

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper 2820676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$4.49

$

In Stock, Qty 13

0

0120

Snapper 7104640YP

ROD, Pivot

$28.99

$

In Stock, only 1 left!

0

0130

Snapper 7104733YP

DEFLECTOR

$87.99

$

Usually ships in 2-12 days

0

0140

Snapper 703793

NUT, Lock, Flange, 3/8-16

$4.49

$

In Stock, Qty 9

0

0150

Snapper 703815

BOLT, Carriage, 3/8-16 X 1"

$4.49

$

In Stock, Qty 5

0

0160

Snapper 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$

$

Not available

0170

Snapper 1926110SM

CAPSCREW, Hex Head, 7/16-14 X 2 3/4, G5

$6.49

$

Usually ships in 2-12 days

0

0180

Snapper 1757683BMYP

COVER, Pulley, RH

$62.99

$

Usually ships in 2-12 days

0

0190

Snapper 1757684BMYP

COVER, Pulley, LH

$61.99

$

Usually ships in 2-12 days

0

0200

Snapper 703985

SCREW, Taptite, 5/16-18 X 1/2

$4.49

$

In Stock, Qty 15

0

0220

Snapper 1757731BMYP

BRACKET, Deflector Prop

$13.99

$

Usually ships in 2-12 days

0

0230

Snapper 1756247YP

ADAPTER, Washout Port

$6.49

$

In Stock, only 1 left!

0

0240

Snapper 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, Qty 5

0

0250

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0250

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

--

Snapper 1687771

KIT, Blade, Set of 3
(Superseded to 1687865)

Note: (Optional Accessory - Not Included)

$70.99

$

Usually ships in 2-12 days

0
