NXT 300 (2691249-00) - Snapper LT125 Series 46" Lawn Tractor Electrical Group Parts Diagram

LT125 Series 46" Lawn Tractor

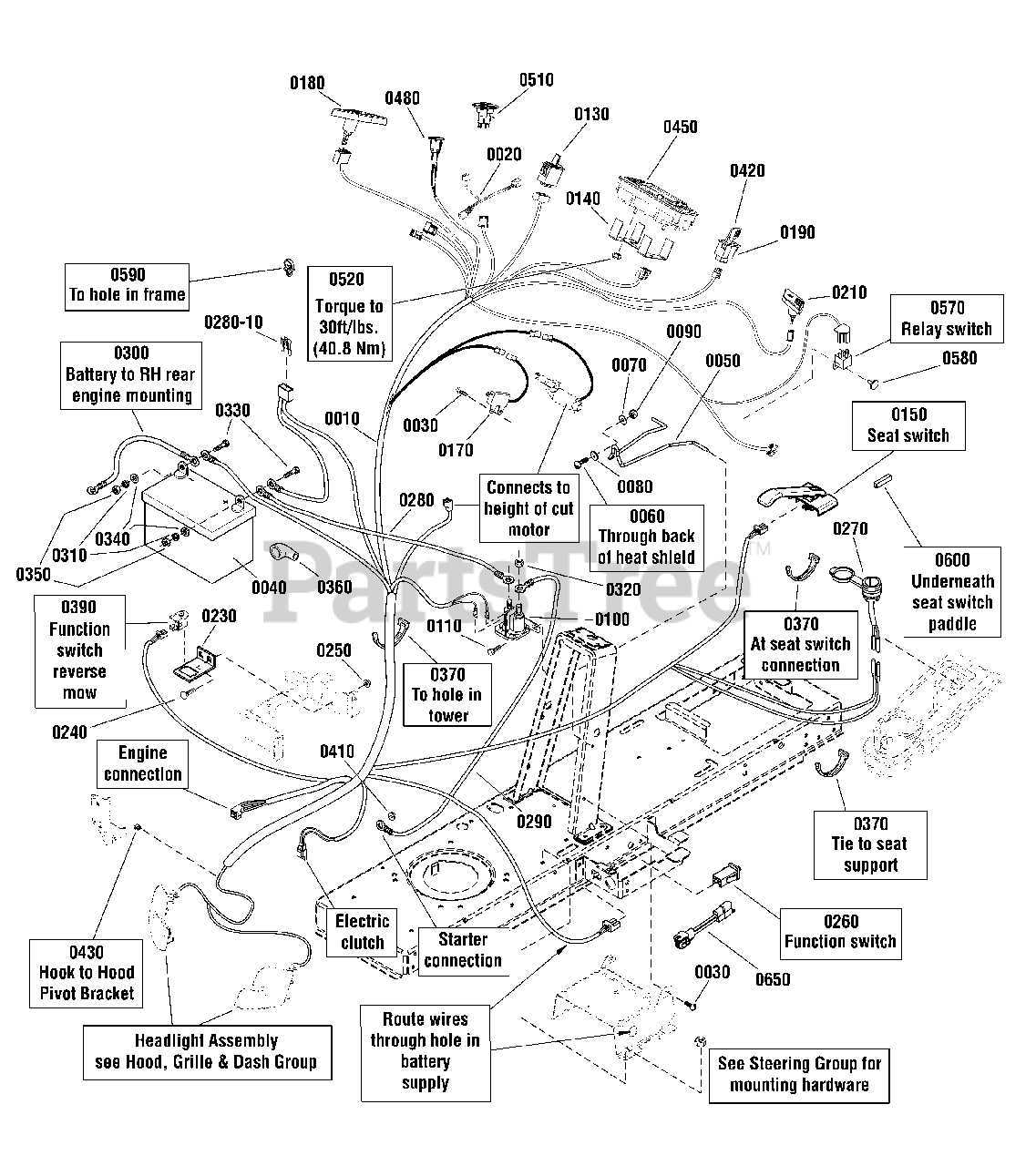

Electrical Group Parts Diagram

  • Title

0010

Snapper 1738984YP

WIRING HARNESS

$276.99

$

Usually ships in 2-12 days

0

0020

Snapper 1758132YP

KEY SWITCH, Wire

$54.99

$

Usually ships in 2-12 days

0

0030

Snapper 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0040

BATTERY, 7U1L

Note: (Not a serviceable part)

$

$

Not available

0050

Snapper 1730007SM

HOLD DOWN, Battery, 1/4 Dia.

$27.99

$

Usually ships in 2-12 days

0

0060

Snapper 1931318SM

BOLT, Carriage, 1/4-20 x 7/8, G5

$4.49

$

In Stock, only 1 left!

0

0070

Snapper 1960353SM

WASHER, 1/4 x 27/32 OD
(Superseded to 703229)

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 1960518SM

PUSHNUT, 1/4 x 1/2 OD
(Superseded to 703826)

$3.49

$

In Stock, Qty 13

0

0090

Snapper 1920397SM

NUT, Hex Lock, ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1728963SM

SOLENOID, 12V, Trombetta, 5/16-24 Studs
(Superseded to 1755381YP)

$24.99

$

Usually ships in 2-12 days

0

0110

Snapper 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0140

Snapper 1738961AYP

BRACKET, Instrument Panel Mount

$14.99

$

Usually ships in 2-12 days

0

0130

Snapper 1738381YP

SWITCH, Height of Cut

$38.99

$

In Stock, only 2 left!

0

0150

Snapper 1738015YP

SWITCH, Seat (NC)

$43.99

$

Usually ships in 2-12 days

0

0170

Snapper 1738724YP

SENSOR, Electric, Height Of Cut

$64.99

$

Usually ships in 2-12 days

0

0180

Snapper 1738982YP

SWITCH, PTO

$43.99

$

In Stock, only 1 left!

0

0190

Snapper 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0210

Snapper 1738983YP

SWITCH, Light

$39.99

$

Usually ships in 2-12 days

0

0230

Snapper 1728026SM

SUPPORT, RMO Switch (Reverse Pedal)
(Superseded to 1728026ASM)

$13.99

$

Usually ships in 2-12 days

0

0240

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0250

Snapper 1931277SM

NUT, Hex Flange,Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0260

Snapper 1732006SM

SWITCH, Push Button, Brake Pedal (NO/NC, Gray)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0270

Snapper 7073090SM

POWER OUTLET, 12 Volt, DC

$23.99

$

Usually ships in 2-12 days

0

0280

Snapper 1716549SM

CABLE, Battery Positive, Red (#6 x 10" Long, 1/4" & 5/16" Ring Terminals)
(Superseded to 1752685YP)

$11.99

$

Usually ships in 2-12 days

0

0280-10

* FUSE, 20 Amp

Note: Note* See your local hardware store for replacement fuses.

$

$

Not available

0290

Snapper 1721830SM

CABLE, Starter, Red (#6 x 25" Long, 1/4" & 3/8" Ring Terminals)

$19.99

$

In Stock, only 1 left!

0

0300

Snapper 1713163SM

CABLE, Battery Negative, Black (#6 x 26" Long, 1/4" & 3/8" Ring Terminals)

$24.99

$

Usually ships in 2-12 days

0

0310

Snapper 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

0320

Snapper 2860750SM

NUT, Hex Lock, KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

0340

Snapper 2821319SM

WASHER, 1/4 x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

0350

Snapper 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

0360

Snapper 1677296SM

BOOT, Insulator, Battery Termnal, Red

$6.49

$

In Stock, only 2 left!

0

0370

Snapper 2825094YP

TIE, Self Locking, 7-5/16 Long

$

$

Not available

0380

TAG, Battery Charging Warranty

Note: (Not shown, not a serviceable part)

$

$

Not available

0390

Snapper 1732004SM

SWITCH, Push Button, RMO Reverse Pedal (NO, Black)

$8.99

$

In Stock, Qty 6

0

0410

Snapper 1960294SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

0420

Snapper 1726557SM

KEY, RMO Module Plastic

$5.49

$

In Stock, Qty 20+

0

0430

Snapper 2172434SM

CLIP, Wire

$4.99

$

In Stock, only 1 left!

0

0450

Snapper 1738021YP

PANEL, Instrument

$396.99

$

Usually ships in 2-12 days

0

0480

Snapper 1753240YP

PLUG, Starter Insert

$4.49

$

Usually ships in 2-12 days

0

0510

Snapper 1739277YP

SWITCH ASSEMBLY, Push Button Start
(Superseded to 1753667YP)

$43.99

$

Usually ships in 2-12 days

0

0520

Snapper 67885GS

NUT, Nyock, M6-1.0

$6.99

$

In Stock, only 1 left!

0

0570

Snapper 1726829SM

RELAY, Single Pole, Double Throw

$15.99

$

In Stock, only 1 left!

0

0580

Snapper 1704351SM

FASTENER, Panel, 3/4 0D x 11/16

$4.99

$

Usually ships in 2-12 days

0

0590

Snapper 1730268SM

CLIP, Hose, 1/2 Dia., Push In

$3.99

$

Usually ships in 2-12 days

0

0600

Snapper 1750296YP

FOAM STRIP

$3.99

$

Usually ships in 2-12 days

0

0650

Snapper 1734025SM

WIRES & CONNECTOR ASSEMBLY

$14.99

$

Usually ships in 2-12 days

0
