NZM 19480 KWV (7084738) - Snapper 48" Zero-Turn Mower, 19hp Kawasaki SEAT ASSEMBLY (SERIES 0) Parts Diagram

48" Zero-Turn Mower, 19hp Kawasaki

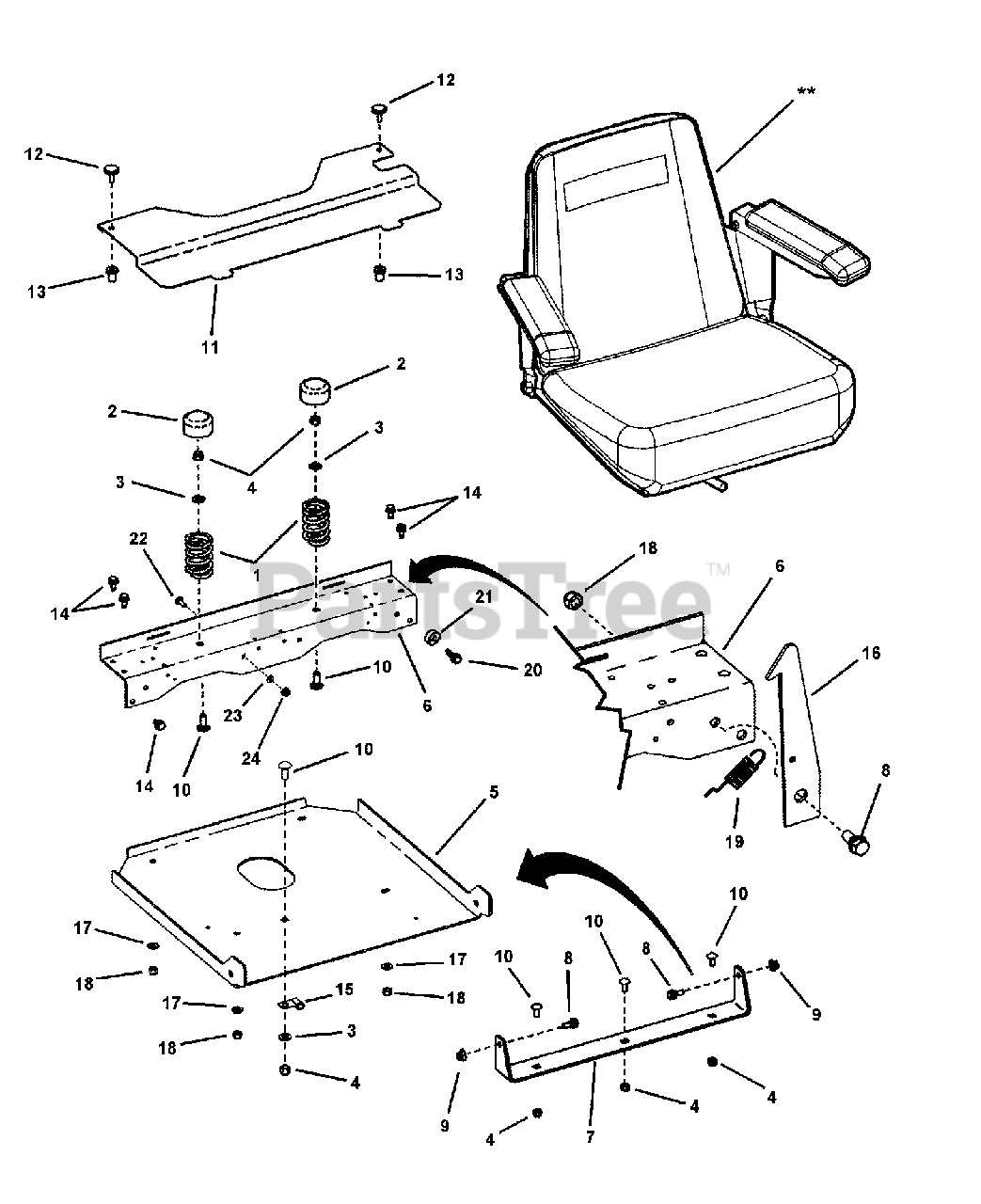

SEAT ASSEMBLY (SERIES 0) Parts Diagram

  • Title

--

Snapper Pro 7074771

SEAT ASSY (Milsco p/n S673074AB; order parts from 414-410-3942)

Note: (Incl. angle brackets, seat pan, cushions, flip-up armrests, adjusters w/lock & seat switch)

$

$

Not available

1

Snapper Pro 7074218

SPRING, Compression- Seat Support
(Superseded to 7074218SM)

$10.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7074328

COVER, Seat Support Spring
(Superseded to 7074328YP)

$

$

Not available

3

Snapper Pro 7090122

WASHER, 3/8" Flat

$

$

Not available

4

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

5

Snapper Pro 7074674

SEAT PAN

$

$

Not available

6

Snapper Pro 7074673

CROSSMEMBER, Seat

$

$

Not available

7

Snapper Pro 7074675

PIVOT BRACKET, Seat Hinge

$

$

Not available

8

Snapper Pro 7015761

SHOULDER BOLT, 5/16-18

$5.49

$

In Stock, Qty 5

0

9

Snapper Pro 7090951

NUT, 5/16-18 Large Flange Hex Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

10

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage GR5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

11

Snapper Pro 7074740

GUARD, Fan

$

$

Not available

12

Snapper Pro 7023341

KNOB, 1/4-20 x 3/4" Thread

$7.99

$

In Stock, only 4 left!

0

13

Snapper Pro 7091909

WELL-NUT, 1/4-20 x 53/64"
(Superseded to 7091909YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

15

Snapper Pro 7035638

CLIP, Open J 3/8 Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 7075304

LATCH, Seat
(Superseded to 7075304YP)

$7.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7090188

WASHER, 5/16" Flat

$

$

Not available

18

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7026292

SPRING, Extension
(Superseded to 7026292YP)

$11.99

$

In Stock, only 4 left!

0

20

Snapper Pro 7091541

SCREW, 5/16-18 x 3/4" Hex Washer self-Tap

$

$

Not available

21

Snapper Pro 7028620

SPACER, .340 I.D.x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, GR5
(Superseded to 7091530SM)

$3.99

$

In Stock, Qty 5

0

23

Snapper Pro 7012485

RETAINER, 1/4" Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 5

0

24

Snapper Pro 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0
