NZM 19482 KWV (85673) - Snapper 48" Zero-Turn Mower, 19hp Kawasaki HOSE ASSEMBLY (48" & 52" DECK) PT.1 Parts Diagram

48" Zero-Turn Mower, 19hp Kawasaki

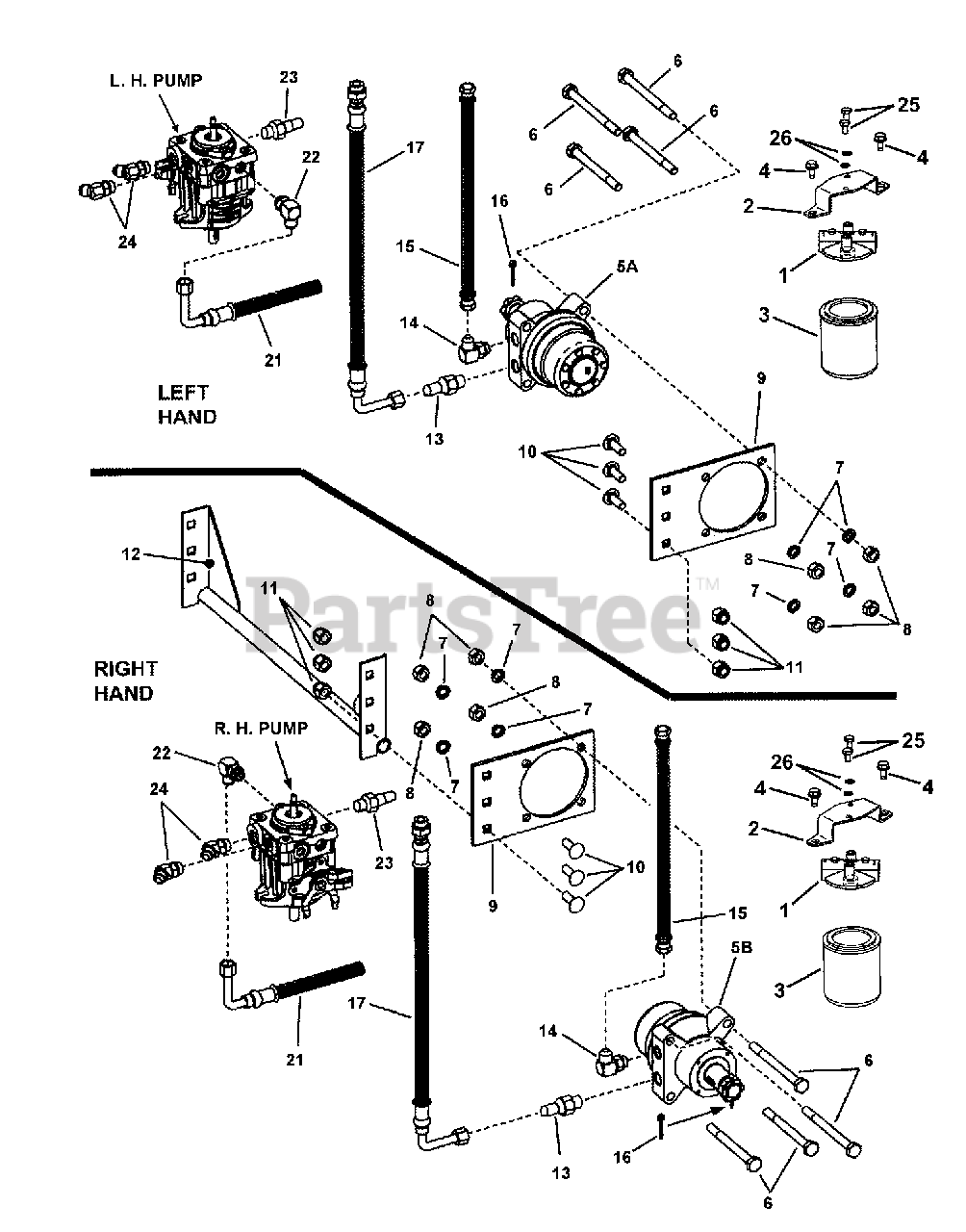

HOSE ASSEMBLY (48" & 52" DECK) PT.1 Parts Diagram

  • Title

1

Snapper 5023096

FILTER HEAD
(Superseded to 5023096SM)

$54.99

$

Usually ships in 2-12 days

0

2

Snapper 7075919

BRACKET, Filter
(Superseded to 7075919YP)

$21.99

$

Usually ships in 2-12 days

0

3

Snapper 1719168

FILTER, OIL
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 20+

0

4

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

5A

Snapper 7075637

MOTOR, Hydraulic, Left Hand
(Superseded to 7075637YP)

Note: Includes Castle Nut & #502 Woodruff Key, 5/16 x 1"

$

$

Not available

5B

Snapper 7075638

MOTOR, Hydraulic, Right Hand
(Superseded to 7075638YP)

Note: Includes Castle Nut & #502 Woodruff Key, 5/16 x 1"

$

$

Not available

6

Snapper 7092087

BOLT, 1/2-13 x 6" Hex Head Cap GR 5
(Superseded to 7092087YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7091322

WASHER, 1/2" Split Lock
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$8.49

$

Usually ships in 2-12 days

0

9

Snapper 7073996

MOUNTING PLATE, Hydro Motor
(Superseded to 7073996YP)

$76.99

$

Usually ships in 2-12 days

0

10

Snapper 7090768

BOLT, 1/2-13 x 1-1/2" Square Neck Carriage, GR 5
(Superseded to 7090768YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 5

0

12

Snapper 7059091

WELDMENT, Rear Crossbrace
(Superseded to 7059091YP)

$

$

Not available

13

Snapper 7075058

CONNECTOR, Straight Hydraulic (Parker # 8-10 F5OLO-S)
(Superseded to 7075058YP)

$14.99

$

Usually ships in 2-12 days

0

14

Snapper 7075059

CONNECTOR, 90 Degree Hydraulic (Parker # 8-10 C5OLO-S)
(Superseded to 7075059YP)

$41.99

$

Usually ships in 2-12 days

0

15

Snapper 7075049

HOSE, 13-3/4" Hydraulic (Parker # F436BKJCJC080808-13-75)
(Superseded to 7075049YP)

$116.99

$

Usually ships in 2-12 days

0

16

Snapper 7091809

COTTER PIN, 1/8 x 1-1/2"
(Superseded to 7091809YP)

Note: Was 90297

$4.49

$

In Stock, only 2 left!

0

17

Snapper 7075051

HOSE, 17-1/2" Hydraulic (Parker # F436BKJCJ5080808-17.5)
(Superseded to 7075051YP)

$132.99

$

Usually ships in 2-12 days

0

21

Snapper 7075054

HOSE, 6-1/2" (Parker # R836BKJ9NR080008-6.5)
(Superseded to 7075054YP)

$

$

Not available

22

Snapper 7075056

CONNECTOR, 90 Degree Hydraulic (Parker # 8-6 C5OLO-S)
(Superseded to 7075056YP)

$

$

Not available

23

Snapper 7075057

CONNECTOR, Straight Hydraulic (Parker # 8-6 F5OLO-S)
(Superseded to 7075057YP)

$12.99

$

Usually ships in 2-12 days

0

24

Snapper 7075055

CONNECTOR, 45 Degree Hydraulic (Parker # V5OLO-S)
(Superseded to 7075055YP)

$

$

Not available

25

Snapper 7090071

SCREW, 1/4-20 x 1/2" Hex Head Cap, GR 5
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

26

Snapper 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0
